Ethernet/Data Server Board Operators manual Page 31

Operators manual

Page of 429

/ 429

B-63354EN/04 II. SPECIFICATION 1.ETHERNET FUNCTIONS

- -17

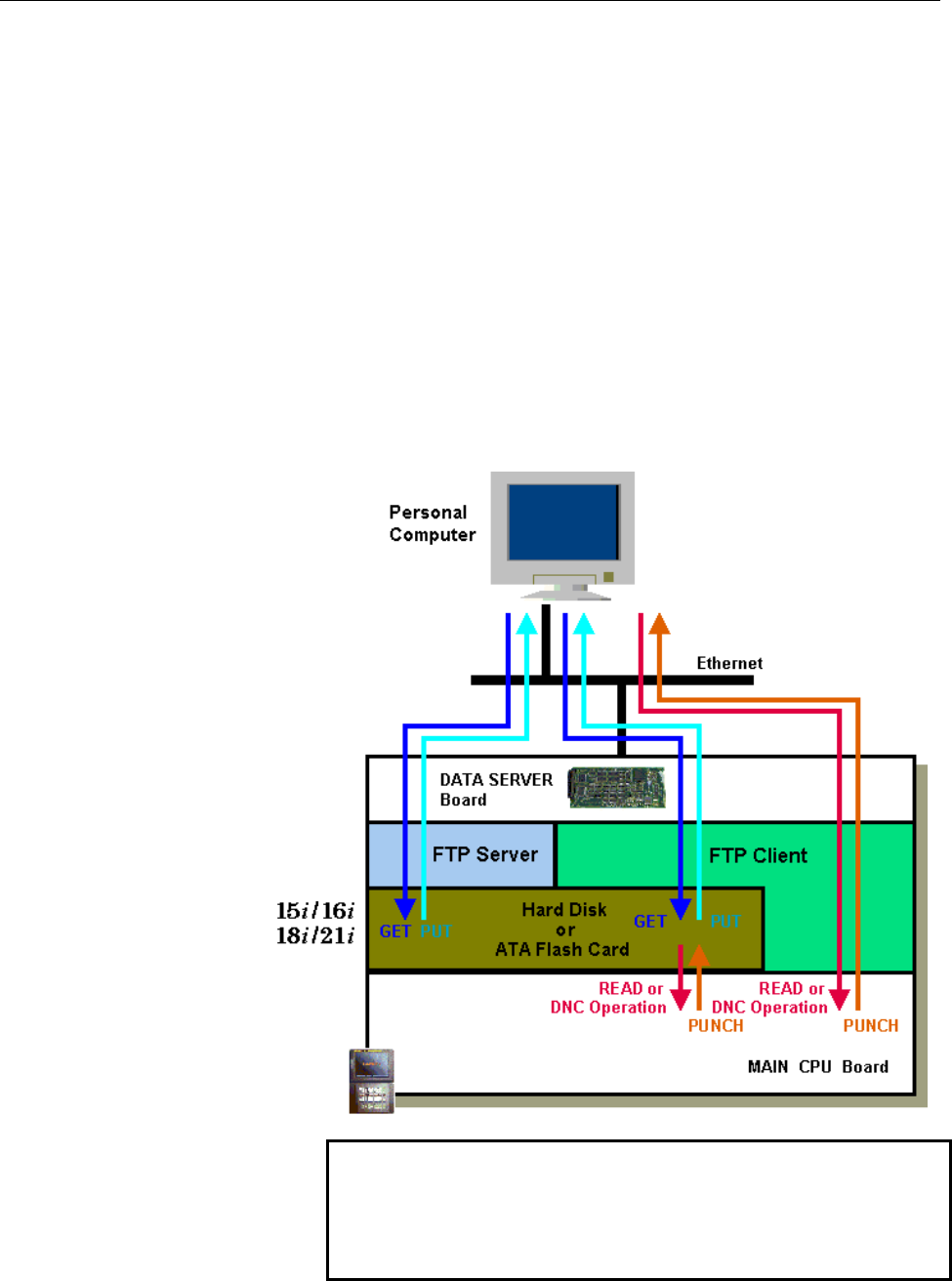

Operation [Hard disk on the data server board ↔

↔↔

↔ Tape memory]

The following operations can be performed using the NC:

• DNC operation

• DNC operation by calling a subprogram (M198)

Operation [Personal computer ↔

↔↔

↔ Tape memory]

The following operations can be performed using the NC:

• DNC operation

• DNC operation by calling the subprogram (M198)

Hard disk management

The following hard disk management can be performed, using the NC:

• Formatting of the hard disk

• Checking of the hard disk

• Displaying a list of files on the hard disk

NOTE

The file names on the hard disk in the data server

conform to the 8.3 format (eight-character name and

three-character extension). When specifying these

file names, make sure that they are in the 8.3 format.
