Ethernet/Data Server Board Operators manual Page 325

Operators manual
B-63354EN/04 V. CONNECTION 3.INSTALLATION
- -311

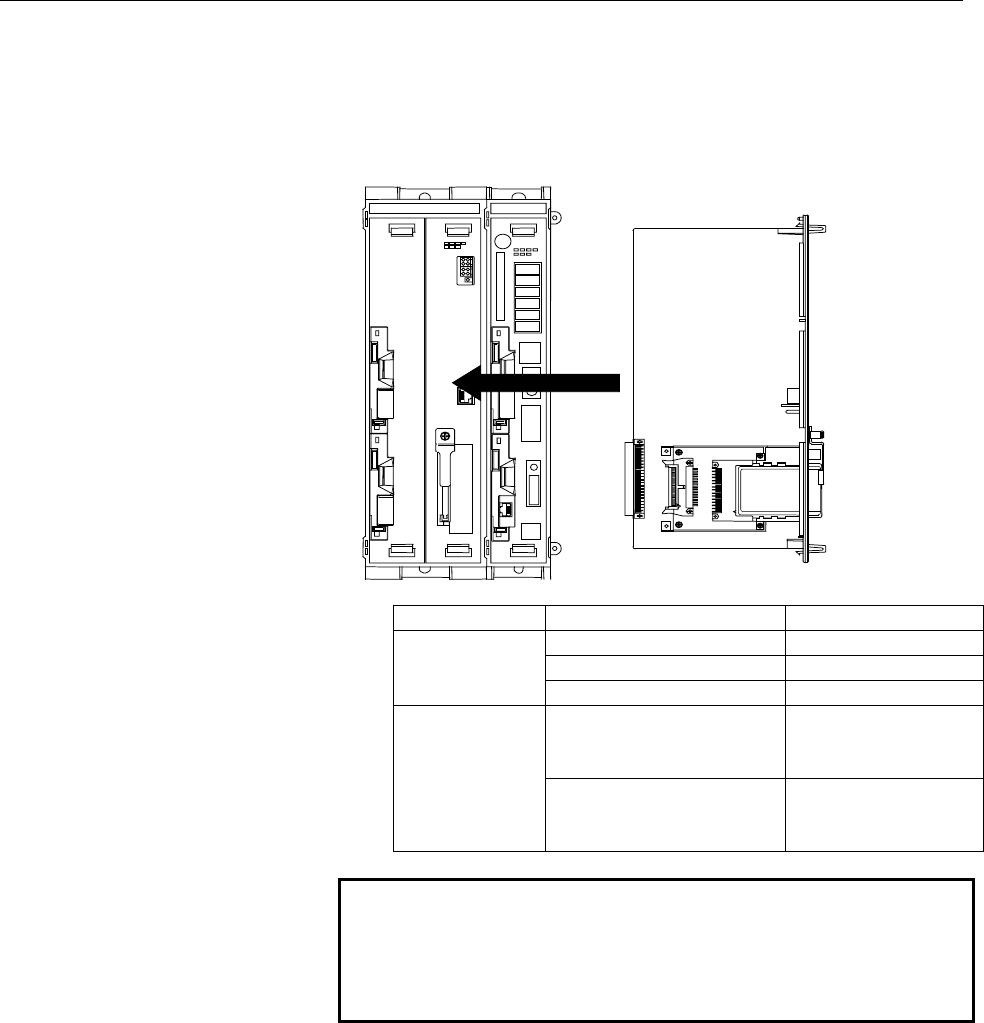

2) Installing an ATA data server board
The ATA data server board can be installed only in "slot 2,"
located in the center of the three-slot basic unit. It cannot be
installed in any other slot. Also, it cannot be installed in the one-
slot basic unit.
Drawing number Remarks
A16B-3200-0350 RISC installed
A16B-3200-0352 RISC not installed
Board drawing
number
A20B-2100-0560 ATA Card Adapter
A02B-0265-J152 RISC installed
Including ATA Card
Adapter, flat cable
Order specification
A02B-0265-J145 RISC not installed
Including ATA Card
Adapter, flat cable
NOTE
1 Only an ATA flash card can be installed on the data
server board for the Stand-alone type. An hard disk
drive unit cannot be installed.
2 Use the ATA flash card recommended by FANUC.
CD38M
CNH6L
