Ethernet/Data Server Board Operators manual Page 79

Operators manual

Page of 429

/ 429

B-63354EN/04 III. SETTING 4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i

- -65

Entering lowercase characters

The following describes the method for entering lowercase characters.

Procedure

1 Place the CNC in MDI mode.

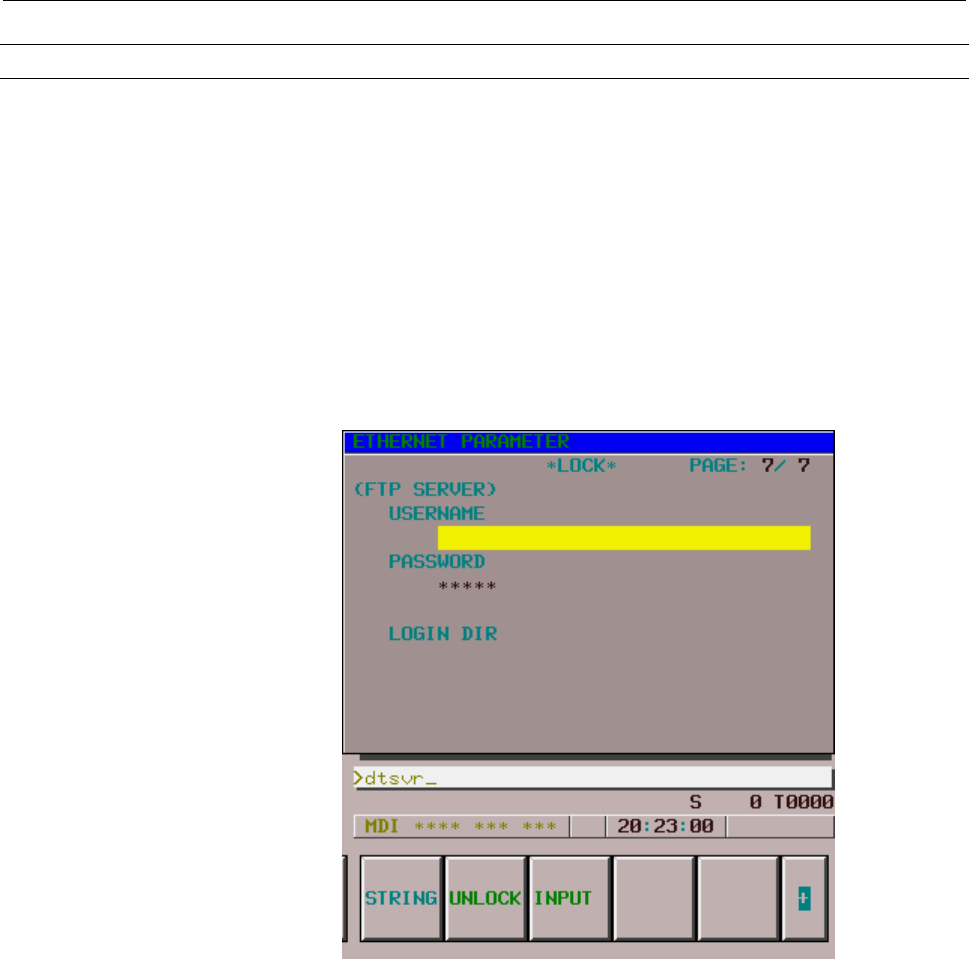

2 Display the "Ethernet Parameter" screen.

3 Position the cursor to the desired item by using the cursor

movement keys.

4 When soft key [LOCK] is displayed, the characters entered using

the MDI keys are in uppercase. To enter lowercase characters,

press soft key [LOCK]. Soft key [LOCK] then changes to

[UNLOCK]. In addition, "LOCK" is displayed on the screen.

5 Then, all the characters entered using MDI keys "A" to "Z" will be

in lowercase.

6 To enter uppercase characters, press soft key [UNLOCK].
