B-63354EN/04 IV. OPERATION 4.16i/18i DATA SERVER FUNCTIONS
- -195
4.11.2 Formatting the Hard Disk
Format (initialize) the hard disk.
Procedure
1 Place the CNC in MDI mode.
2 Press function key
SYSTEM
.
3 Press the continuation menu key at the right end of the soft key
menu.
4 When you press soft key [DS-MIN], the Maintenance of Data
Server screen appears.
5 Press soft key [MIN].
6 Press soft key [FORMAT].
7 Press soft key [EXEC].

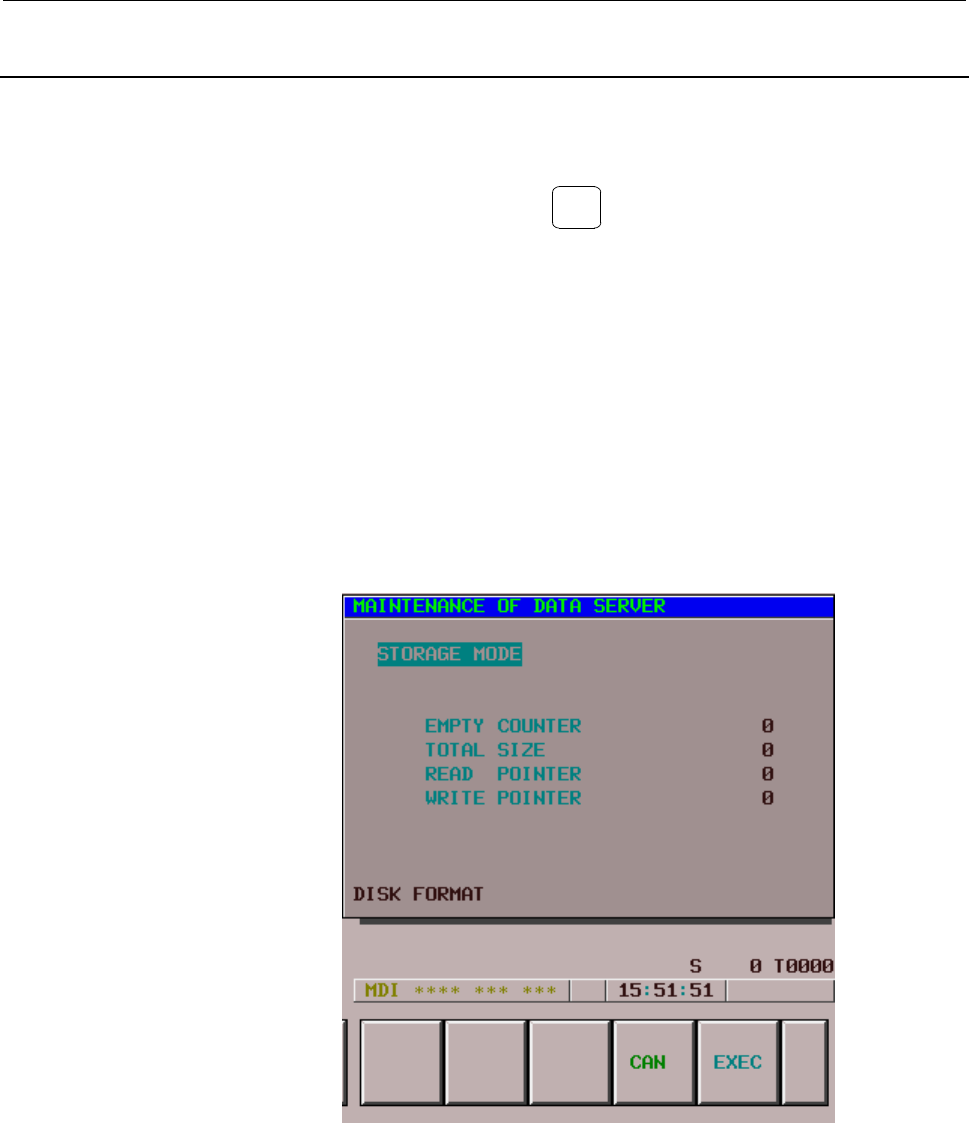

8 The message "DISK FORMAT" appears at the bottom of the
screen. Press soft key [EXEC] again.
9 During formatting, "DISK FORMAT" blinks at the bottom of the
screen.
10 Upon the completion of formatting, the blinking "DISK
FORMAT" message disappears.
