Ethernet/Data Server Board Operators manual Page 362

Operators manual

Page of 429

/ 429

1.Series 16i

i/18i

i/21i

i-A/PMi

i MAINTENENCE INFORMATION VI. MAINTENANCE B-63354EN/04

- -348

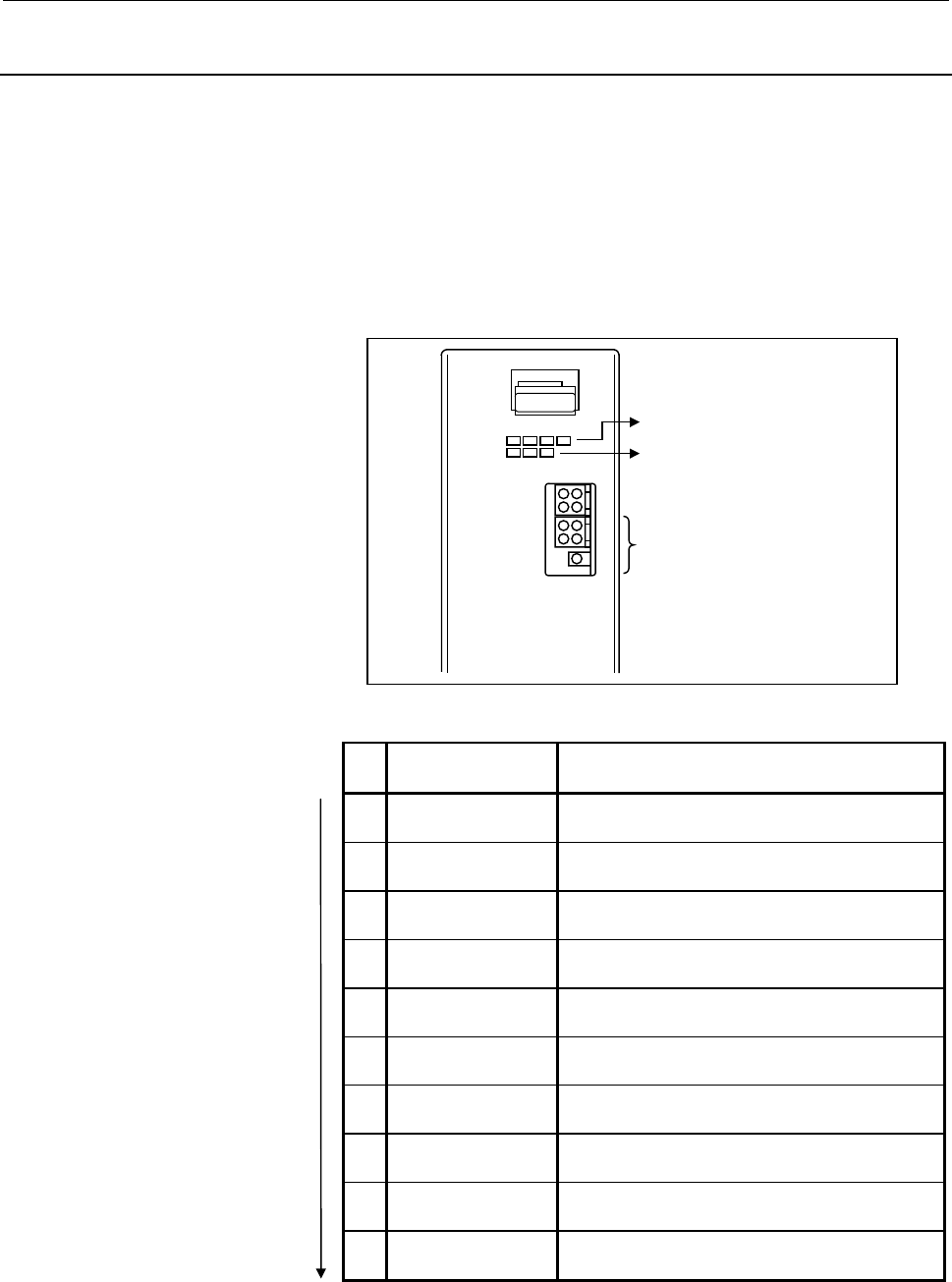

1.3.2 Description of LED Indication

The 16i/18i/21i-A Stand-alone type data server board incorporates the

following LEDs: Four green STATUS LEDs and three red ALARM

LEDs (for both the data server board and the RISC option board) for

indicating the status. Four green LEDs and one red LED for indicating

the communication status. The figure below shows the locations of

these LEDs. The table below explains the LED lighting states.

In the following explanations, the LED lighting states are expressed as

follows:

¡: Off l: On ¶: Blinking à: Don't care

LED lighting sequence at power on

No.

LED indication

(L1 through L4)

Data server board state

¡¡

Power off

Initial state after power on

¡l

MPU initialized.

¡l

Firmware downloaded.

¡l

¡¡

Control migration to OS

l¡

OS PHASE1

¡¡

OS PHASE2

l¡

¡l

OS PHASE3

¡¡

¡l

OS PHASE4

¶¡

¡¡

Startup completed.

The system enters the No.10 status when the Ethernet board starts

normally. This status is maintained until an error occurs.

STATUS

12 34

For the status of the data serve

board

For the communication status

ALARM

COL

For the status of the RISC option

board

For the RISC option board and the

data server board
