3.INSTALLATION V. CONNECTION B-63354EN/04
- -312
3.2.2 Installing an ATA flash card
This section need be referenced only when the data server board is
used.
You can obtain an ATA flash card to be used as the external memory
unit of the data server board from the machine tool builder. The table
below lists the ATA flash cards that can be used.
Manufacturer Product number Capacity
HB288096A5 96MB
HB288160A5 160MB
HB288320A5 320MB
HB288640A5 640MB
Hitachi, Ltd.
HB2881000A5 1GB
SDP3B-220-390 220MB
SDP3B-280-390 280MB
SDP3B-350-390 350MB
San Disk
SDP3B-440-390 440MB

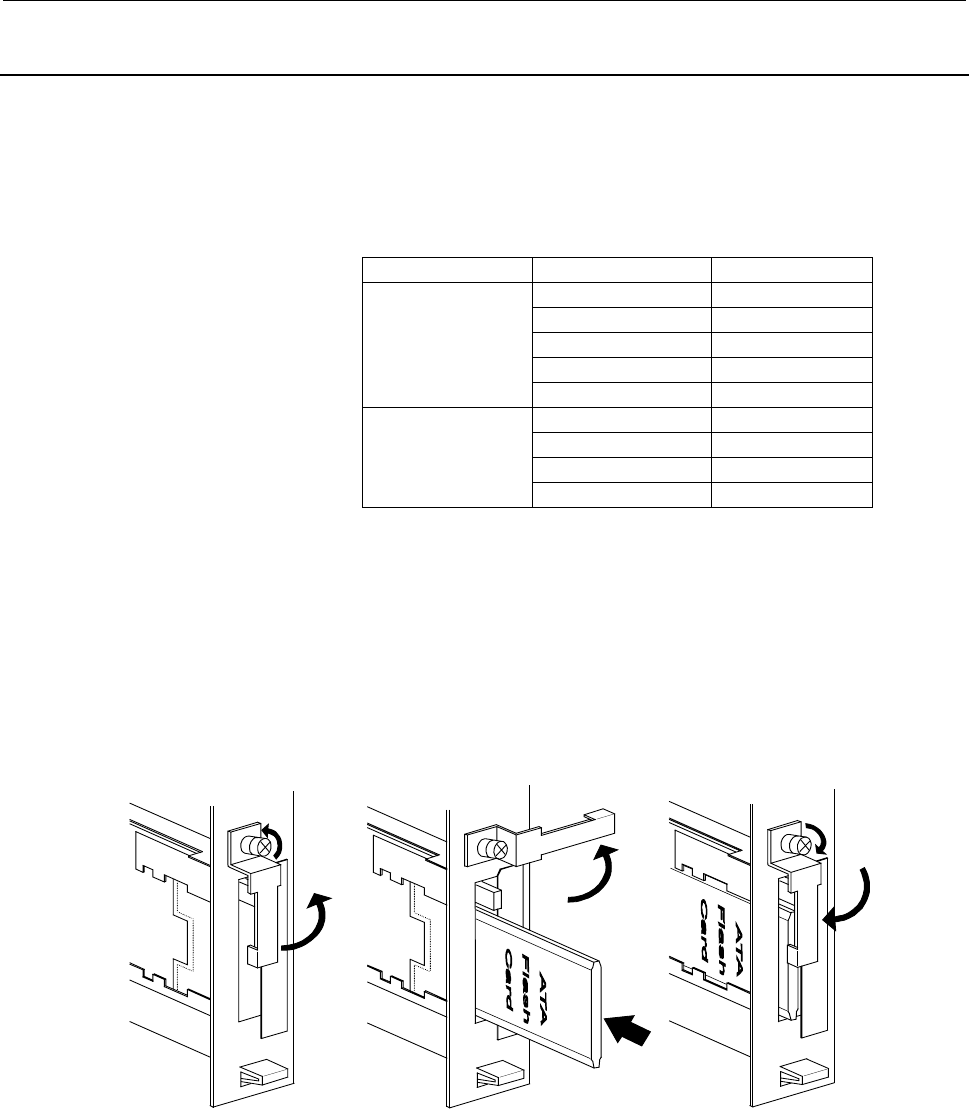

[Installing an ATA flash card]
<1> Loosen the setscrew.
<2> Move the retainer, so that the ATA flash card can be inserted into
the connector.
<3> Insert the ATA flash card into the connector.
<4> Return the retainer to its original position and position it over the
edge of the ATA flash card.
<5> Tighten the setscrew to secure the ATA flash card.
<1>
<2>
<2>
<3>
<4>
<5>
