B-63354EN/04 IV. OPERATION 4.16i/18i DATA SERVER FUNCTIONS

- -191

4.10 FTP SERVER FUNCTIONS

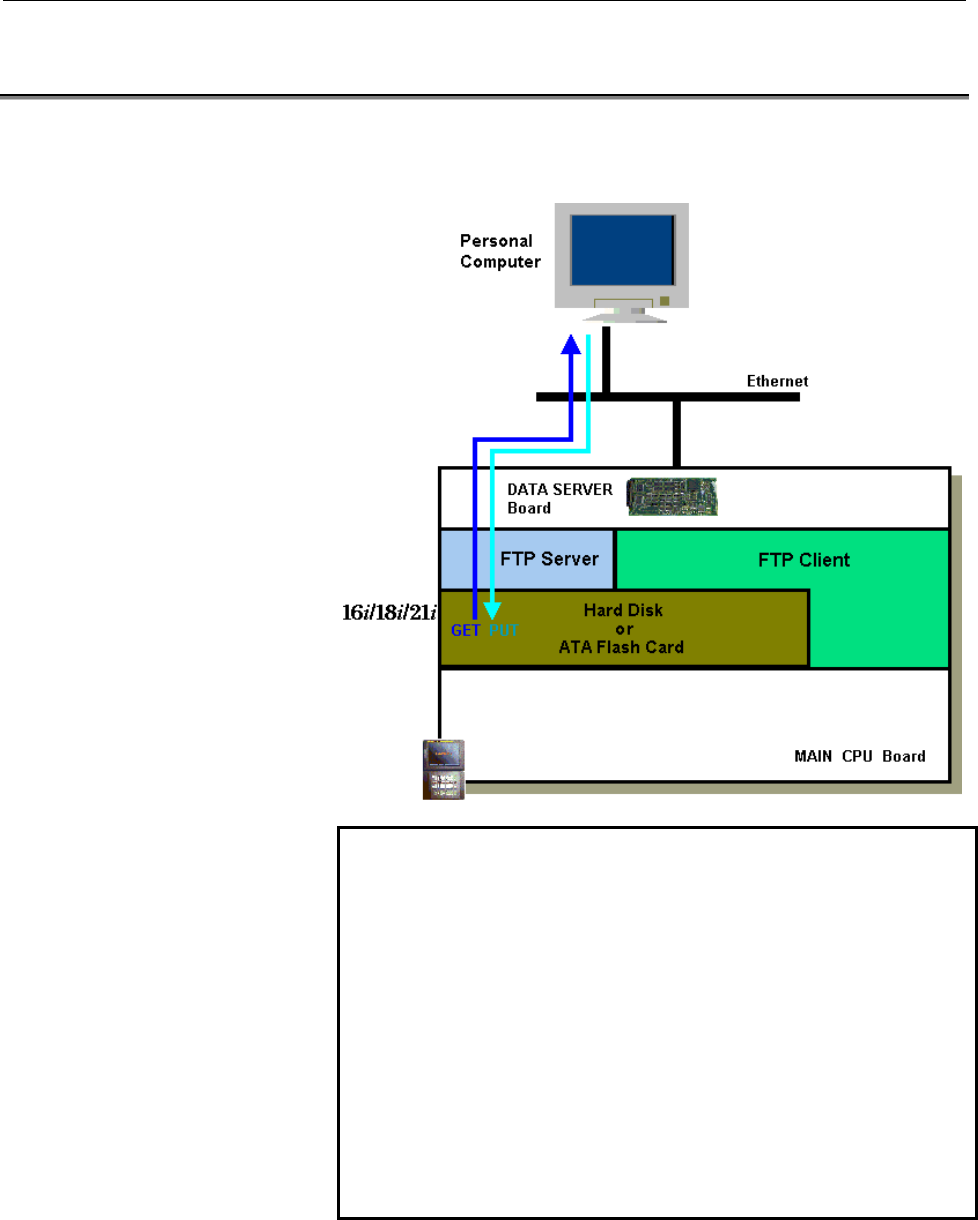

Communication is possible with the FTP client that runs on the host

computer (personal computer).

NOTE

1 Only one FTP client can be connected to the FTP

server. If an attempt is made to connect two or more

FTP clients to the FTP server, the second and

subsequent FTP clients enter the connection wait

status. Two or more of the FTP clients having a GUI

attempt to connect to the FTP server; however, such

FTP clients cannot be used.

2 If the FTP client specifies a non-8.3-format file for

registration with the FTP server, it is registered using

an 8.3-format file name obtained from automatic

conversion. See Subsection 4.1.5, "Hard Disk File

Names," for explanations about the rules for

converting file names to 8.3-format file names.
