B-63354EN/04 IV. OPERATION 4.16i/18i DATA SERVER FUNCTIONS
- -199
4.12 ETHERNET ERROR MESSAGE SCREEN
If an error related to the data server function occurs, an error message
appears on the error message screen dedicated to the Ethernet
functions.
Display
Procedure
1 Press function key
MESSAGE
.
2 Press the continuation menu key at the right end of the soft key
menu.

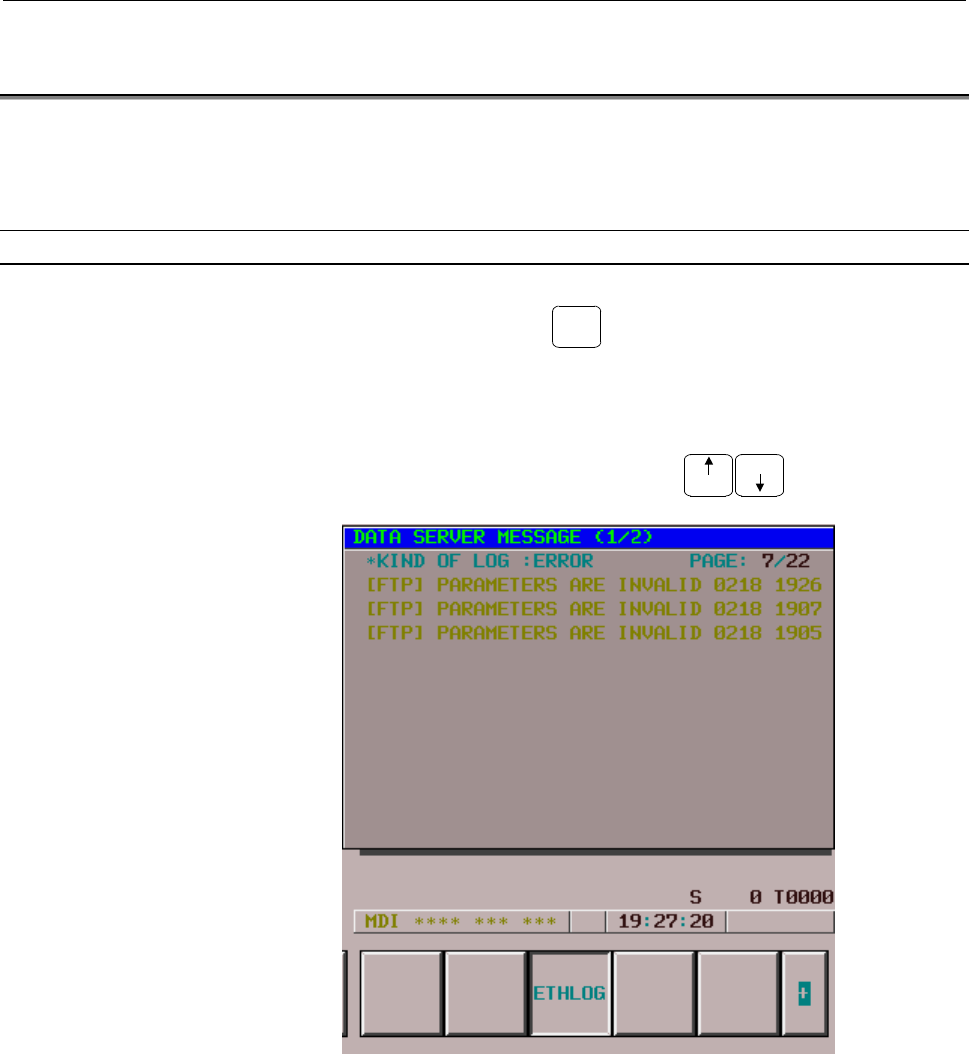

3 When you press soft key [ETHLOG], the Ethernet Error Message
screen appears.
4 Select the desired page using the
PAGE
PAGE
.
[Reference]
The latest error message is displayed at the top of the screen. The
date and time at which the error occurred are displayed at the right
end of the error message. The date and time are displayed in
mmdd hhMM (mm : month, dd : day, hh : hour, MM : minute)
format.
Previous page
Next page
