4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i III. SETTING B-63354EN/04

- -74

924 DNC1/Ethernet or FOCAS1/Ethernet wait time

[Data type] Byte

[Unit of data] ms

[Valid data range] 0 to 255

Specifies the wait time (in ms units) for the DNC1/Ethernet or

FOCAS1/Ethernet service when it is used together with the data server

function.

If any value between 0 and 2 is specified, a wait time of 2 ms is

assumed.

0931 Special character (No. 1)

0932 Special character (No. 2)

0933 Special character (No. 3)

0934 Special character (No. 4)

0935 Special character (No. 5)

[Data type] Byte

[Unit of data] Bytes

[Valid data range] 32 to 126

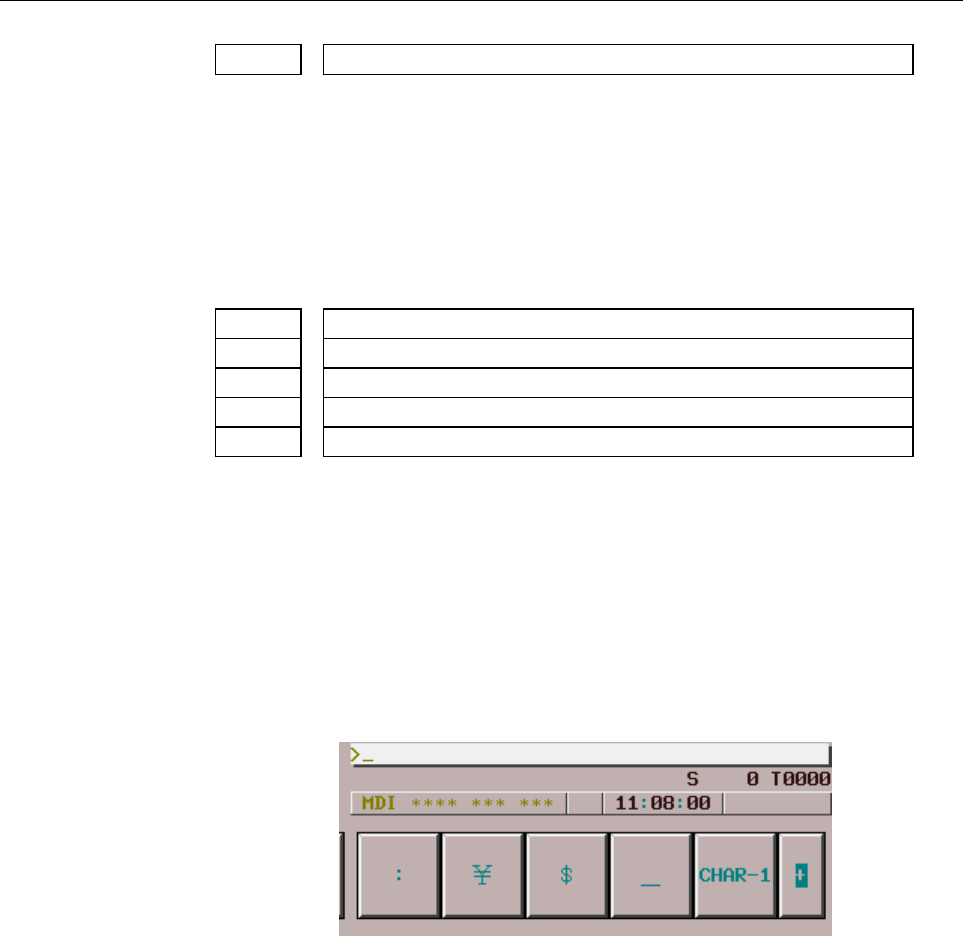

NC parameters Nos. 931 to 935 enable characters that cannot be

entered using MDI keys to be entered using soft keys.

Enter non-zero numbers for these parameters. [CHAR-1] to [CHAR-5]

are displayed as the special character input soft keys.

Example: When "33" is entered for parameter No. 931, pressing soft

key [CHAR-1] causes a "!" to be entered.
