3.INSTALLATION V. CONNECTION B-63354EN/04

- -310

3.2 Stand-Alone type Series 16i

i/18i

i/21i

i-A, Power Mate i

This section provides information on installing the Ethernet board and

data server board in Stand-alone type Series 16i/18i/21i-A and power

Mate i.

NOTE

In the Power Mate i series, only the Ethernet board

can be connected.

3.2.1 Installing an interface board

Since the Ethernet board is shaped differently from data server board,

both these boards can be installed only in certain option slots.

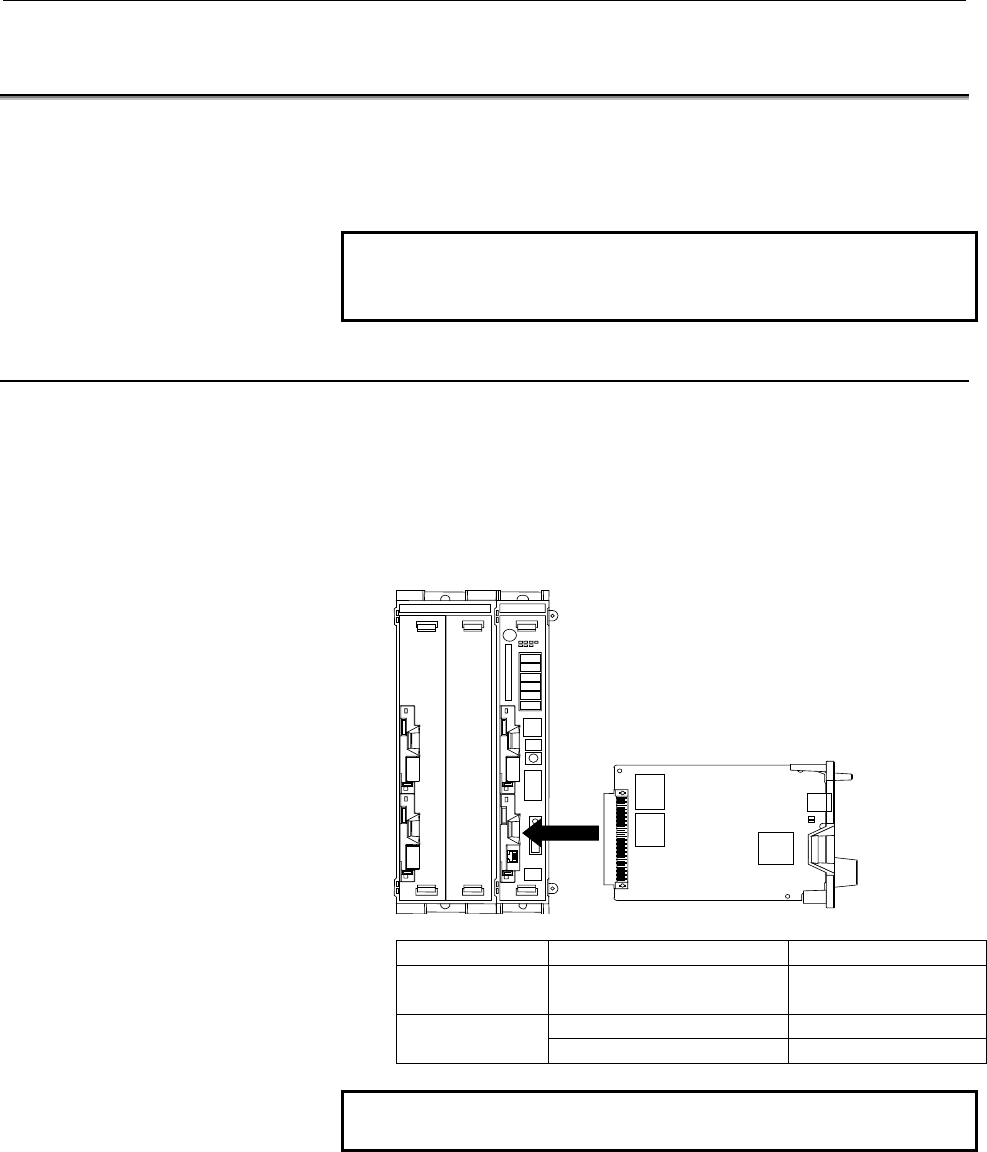

1) Installing an Ethernet board

The Ethernet board can be installed in a mini slot of the one-slot or

three-slot basic unit. It can be installed in any mini slot.

CD38L

Drawing number Remarks

Board drawing

number

A20B-8100-0450 IDE not installed

A02B-0265-J291

Series 16i/18i/21i -A

Order specification

A02B-0259-J230

Power Mate i

NOTE

This board cannot use the data server function.
