4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04
- -188
4.9 CONNECT HOST SCREEN

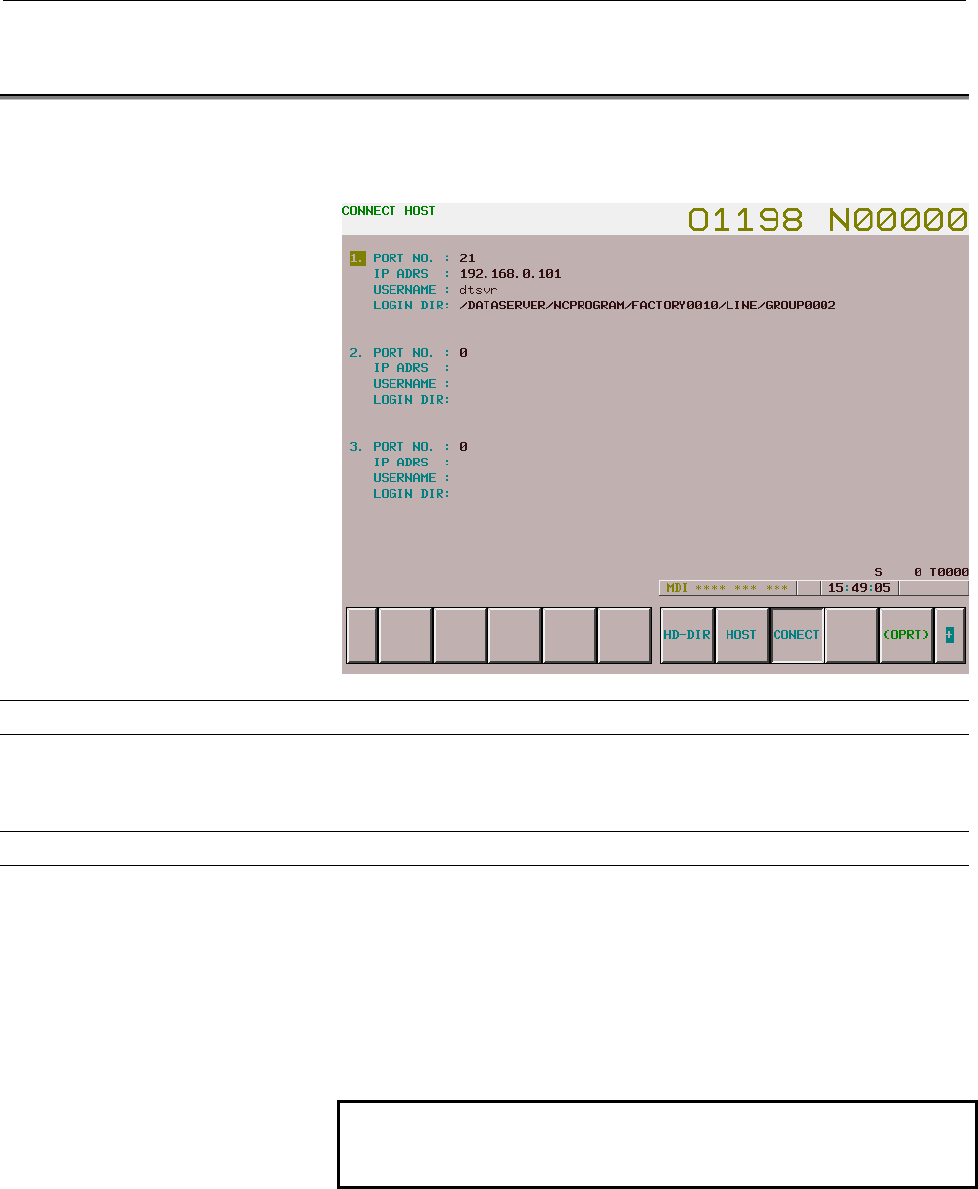

The Connect Host screen is used to check or change the host computer
on which the FTP server is running.
Display items
•
••
• PORT NO., IP ADRS, USERNAME, and LOGIN DIR
Display the values set from the Ethernet Parameter screen.
Operations
The following keys currently cannot be used:
•
••
• CONECT 1
Change the connected host to host 1.
•
••
• CONECT 2
Change the connected host to host 2.
•
••
• CONECT 3
Change the connected host to host 3.
NOTE
Some versions of the CNC system software allow
only host 1 to be specified for connection.
