i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04

- -206

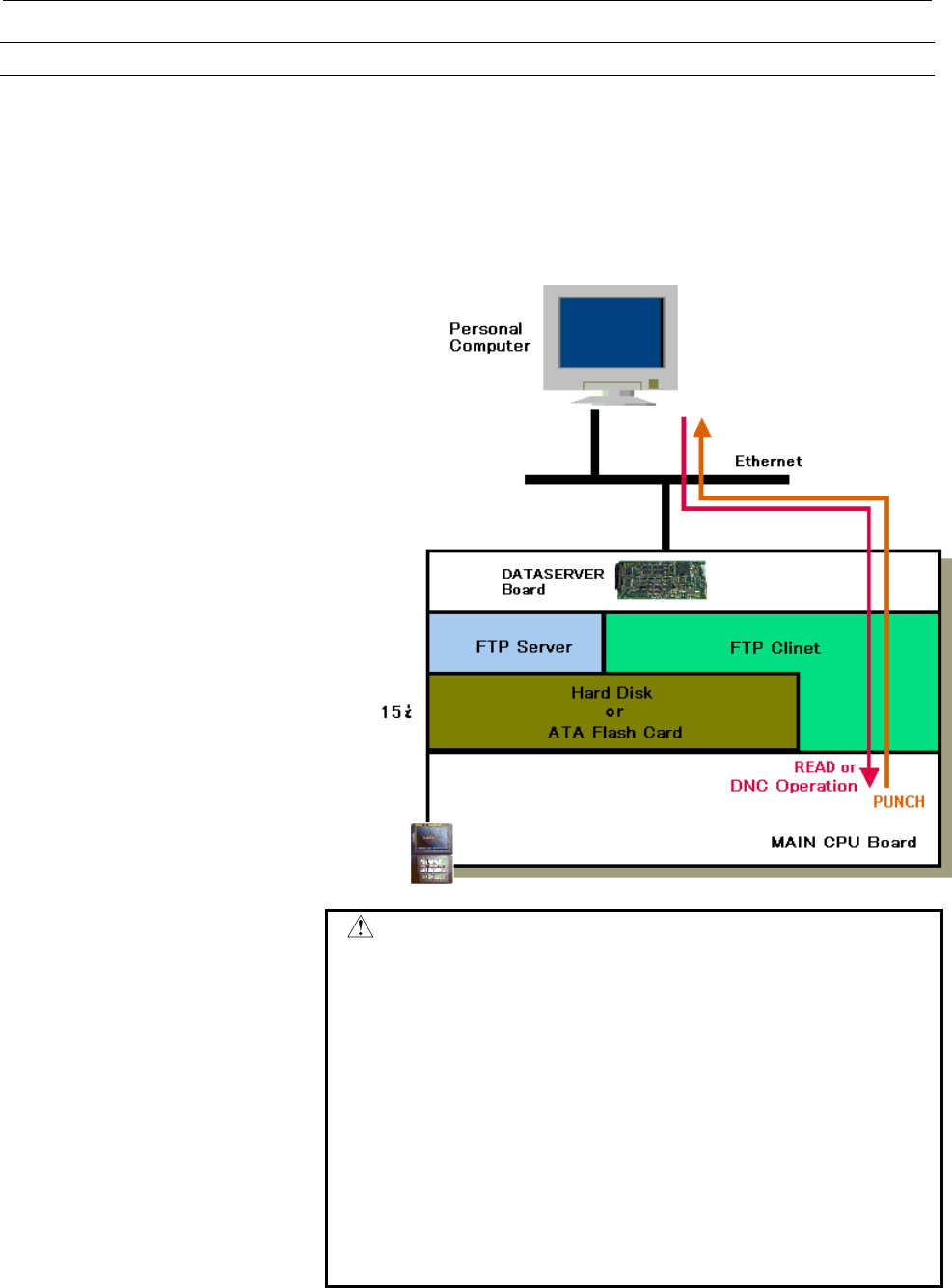

FTP mode

In the FTP mode, data is transferred between the host computer built-in

hard disk and CNC part program storage.

For example, DNC operations including a DNC operation by a

subprogram call (M198) require that the related NC programs be stored

on the host computer (personal computer) built-in hard disk. If an NC

program is output, it will be stored on that hard disk.

CAUTION

1 In FTP mode, CNC data is transferred from the host

computer hard disk to CNC tape memory. So, if a line

is disconnected during communication due to

network noise or any other reason, the line

disconnection has a direct effect on the CNC

operation, unlike in storage mode.

2 If communication between the CNC and host

computer is interrupted, for example, by putting the

CNC on feed hold during a DNC operation in the FTP

mode, the host computer may disconnect the

communication. Perform trial run to put the CNC on

feed hold and make sure that communication with the

host computer is not interrupted.
