SERIES 15-150 MODEL B Connection manual Page 126

Connection manual
B–62073E/04
5. POWER SUPPLY UNIT AND INPUT
UNIT CONNECTION
119

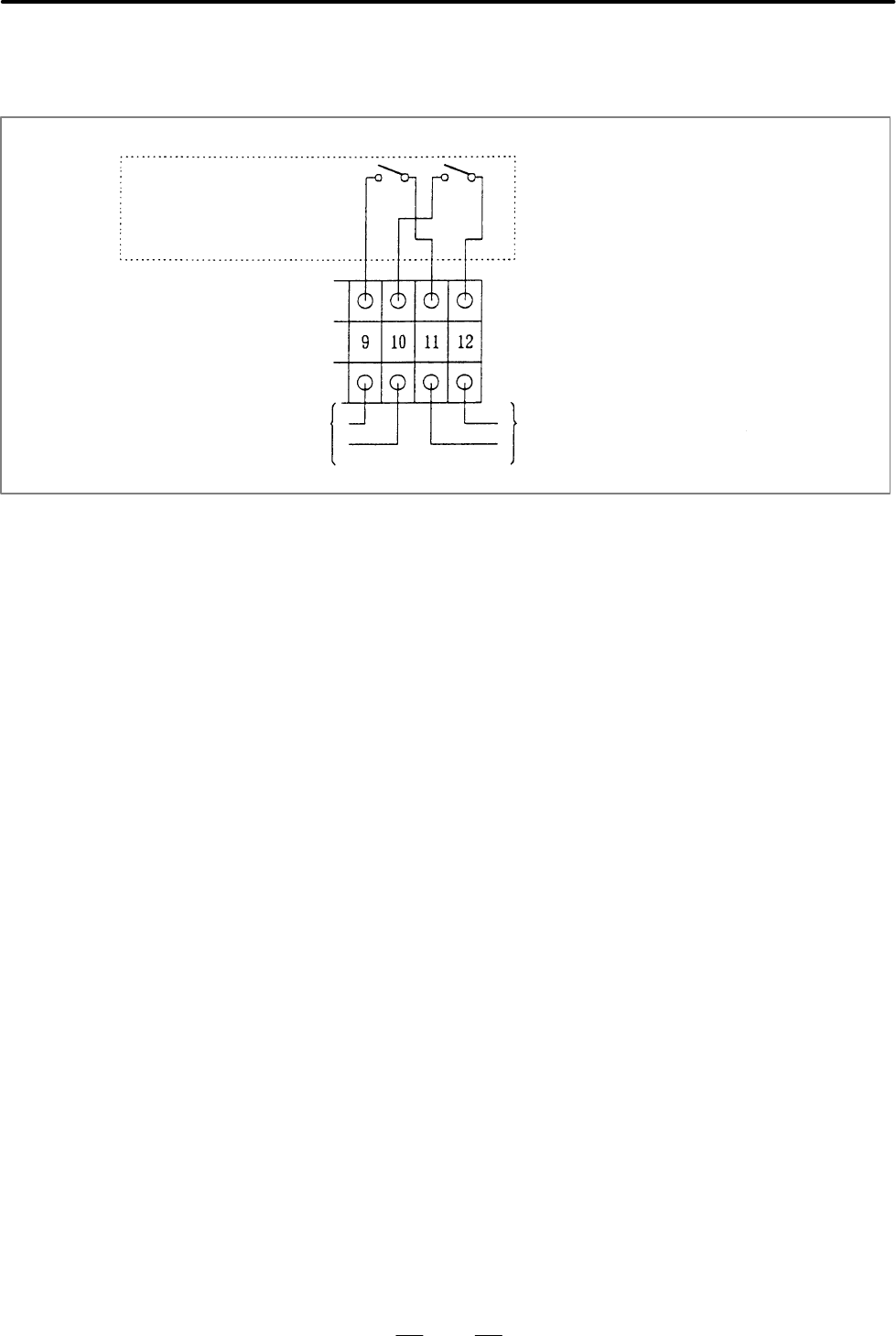

(c) Terminal 9 to 12
These terminals are for the door interlock. The connections are as
follows:
When the door interlock
(A02B–0075–J052) is specified,
these connections are made at
the factory.
These terminals receive the door
interlock signal from the previous
cabinet. Depending on the previous
cabinet, the connection differs.
These terminals supply the door interlock signal
to the next cabinet. When there is no “next
cabinet,” terminals 3 and 4 are short–circuited.
These connections are completed at the factory.
a. When the previous cabinet is an additional cabinet:
These connections are made at the factory.
b. When the previous cabinet is standalone cabinet A and the door
interlock (A02B–0076–J204) is specified:
Connections are completed at the factory.
c. When the previous cabinet is standalone cabinet B and the
timing control cable (A02B–0164–J101) is specified:
These connections are made at the factory.
