B–62073E/04

7. CONNECTION TO CNC PERIPHERALS

258

NOTE

1 Signals SPOUT and *SPOUT are for a serial spindle. These

signals are not used for an analog spindle.

2 When the line length is over 14 m, set the maximum

electrical resistance of 0 V and 5 V to 0.5 W.

The position coder, which generates square waveform voltage signals of

the number proportionate to the angle of rotation of the spindle, is used

for per–revolution feed and for thread cutting. The spindle and the

position coder are connected in the following four ways by parameter

setting (parameter 5610).

(1)One revolution of the position coder for one revolution of the spindle.

(2)One revolution of the position coder for two revolution of the spindle.

(3)One revolution of the position coder for four revolution of the spindle.

(4)One revolution of the position coder for eight revolution of the spindle.

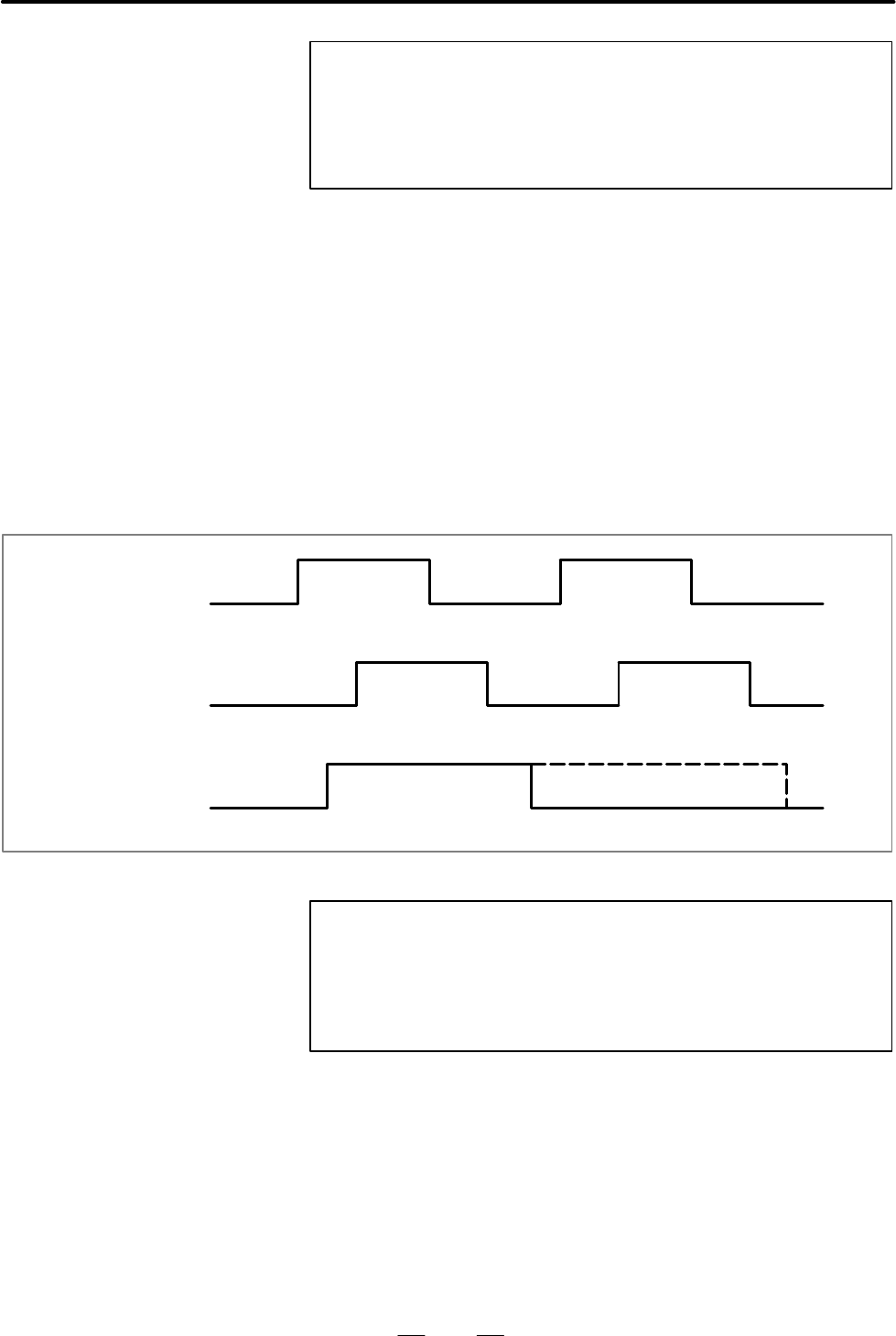

Fig. 7.9.4 shows the timing chart of signals generated from the position

coder.

1024 pulse/revolution

1 pulse/revolution

Fig. 7.9.4 Waveform generated by position coder

NOTE

A differential driver is used for feedback from the position

coder.

*PA, *PB, and *SC are the inverted signals of PA, PB, and

SC respectively and vice sersa.
