6. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
189
The source output operator’s panel connection unit (A16B–2202–0730,
or –0731) is connected to Series 15–B control units by the FANUC I/O
Link, and functions as the interface with the machine tool operator’s
panel.
Output from this connection unit is source–type. Input is sink–type
(24 V common). However, some connection units have DI that can be
switched to source–type input (0 V common).
Two connection units are available according to the number of I/Os.
Specification Input Output
A16B–2202–0730 96 64
A16B–2202–0731 64 32
DC24 V
Control unit series 15–B
JD1A
or
I/O unit
JD1B
To next device

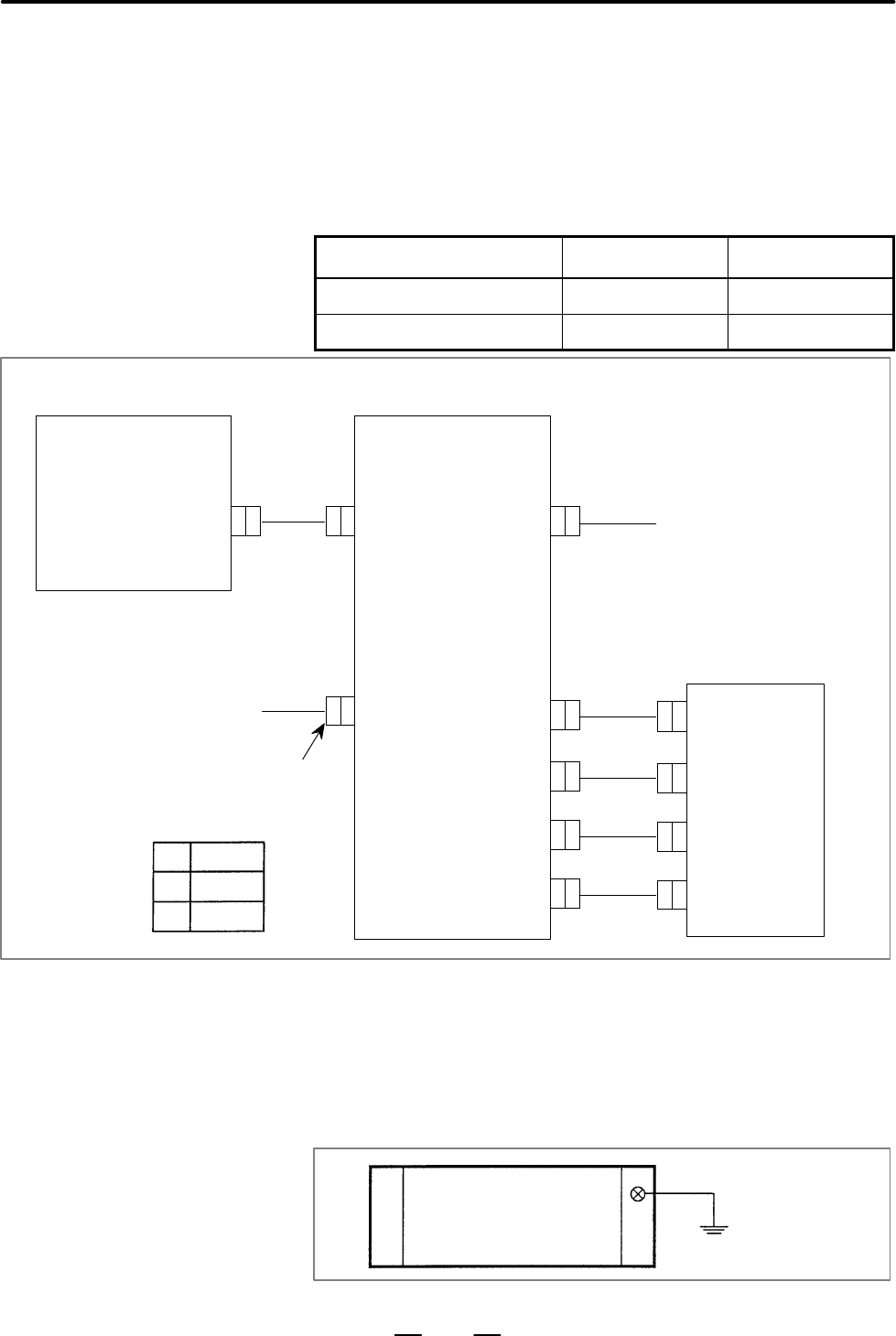

Source output operator’s panel connection unit
A16B–2202–0730, 0731
Japan FCI 3–pole Connector (brown)
Housing: SMS3PNS–5
Contact: RC16M–SCT3
If there is are no devices beyond this con-
nection unit, JD1A may be left open.
JDIA
CM51
CM52
CMB3
CMB4
CP61
Machine
operator’s
panel
1 +24 V
2 GND
3
Power supply input specification
Voltage: 24 VDC" 10%
Capacity: 500) 7.3 n (mA)
n: number of inputs ON simultaneously
Use a 30/0.18 (0.75 mm
2
) wire or thicker for the power cable.
Grounding of the operator’s panel connection unit
Ground mounting
plate
6.6
CONNECTION OF
SOURCE OUTPUT
OPERATOR’S PANEL
CONNECTION UNIT
