3. INSTALLATION
16
Table 3.5 lists the heat exchangers.
Cooling fins A, B and C are not provided with a fan. Note that a fan motor
is required for any of these cooling fins when it is used as a heat exchanger.
Table 3.5 List of heat exchangers
Name
Ordering
specification
Cooling
capacity
Size
Cooling fin A A02B–0053–K303 9.1 W/°C 196 90 1000 mm
Cooling fin B A02B–0053–K304 10.1 W/°C 444 90 650 mm
Cooling fin C A02B–0053–K305 25.2 W/°C 560 90 970 mm
Heat exchanger for
CRT/MDI unit
A02B–0060–K401 5.0 W/°C 390 86 480 mm
Heat pipe type heat
exchanger
A02B–0094–C901 9.0 W/°C 226 132 415 mm
The cooling fin is shown below (Fig. 3.5.1 (a)). It is installed in a cabinet
made by the machine tool builder.
Viewed from cabinet mounting side

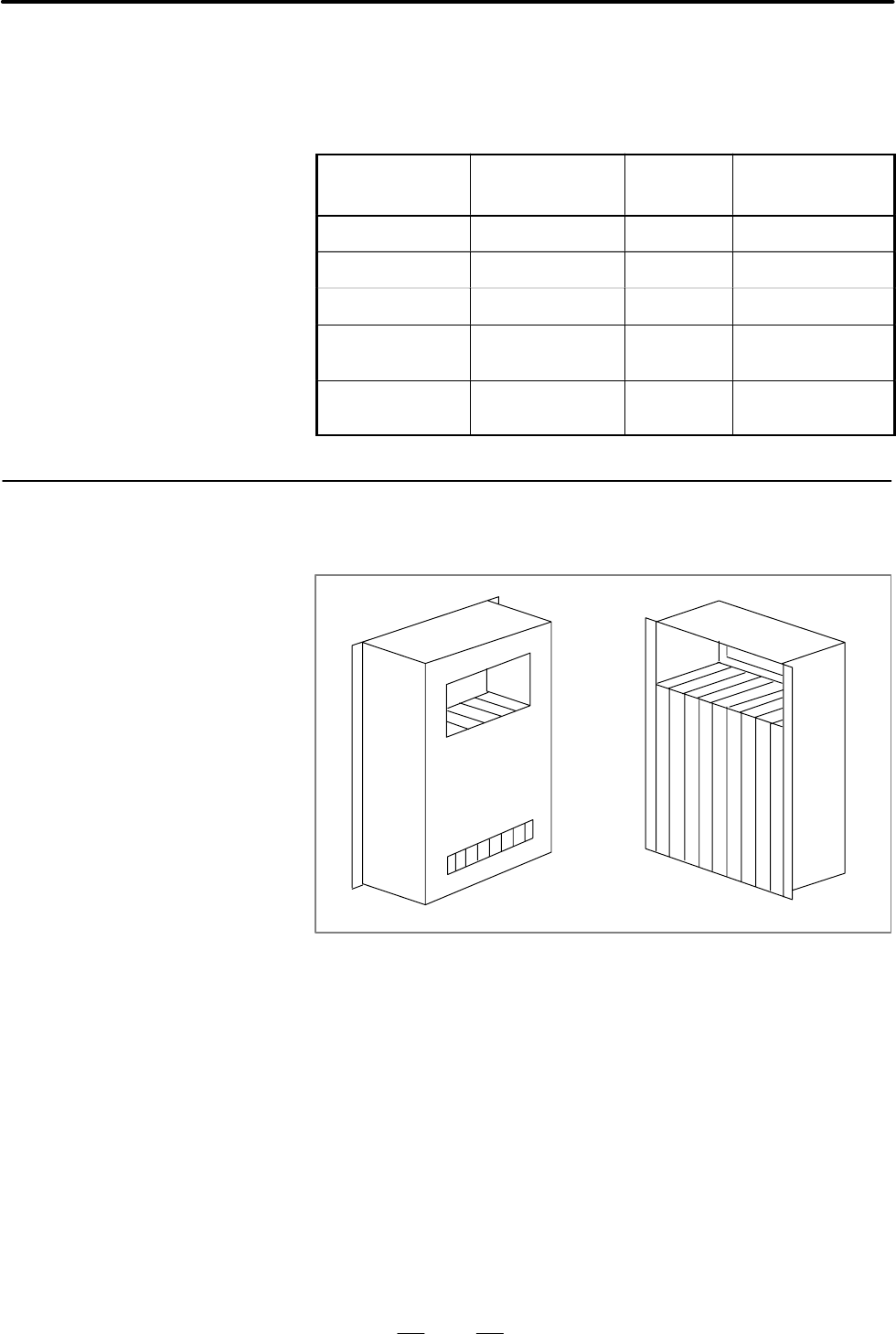

Fig. 3.5.1 (a) External view of cooling fin
3.5
INSTALLING THE
HEAT EXCHANGER
3.5.1
Cooling Fin A/B/C
