3. INSTALLATION
39
20mm
12mm
8mm
Ground plate

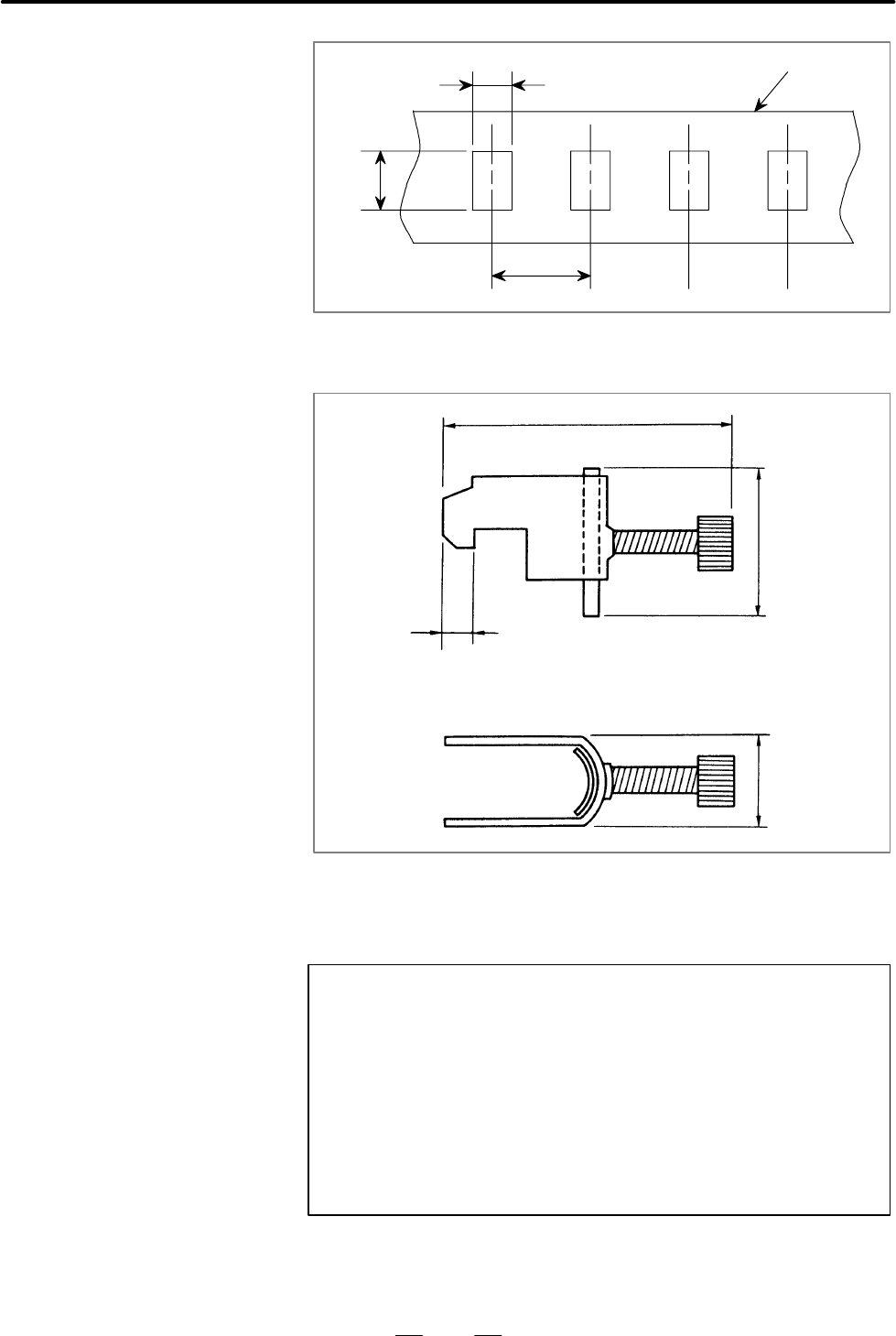

Fig. 3.6.5 (d) Ground plate holes Ground plate
(Reference) Outer drawings of metal fittings for clamp.
6mm
28mm
17mm
Max. 55mm
Fig. 3.6.5 (e) Outer drawings of metal fittings for clamp
Ordering specification for metal fittings for clamp
A02B–0118–K001 (5 pieces)
NOTE
Select cables of appropriate length.
We do not recommend using cables longer than necessary.
Such cables may demonstrate poor resistance to electrical
noise or be influenced by electrical noise. Also, if excess
cable is wrapped up in a coil, this may increase impedance.
This may induce an extremely high voltage during ON/OFF
switching of signals, or lead to erroneous operation caused
by malfunction or electrical noise.
