3. INSTALLATION

(9)The CRT screen can be distorted by magnetic interference.

Arranging magnetic sources must be done with care.

If magnetic sources (such as transformers, fan motors,

electromagnetic contactors, solenoids, and relays) are located near the

CRT display, they frequently distort the display screen. To prevent

this, the CRT display and the magnetic sources generatlly must be kept

300 mm apart. If the CRT display and the magnetic sources are not

300 mm apart, the screen distortion may be suppressed by changing

the direction in which the magnetic sources are installed.

The magnetic intensity is not constant, and it is often increased by

magnetic interference from multiple magnetic sources interacting

with each other. As a result, simply keeping the CRT and the magnetic

sources 300 mm apart may not be enough to prevent the distortion.

If they cannot be kept apart, or if the CRT screen remains distorted

despite the distance, it may be necessary to cover the screen with a

magnetic shield.

(10)The installation conditions of the I/O unit must be satisfied.

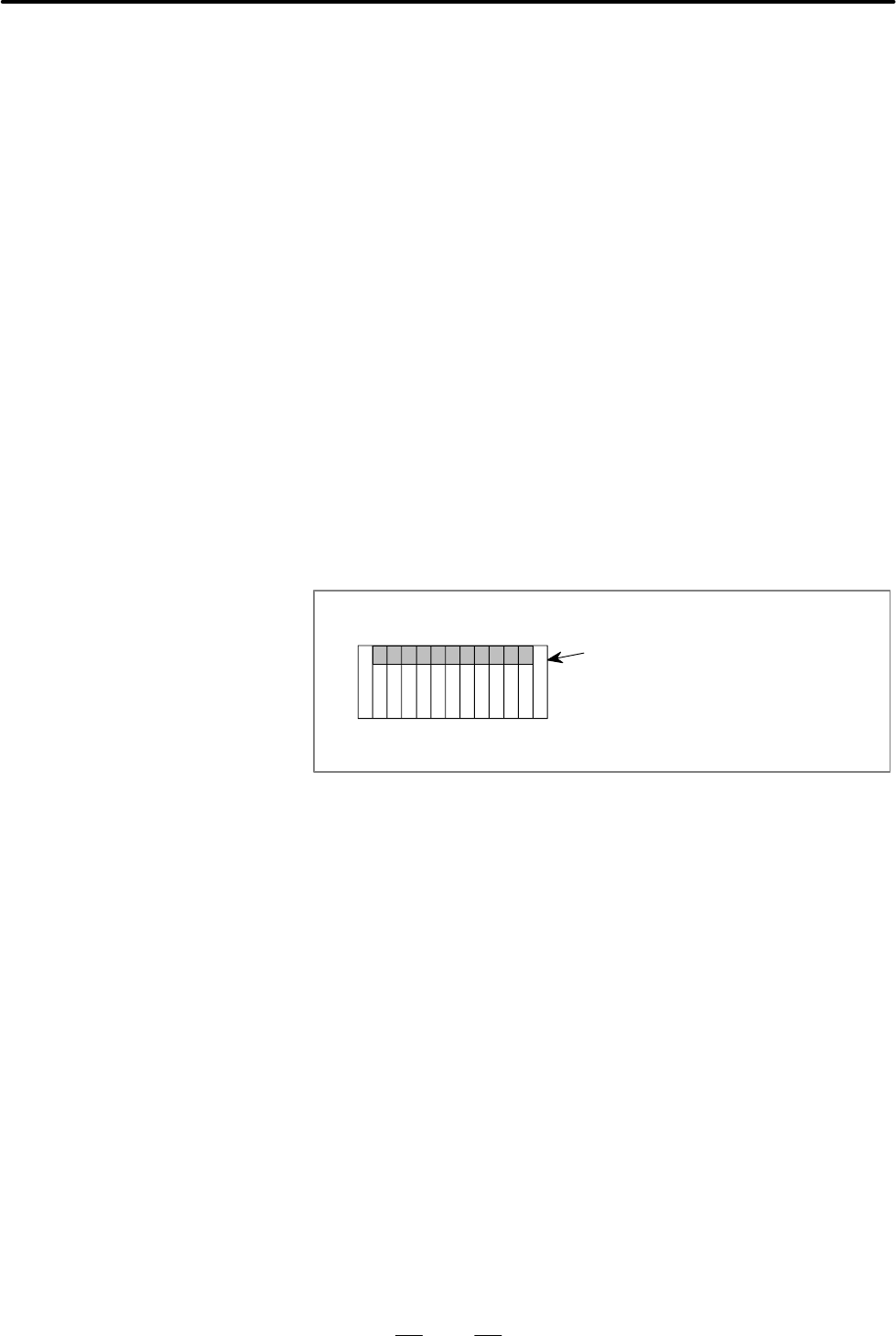

To obtain good ventilation in the module, the I/O unit must be installed

in the direction shown in the following figure. Clearances of 100 mm

or more both above and below the I/O unit are required for wiring and

ventilation.

Equipment radiating too much heat must not be put below the I/O unit.

Top

Bottom

I/O base unit

(No screws or protrusions shall extend

from the bottom of this unit.)

(11) If the CNC unit is installed at an elevation exceeding 1000 m, the upper

limit temperature of the CNC inside the cabinet at the environmental

conditions described in section 3.1 is subject to restrictions.

With each increase of 100 m above an elevation of 100 m, the upper

limit temperature is reduced by 1°C.

Example) When the CNC unit is installed at an elevation of 1750 m,

the allowable upper limit temperature of the CNC inside

the cabinet is calculated as follows:

55°C–1750/100 1.0°C+ 47.5°C

Accordingly the allowable temperature range is 0°C to

47.5°C

When a PCB with built–in hard disk is used, the installation elevation

is restricted as follows:

Standard elevation when in operation: –60 to 3,000 m

Standard elevation when not in operation: –60 to 12,000 m

(12)In unspecified frequencies, the CNC control unit or the hard disk itself

may resonate. If this happens, resonation may cause acceleration

beyond the allowable limits of the devices. Full check this after

installing the CNC control unit in the machine tool.
