SERIES 15-150 MODEL B Connection manual Page 361

Connection manual
B–62073E/04
C. 20-PIN INTERFACE CONNECTORS
AND CABLES
APPENDIX
365
C
20–PIN INTERFACE CONNECTORS AND CABLES
(1)Connector for the PC board
Model: PCR–EV20MDT manufactured by Honda Tsushin
The connector for the PC board has been specially developed support
FANUC’s high–mounting density. The one of each maker’s including
PCR connectors made by Honda Tsushin are compatible with the
mating part of the connector and can be selected for the cable
connection.
(2)Cable connector
The cable connector is separated into a body and a housing. The
connectors available are shown below. Models marked with (*) have
been customized for FANUC; those not so marked are mass produced
as standard products.
Cable
connector
Use
General–
purpose
MDI,
IOLINK,
AMP,
SPDL
Connector
body
Type
HONDA
Tsushin
Manufacturer
PCR–E20FA
Connector
model name
PCR–V20LA*
PCS–E20LA
Case model
name
f 6mmf (5.7 to 6.5)f
6mmf (5.7 to 6.5)
Applicable
cable O.D.
HIROSE
Electric
FI30–20S* FI–20–CV2* f 6.2mm (f 5.5 to 6.5)
HONDA
Tsushin
PCR–E20FS PCR–V20LA*
PCS–E20LA
f 6mm (f 5.7 to 6.5)
f 6mm (f 5.7 to 6.5)
FUJITSU FCN–247J020
–G/E
FCN–240C020
–Y/S*
f 5.8mm (f 5.7 to 6.5)
Mores 52622–2011* 52624–2015* f 6.2mm (f 5.9 to 6.5)
HIROSE
Electric
FI40–20S* FI–20–CV2* f 6.2mm (f 5.5 to 6.5)
FI40B–20S*
(FI40A–20S*)
FI–20–CV5* f 9.2mm (f 8.9 to 9.5)
FI40B–20S* FI–20–CV6* f 10.25mm (f 9.5 to 11.0)
Pulse coder,
coaxial cables,
linear scale,
manual pulse
generator
Housing HIROSE
Electric
FI40B–2015S*
(FI40–2015S*)
FI–20–CV* f 8.5mm (f 8.0 to 9.0)
HONDA
Tsushin
PCR–E20FS f 6mm (f 5.7 to 6.5)
FI40B–20S*
(FI40A–20S*)
FI–20–CV5* f 9.2mm (f 8.9 to 9.5)
FI40B–20S* FI–20–CV6* f 10.25mm (f 9.5 to 11.0)
PCR–V20LA*
PCS–E20LA
f 6mm (f 5.7 to 6.5)
Housing

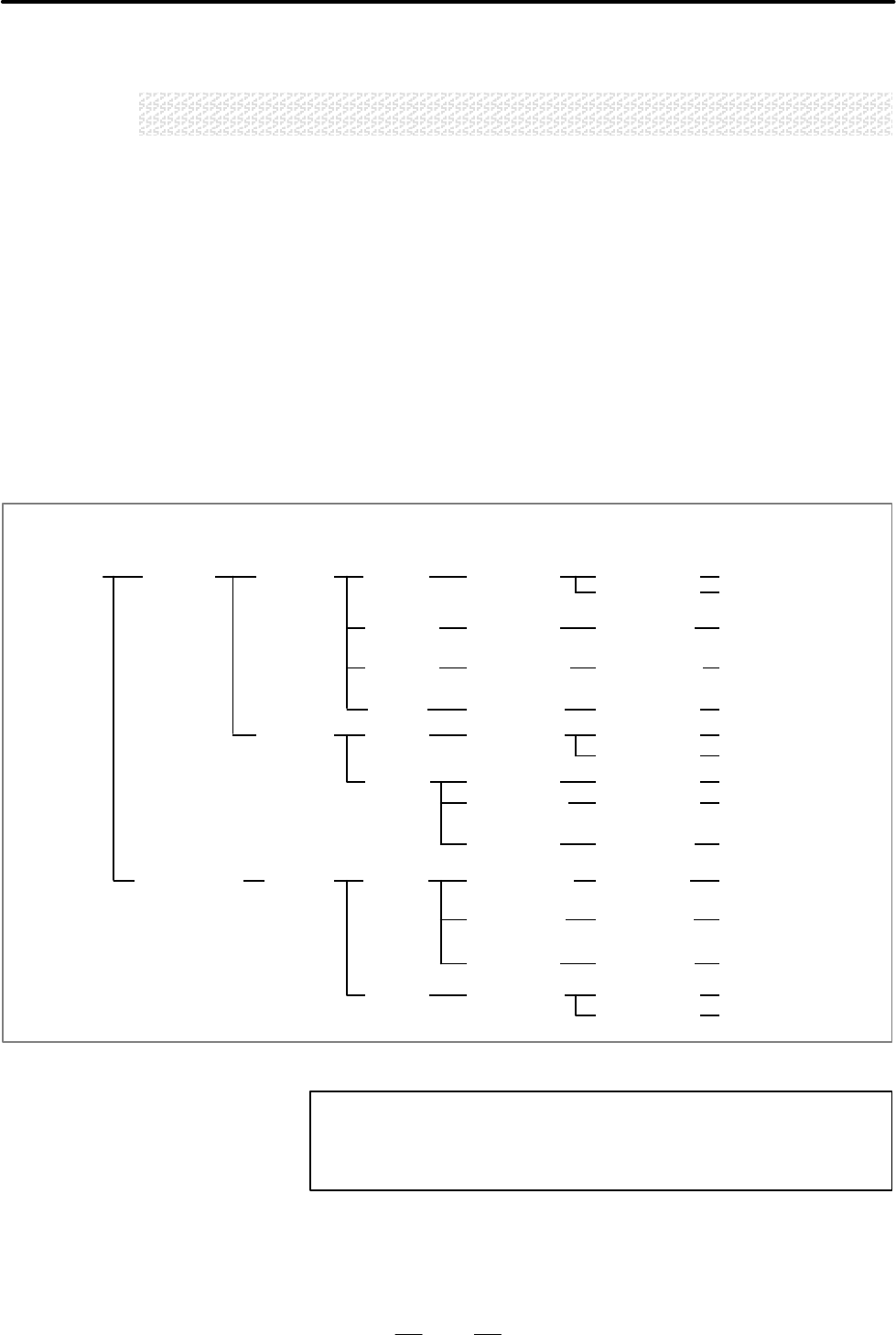

Fig. C (a) Cable connectors
NOTE
Use the same maker’s connector body and housing to
combine them.
