Power Failure Backup Module
Descriptions
A-53866E-464

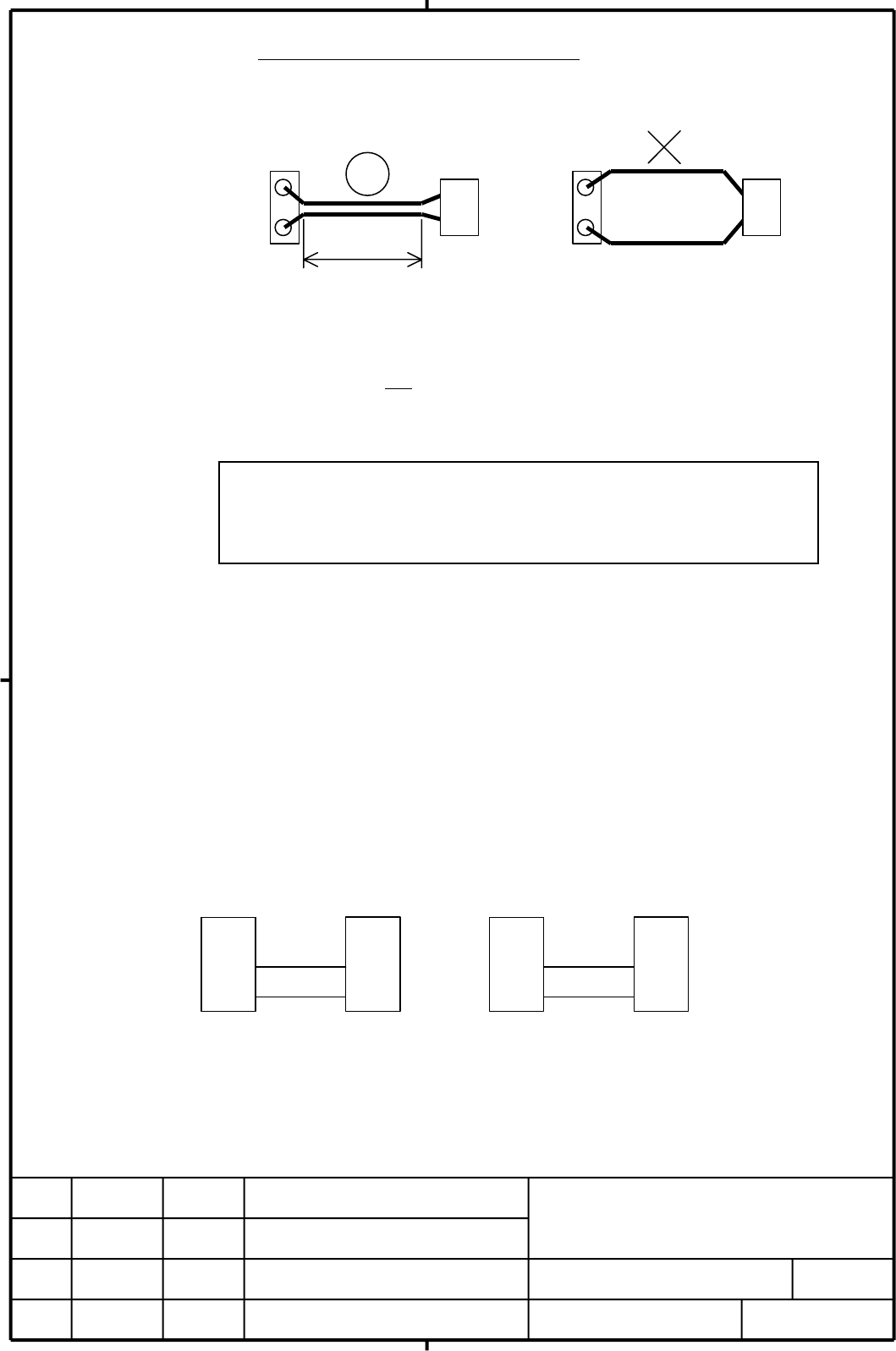

Notes on connecting a film capacitor
The cable from the film capacitor may be up to 30 cm.
The cables must be twisted or bundled in parallel.
30 cm or less
TB1
Film capacitor
TB1 Film capacitor
<2> Connection between the power failure backup module and sub module C
Connect terminal block TB2
of the power failure backup module to terminal block
TB1 of sub module C, using the short bar or cable. If you do not use sub module
C, you need not connect terminal block TB2 of the power failure backup module.
<3> Connection between sub modules C
Connect terminal blocks TB1 of sub modules C together, using the short bar or
cable.
If connecting the terminal blocks together with the cable, and the cable is long,
twist the conductors. For the specifications of the short bar and cable, refer to
Descriptions B-65282EN or B-65162E.
(2) Details of the connection of cable K4
This cable is used to transfer 200 VAC between SPMs and between SVMs.
Cable type: Vinyl cabtyre cable, JIS C 3312, 2-conductor
Conductor: 1.25mm
2
(50/0.18), sheath: PVC 9.6φ
Connector type: AMP connector
Receptacle housing: 1-178128-3
Receptacle contact: 1-175218-2
200S
SPM/CX1A
200R
(3)
(2)
(1)
(3)
(2)
(1)
CX2B SPM/CX1B
200S
SVM/CX1A
200R
(3)
(2)
(1)
(3)
(2)
(1)
CX2BSVM/CX1B
CAUTION
Do not connect sub module C to TB1 of the power failure backup modul
e
by mistake. Otherwise, the PSM may be damaged.
