Power Failure Backup Module
Descriptions
A-53866E-464
(2) Control of the charging of the capacitor inside the sub module
Controls the charging of the capacitor inside sub module C. Charging of sub module C starts when
the DC link has been charged completely and the PSM enters the ready state (*CRDY=0) after the
MCC is turned ON. The charging time depends on the number of sub modules C connected. It
takes up to one minute to complete the charging (90% of the DC link voltage reached). Upon
completion of the charging, CX16 outputs the ready signal RDY of 1. After confirming that RDY is
1, change to a mode in which power failure backup operation is required. (See Subsection 6.2.1.)
Sub module CSVM or SPM Power failure
backup module
PSM
To motor
PSM input
voltage
(200 VAC)

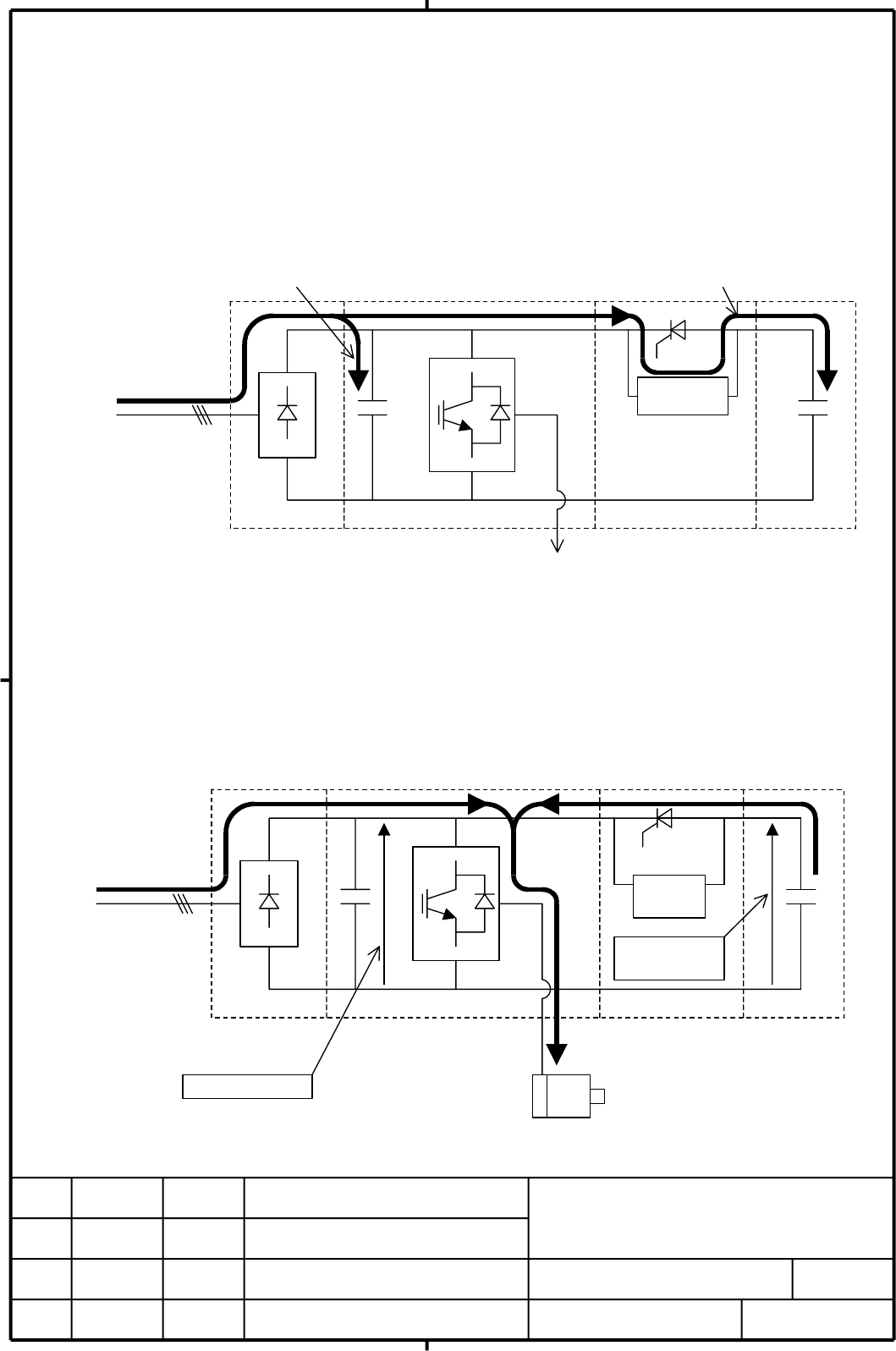

<2> After completion of DC link charging, charge sub module C<1> Charging of DC link capacitor
Charge circuit
Thyristor
(3) Control of the supply of energy to the DC link
Upon detecting a power failure, the power failure backup module turns on its internal thyristor to
discharge the energy stored in the capacitor inside sub module C to the DC link. The servo motor is
driven on this energy. (See Subsection 6.2.4.)
Motor
Sub module CSVM or SPM Power failure
backup module
PSM
PSM input
voltage
(200 VAC)
Energy supply route in the event of a power failure
Energy supply route in normal operation
DC link voltage
Sub module C
voltage
Charge
circuit
Thyristor
