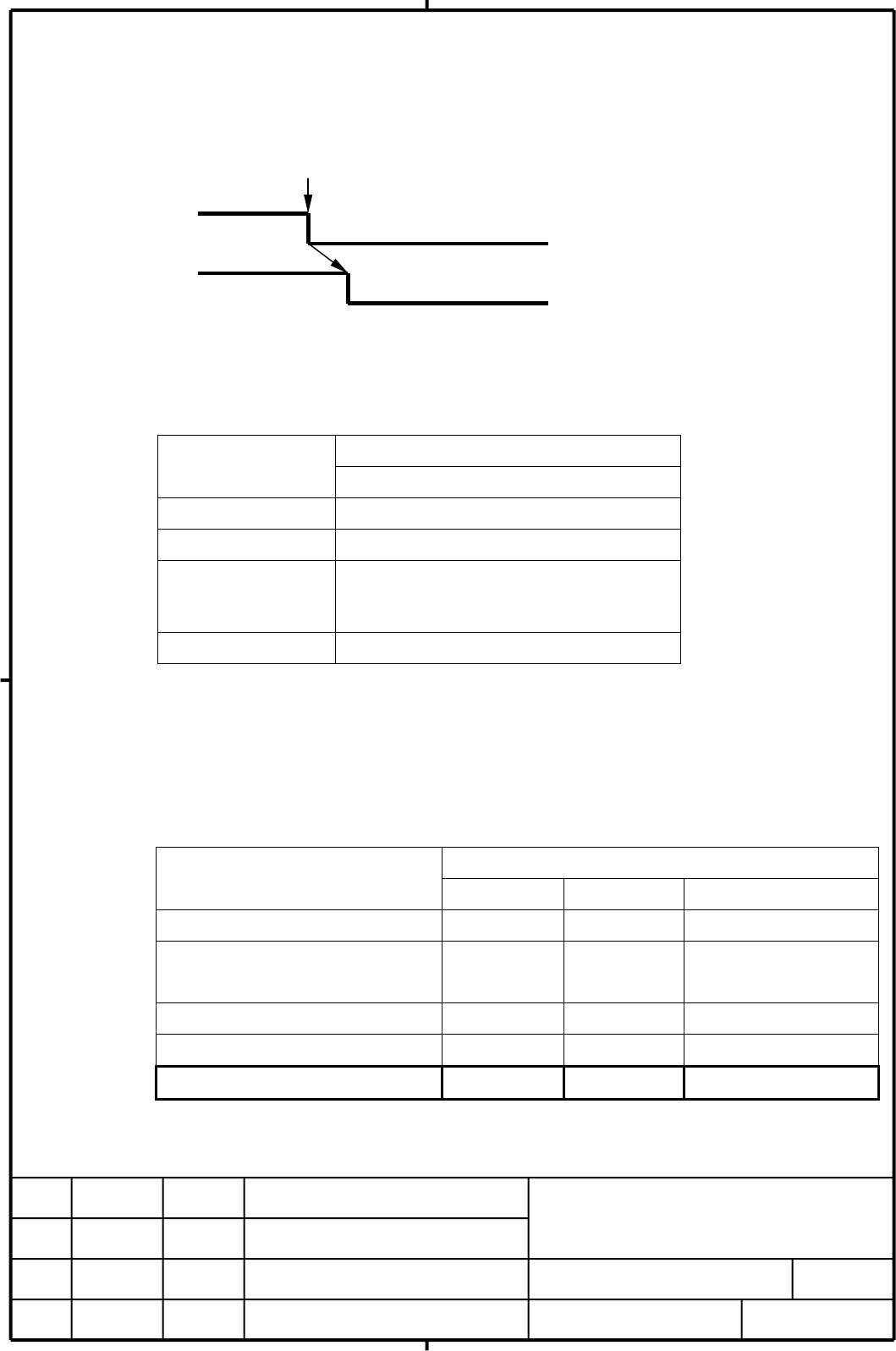

7.2 STOP DISTANCE REDUCTION FUNCTION AT POWER FAILURE
7.2.1 Deceleration on the Feed Axis to a Stop
Set the parameters for the stop distance reduction function (standard function). When the power failure
detection signal (*PFL) from "1" to "0", set the emergency stop (*ESP) of the CNC to "0".
*PFL
*ESP
Power failure detected
*PFL: Power failure detection signal
Output from connector CX16 of the power failure backup module.
*ESP: Emergency stop signal of the CNC
Signal address
CNC
*ESP
FS15i X000 #4
FS0i/16i/18i/21i X008 #4
FS30i/31i/FS31i
X008 #4 (first machine group)
X008 #0 (second machine group)
X008 #1 (third machine group)
FS0C X121 #4
Setting of parameters
(1) DBST: Use stop distance reduction function
→ Set it to enable ("1").
(2) BRKC: Use brake control function
→ Set it to enable ("1").
(3) Brake control timer
→ Set it to a value equal to or greater than the rapid traverse time
constant. (Increment system: msec)
Parameter number
CNC
DBST BRKC Brake control timer
FS15i, FS15-B No.1959 #0 No.1883 #6 No.1976
FS0i/16i/18i/21i/30i/31i/32i
FS16/18/20/21, Power Mate
No.2017 #0 No.2005 #6 No.2083
FS15-A No.1884 #1 No.1883 #6 No.1976
FS0C No.8X06 #1 No.8X05 #6 No.8X83
Setting example 1 1 500
For details, refer to the Parameter Manual (B-65270EN, B-65150E).
