Power Failure Backup Module
Descriptions
A-53866E-464

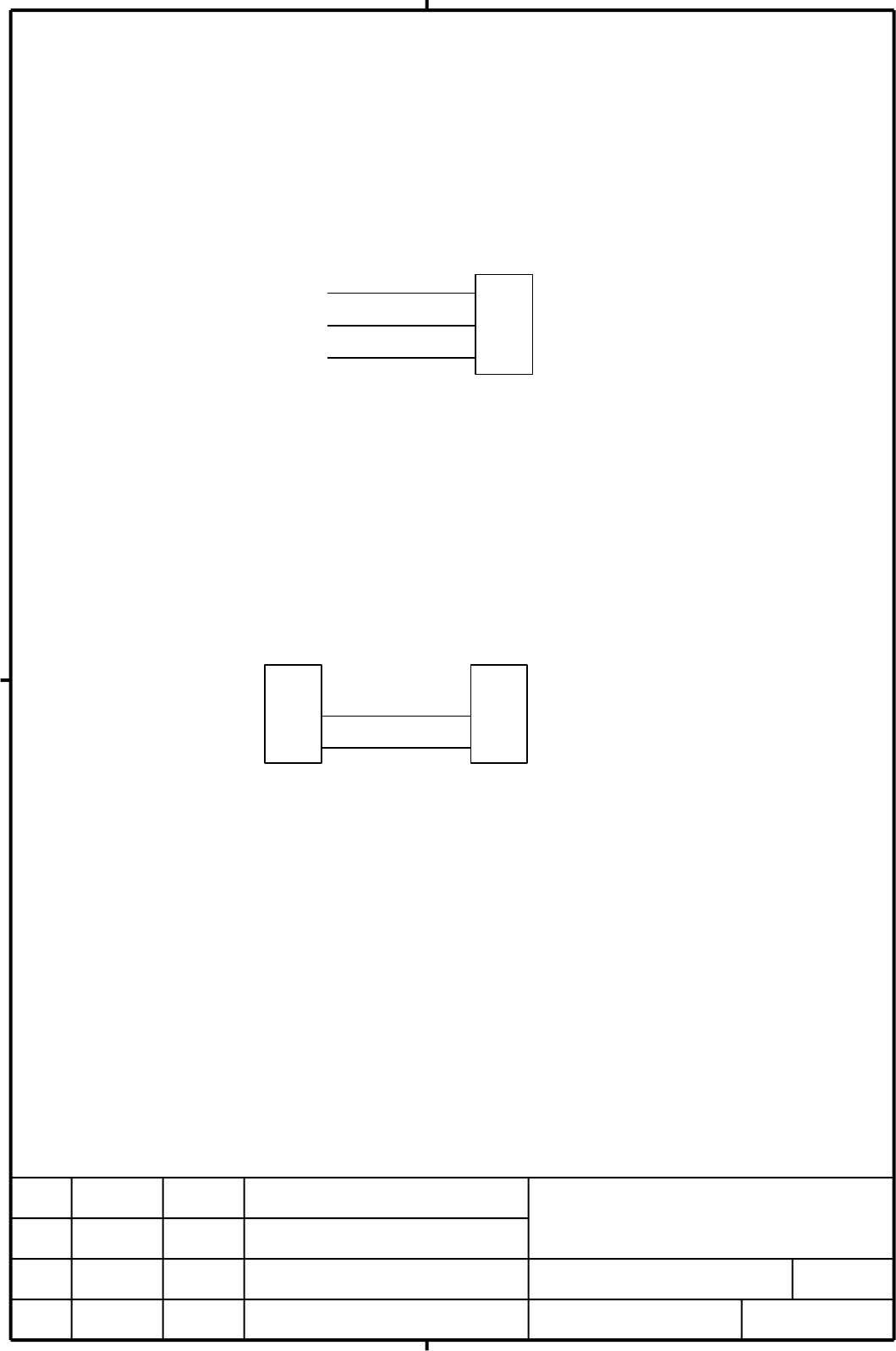

(4) Details of the connection of cable K58
This cable is used to supply control power (200 VAC) to the PSM and the CNC and to
detect a power failure.
It is used with the power failure backup module A06B-6077-H002.
Until a power failure is detected, the200 VAC supplied to (1) 200R1/(2) 200S1 of the
CX12 is output to (1) 200R2/(2) 200S2 of the CX13 via the internal circuit of the
power failure backup module.
Cable type: Vinyl cabtyre cable, JIS C 3312, 3-conductor
Conductor: 1.25mm
2
(50/0.18), sheath: PVC 10.5
φ
Connector type: AMP connector
Receptacle housing: 1-178128-3
Receptacle contact: 1-175218-2
CX12
200T1
200S1
200R1
(3)
(2)
(1)
T
200V 3φ S
R
(5) Details of the connection of cable K59
This cable is used to supply control power (24 VDC) from the α/αHV amplifier to the
power failure backup module.
CX2B
Cable type: Vinyl cabtyre cable, JIS C 3312, 2-conductor
Conductor: 1.25mm
2
(50/0.18), sheath: PVC 9.6φ
Connector type: AMP connector
Receptacle housing: 1-178288-3
Receptacle contact: 1-175218-2
CX14
0V
24V
(3)
(2)
(1)
(3)
(2)
(1)
The cables supplied by the A06B-6082-K808 to K810 have their CX2B (3) and CX14 (3)
connected together; just use them as they are.
