Power Failure Backup Module
Descriptions
A-53866E-464

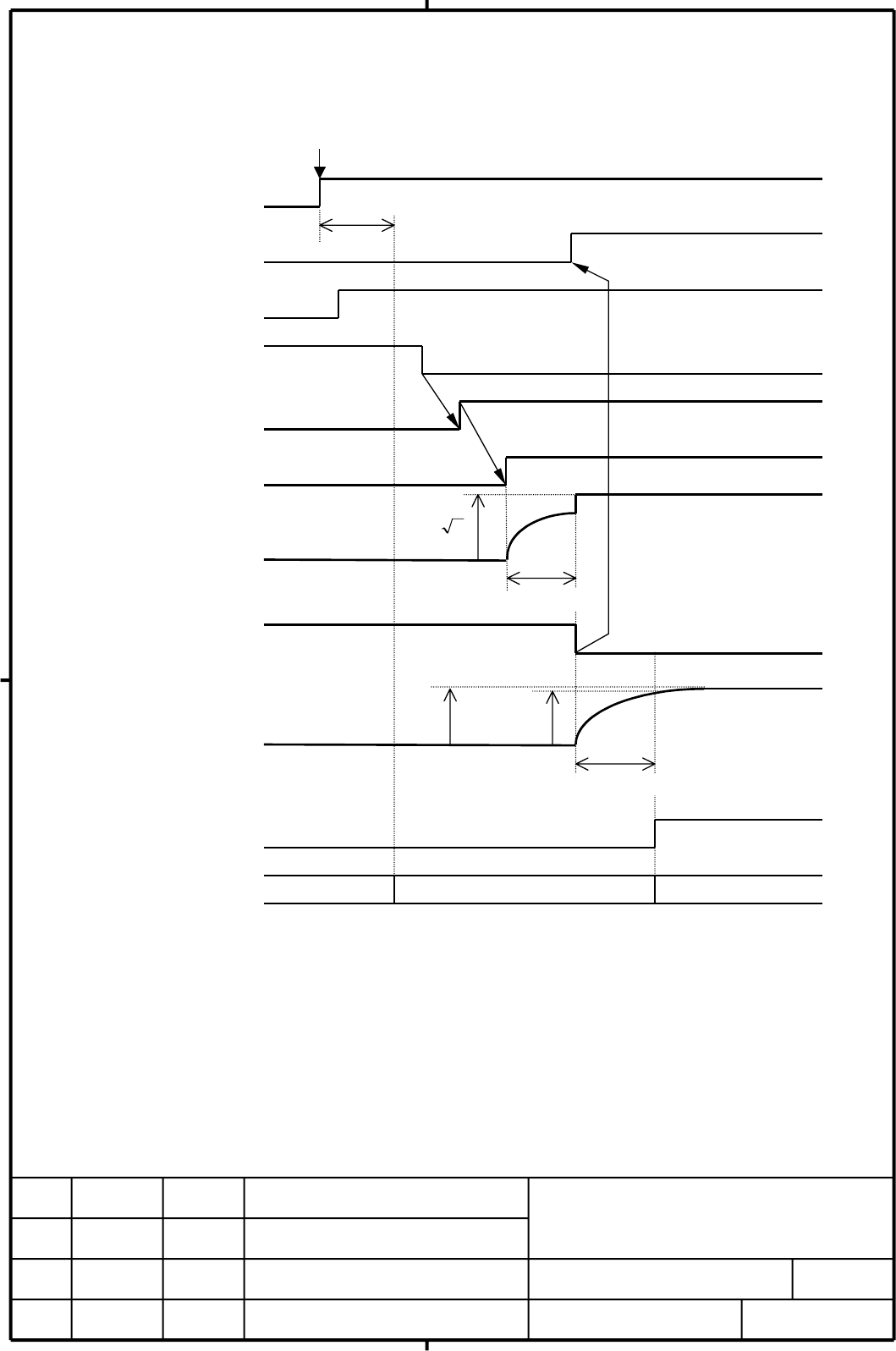

6.2 CONTROL SEQUENCES
6.2.1 Power-ON Sequence
(1) For the A06B-6077-H002 (200V type)
60sec MAX
1.5sec MAX
Main breaker (200 VAC) Output of 200 VAC from CX13
Power failure detection Power failure detection enabled (Note 1)
CX17 internal relay Internal relay contact ON
*MCON signal (CNC to SVM)
CX3 (PSM) internal relay Internal relay contact ON
MCC ON
DC link voltage (VDC）
2200 ×=VDC
Charge
*CRDY (PSM internal ready signal)
Sub module C voltage
(Sub module C TB1) VDC VDC × 0.9 Charge
RDY (CX16 B3) (Note 2)
LED indication No indication "-" indication "O" indication
Approx. 1 sec
AC200V ON
Note 1. Power failure detection is enabled after the PSM becomes ready (*CRDY=0).
If using an external power failure detection signal, make sure that EXPFL becomes 0 (CX15) before
the PSM becomes ready.
Note 2. Power failure backup operation is possible when RDY is 1. Before moving to an operation mode
that requires power failure backup operation, check that RDY is 1. In a system using sub modules C,
RDY becomes 1 after charging to sub modules C is finished (VDC
× 0.9). In a system not using sub
module C, RDY becomes 1 as soon as the PSM becomes ready (*CRDY=0).
