Power Failure Backup Module Descriptions Additional Manual Page 77

Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
77
/
93
DESCRIPTIONDESIG.DATE
Power Failure Backup Module
Descriptions
A-53866E-464
Handling of the emergency stop contact (CX4) of the PSM
The emergency stop contact (CX4) of the PSM must be maintained in the closed state until a stop on the
feed axis.
If, during feed axis deceleration, the emergency stop contact (CX4) of the PSM is opened, the system
may switch from the regeneration brake to the dynamic brake, possibly extending the stop distance.
For the
αi series amplifier, you can extend the period from the time the emergency stop contact (CX4)
of the PSM is opened until an emergency stop actually activated (the dynamic brake starts to operate),
by setting the parameters given below.

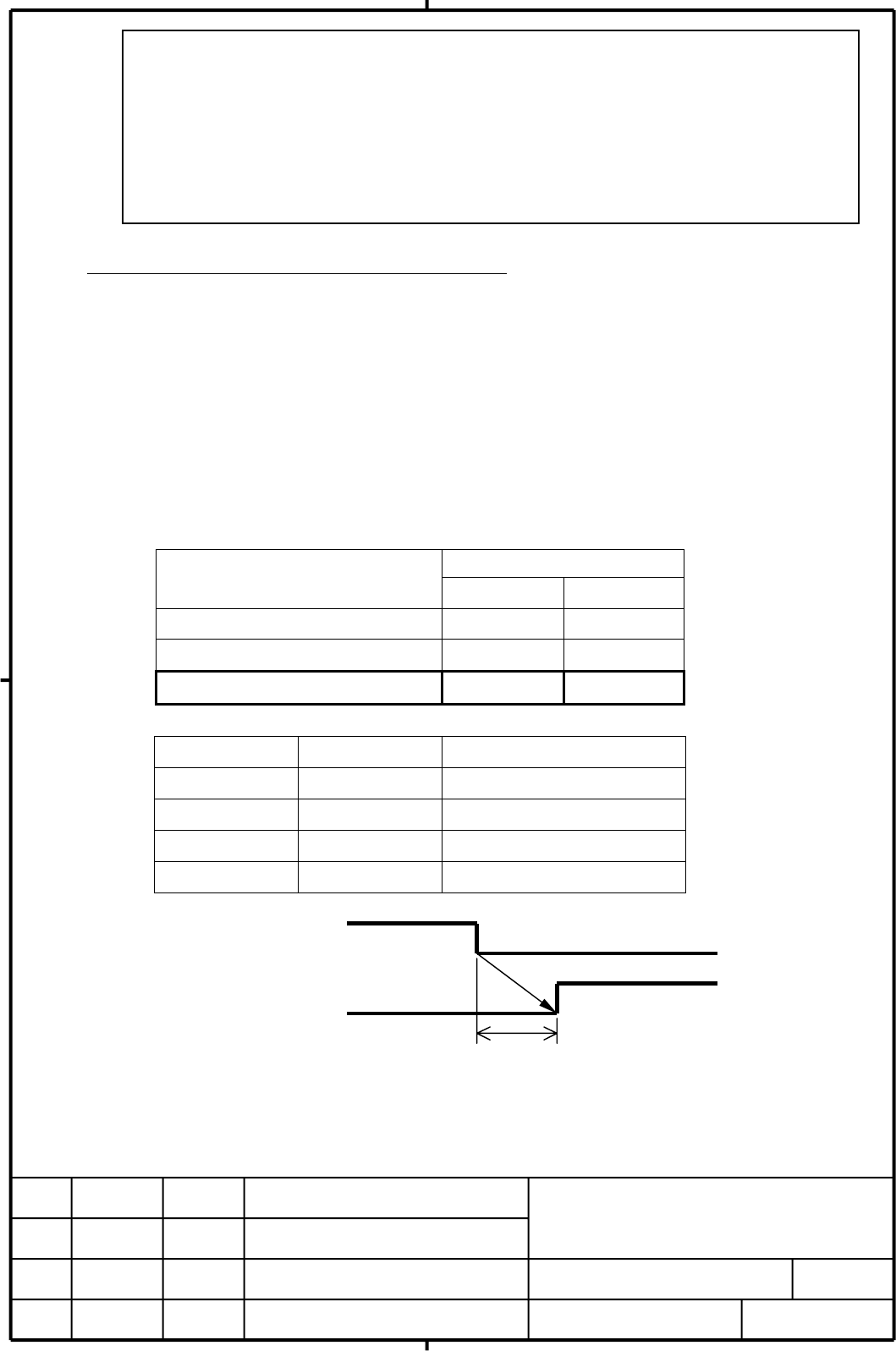

Setting of the emergency stop timer built into the
αi amplifier
Parameter number
CNC
ESPTM1 ESPTM0
FS15i No.1750 #6 No.1750 #5
FS0i/16i/18i/21i/30i/31i/32i No.2210 #6 No.2210 #5
Setting example 1 1
ESPTM1 ESPTM0 Delay time
0 0 50msec
0 1 100msec
1 0 200msec
1 1 400msec
Emergency stop contact (CX4) of PSM Closed Open
Dynamic brake Off On
Delay time specified by setting ESPTM0 and ESPTM1
For details, refer to the Parameter Manual (B-65270JA).
N
OTE
Set the above paramete
r
s for all the axes for which the stop distance reduction function at power
failure is to be used.
If you use a multiaxis amplifier (2- or 3-axis amplifier) for an axis to which the stop distance
reduction function at power failure is to be applied, set the brake control function to enable ("1")
for all the axes on the multiaxis amplifier.
