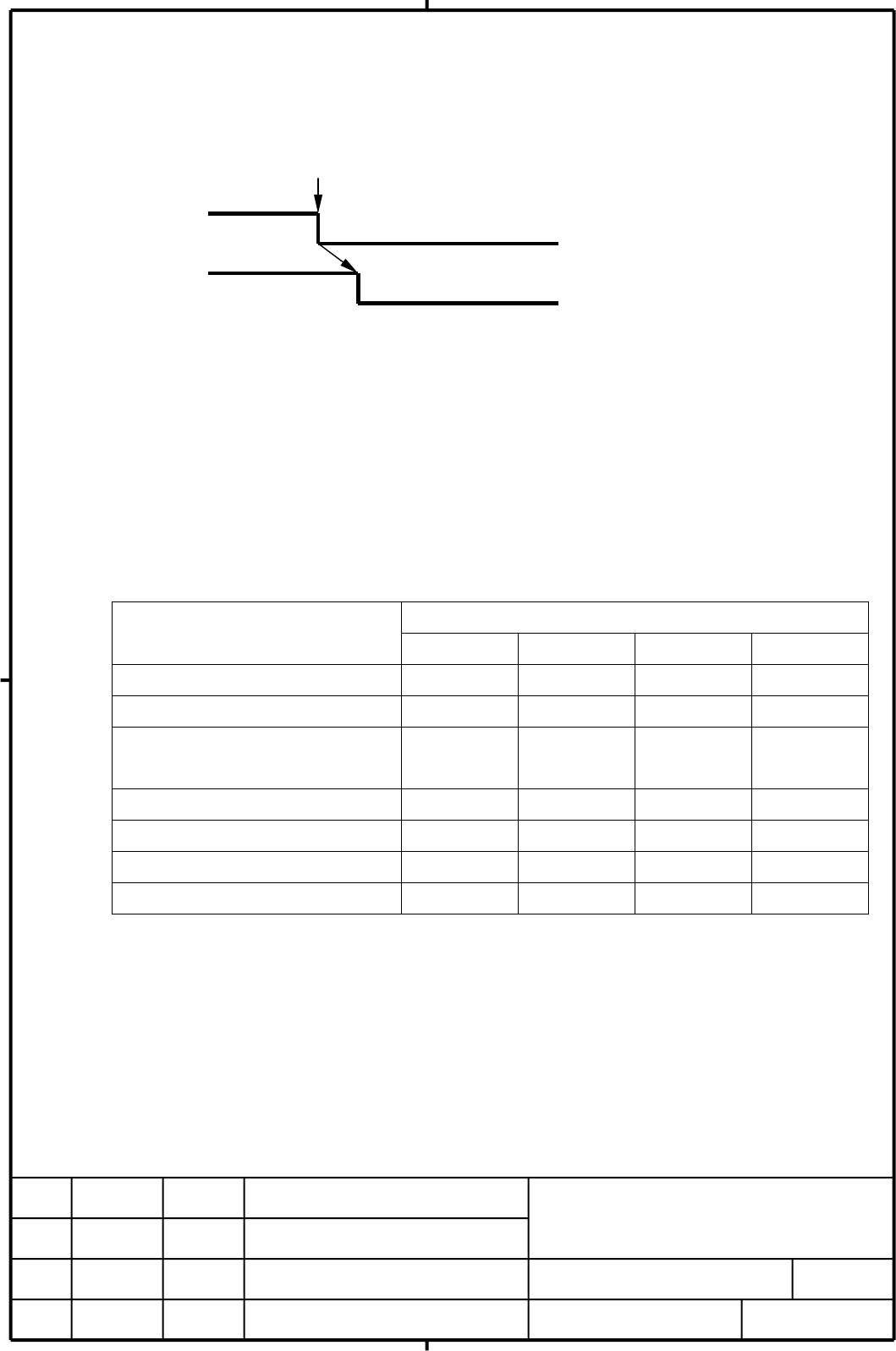

7.2.2 Deceleration of the Spindle to a Stop
When the power failure detection signal (*PFL) changes from "1" to "0", change the spindle control input
signal *ESPA (*ESPB, *ESPC, or *ESPD) to "0".
*PFL
*ESPA
(*ESPB,*ESPC,*ESPD)
Power failure detected
*PFL: Power failure detection signal
Output from connector CX16 of the power failure backup module.
*ESPA: First spindle emergency stop signal (spindle control input signal)
*ESPB: Second spindle emergency stop signal (spindle control input signal)
*ESPC: Third spindle emergency stop signal (spindle control input signal)
*ESPD: Fourth spindle emergency stop signal (spindle control input signal)
Signal address (Note 1)
CNC
*ESPA *ESPB *ESPC *ESPD
FS30i/31i/32i Gn071 #1 Gn075 #1 Gn205 #1 Gn267 #1
FS15i, FS15-B G226 #1 G234 #1 - -
FS16i/18i/16/18 path 1 FS0i/21i,
FS20/21
G071 #1 G075 #1 G0205 #1 G0267 #1
FS16i/18i/16TT/16MM/18TT path 2 G1071 #1 G1075 #1 G1205 #1 G1267 #1
FS16iT path 3 (Note 2) G2071 #1 G2075 #1 - -
FS0-MC/TC, FS0-TTC head 1 G230 #1 G234 #1 - -
FS0-TTC head 2 G1430 #1 G1434 #1 - -
Note 1: The maximum allowable number of spindles differs with the CNC.
Note 2) Applied to 2-CPU, 3-path control.
