Power Failure Backup Module Descriptions Additional Manual Page 65

Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
65
/
93
DESCRIPTIONDESIG.DATE
Power Failure Backup Module
Descriptions
A-53866E-464

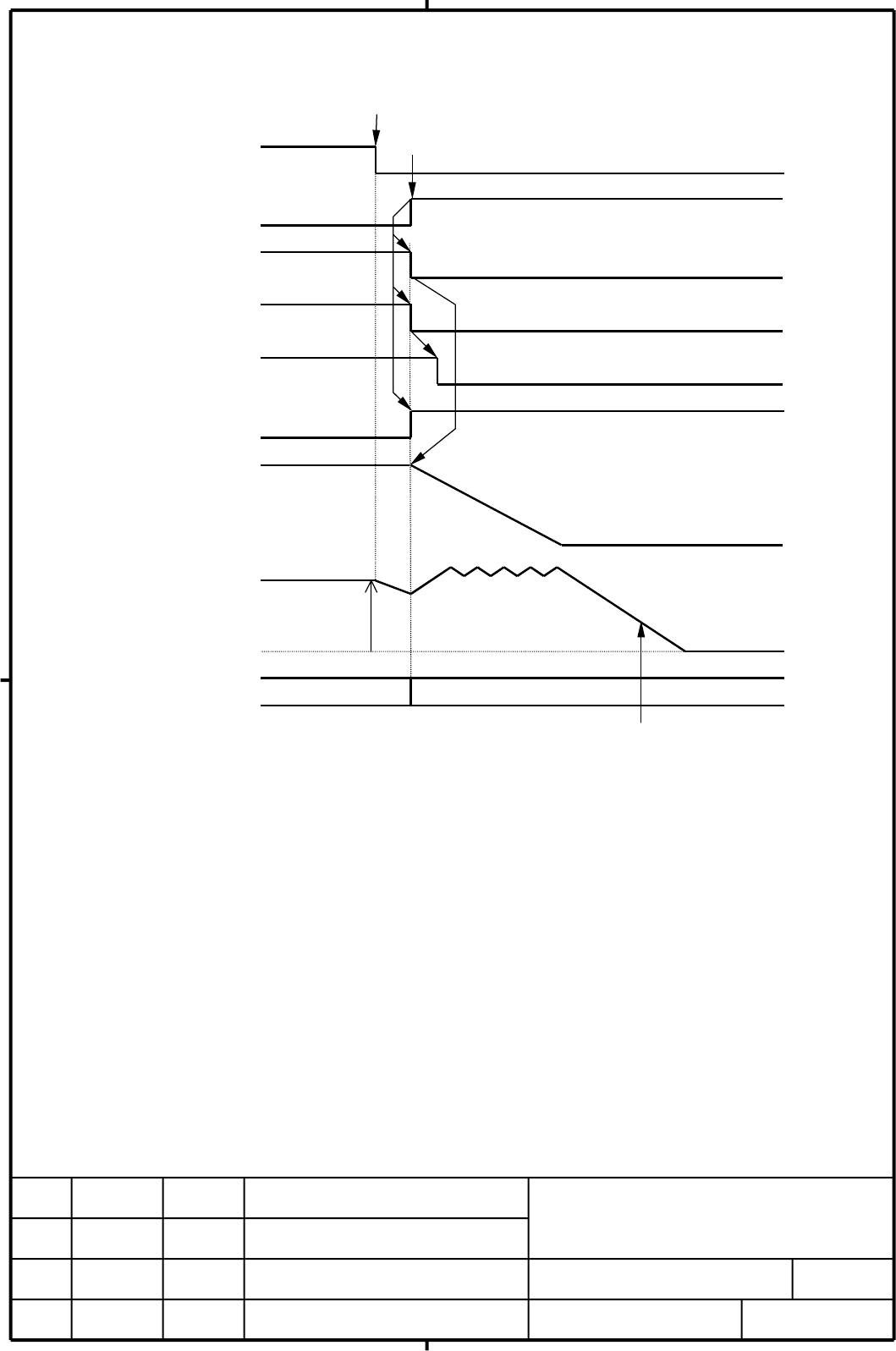

6.2.5 Sequence in the Event of a Power Failure (Resistance Regeneration Control)
This sequence is common to the A06B-6077-H002 (200V type) and the A06B-6091-H002 (400V type).
Input voltage
Power failure detection
*PFL (CX16 B2)
CX17 internal relay Internal relay contact OFF
MCC OFF
Resistive regeneration enable
signal (internal signal) Resistance regeneration enable (Note 1)
(Note 2)
Feed axis TSA
Stoppage on feed axis
DC link voltage (VDC)
LED indication "0" indication "0." indication
Power failure
Power failure detected
0V
AL-5 (DC link low voltage alarm) occurs in the SVM.
AL-3 (DC link fuse blown alarm) occurs in the SP
M
Note 1. Resistance regeneration operation is possible after a power failure is detected. In normal operation,
power regeneration operation is performed, and resistance regeneration operation is not.
Note 2-1. When a power failure is detected, the power failure detection signal *PFL of 0 is output. In
response to this signal, perform ladder processing that gives the feed axis a stop command (such as an
emergency stop signal or a feed hold signal). If the stop command is given as a feed hold signal and
the acceleration/deceleration time constant is large, the sufficient energy for the control after a power
failure (regenerative energy due to deceleration) may not be generated, possibly extending the stop
distance.
Note 2-2. If you need to stop the spindle, supply an emergency stop signal (spindle control signal ESPA,
ESPB, ESPC, or ESPD). See Subsection 7.2.2 for details.
Note 2-3. You must set parameters for reducing the stop distance. See Subsection 7.2.1 for details.
Note 3. After feed axis and spindle stoppages, reduction in the DC link voltage causes AL-5 (DC link low
voltage alarm) in the SVM and AL-3 (DC link fuse blown alarm) in the SPM.
