Power Failure Backup Module
Descriptions
A-53866E-464

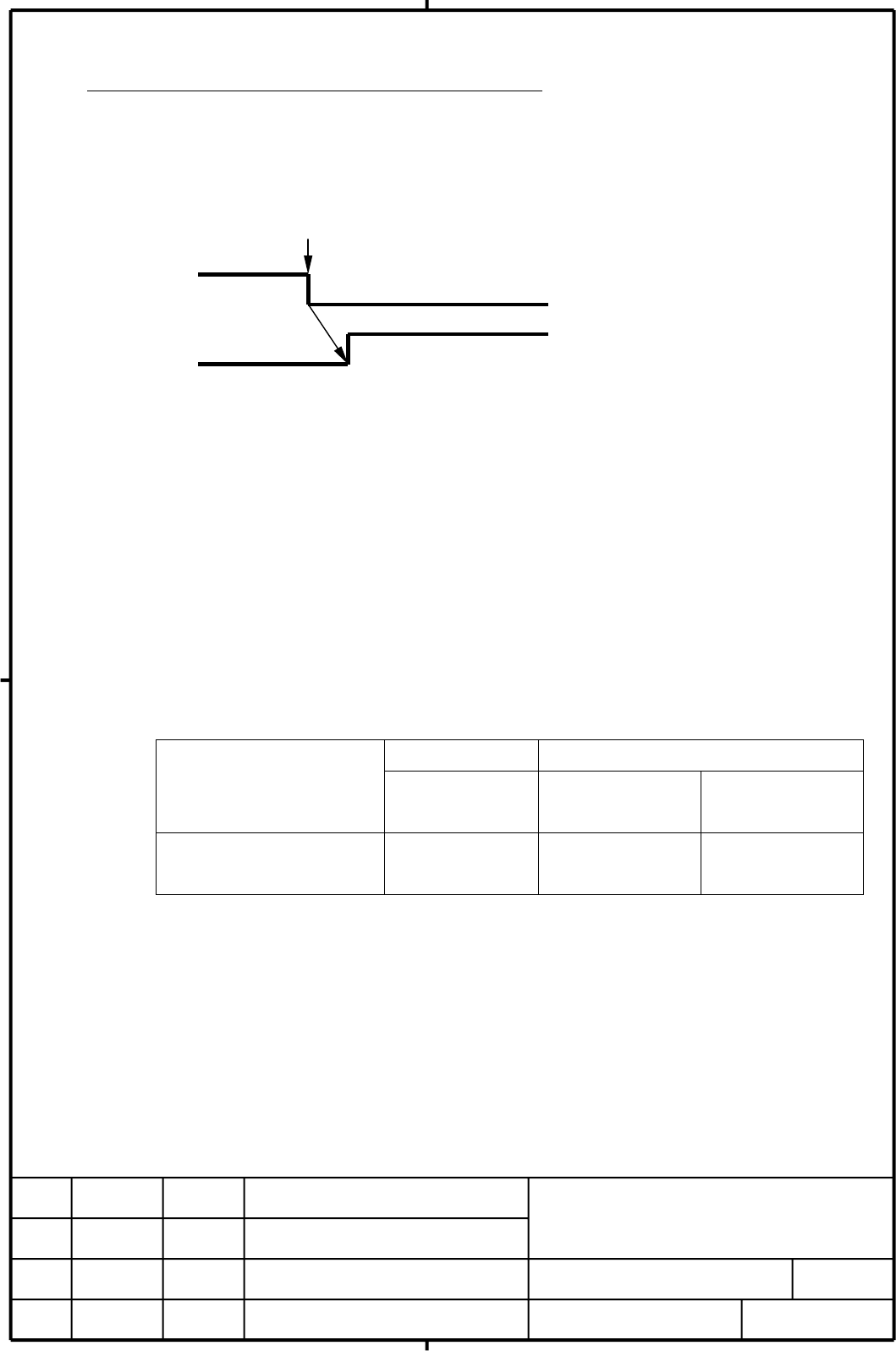

7.1.2 If Using the High-Speed Cycle Cutting Function
The high-speed cycle cutting retract function option is required.
Retraction is performed with the high-speed cycle cutting retract signal (HSRT).
When the power failure detection signal (*PFL) changes from "1" to "0", change the high-speed cycle
cutting retract signal (HSRT) from "0" to "1".
*PFL
HSRT
Power failure detected
*PFL: Power failure detection signal
Output from connector CX16 of the power failure backup module.
HSRT: High-speed cycle cutting retract signal
If, during the execution of high-speed cycle cutting, the cycle is set so that retract operation is
enabled (the seventh bit, retract operation selection flag RT, of the "data type specification
variable" in the header is "1"), high-speed cycle cutting retract operation will start when HSRT
becomes "1".
The retract speed, direction, and travel distance for each axis are the values previously set with
parameters. After the end of retract operation, the system will move to a feed hold or a retract
cycle.
Signal address Parameter number
CNC
HSRT
Retract speed and
direction
Retract amount
(Note)
FS16i/18i/30i/31i
FS16-B/18-B/16-C/18-C
G065 #3 No.7514 No.7515
Note: Specify the number of retract operation distributions in high-speed cycle cutting retract
operation.
If the cycle ends before the number of distributions specified with this parameter is
exhausted, retract operation will be ended at that point. If this parameter is 0, the number of
retract operation distribution is assumed to be infinite, so that retract operation is performed
until the end of the cycle.
For details, refer to the connection manual (functions) and the parameter manual of the CNC
used.
