B-75074EN/04 INSTALLATION 2.PREPARATION

- 75 -

2.1.2 Setting the TCP/IP (Basic Function) for Windows XP

NOTE

The user who makes the setting described in this

section must have the "administrator privilege".

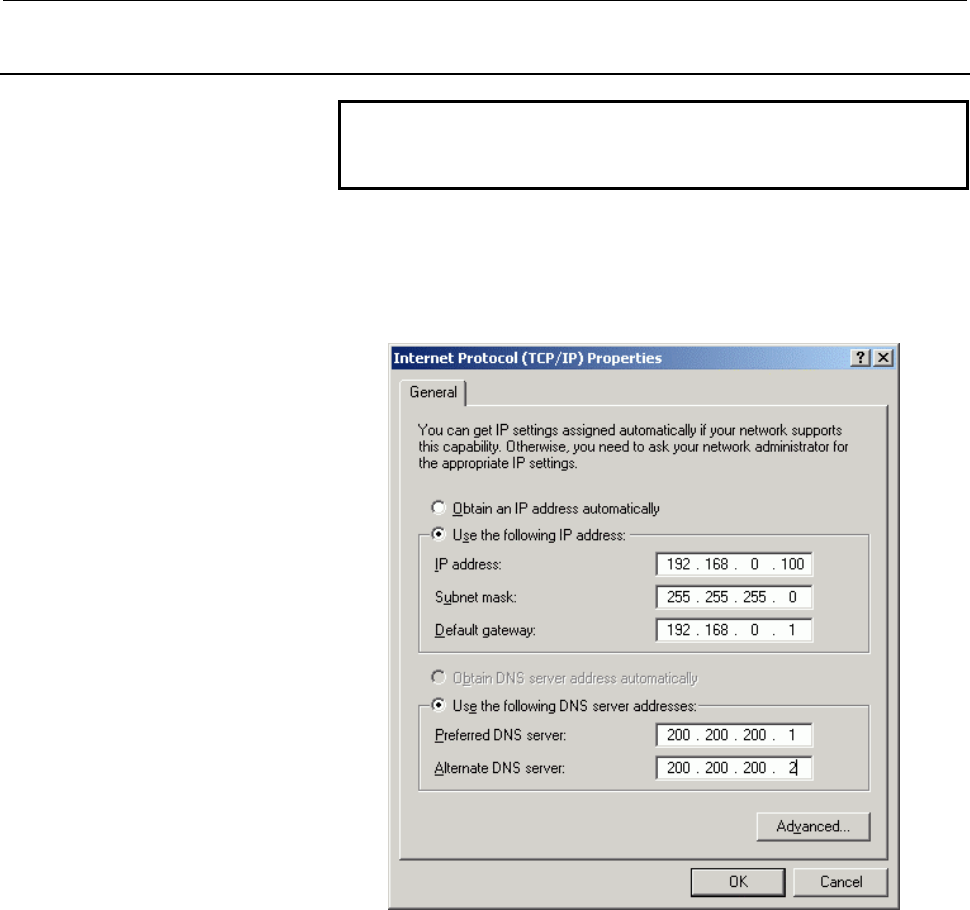

To communicate with NCs using Ethernet, set the TCP/IP.

1. Select [Start] → [Settings] → [Control Panel], and activate

[Network].

2. Select [Network and Dial-up Connections] and activate [Local

Area Connection].

The IP address and subnet mask must always be set.

The default gateway setting may be required depending on the

network configuration in use. Contact the network administrator in

your company.

Also see Section 3.4, "NETWORK CONFIGURATION," in Part I,

"GENERAL."

To use a dial-up router with the i CELL mail or Web function, set the

IP address of the dial-up router for the default gateway.
