2.SCREEN OPERATION OPERATION B-75074EN/04

- 240 -

Two methods of switching

Each screen is divided into functions. On each screen, a machine

number to be displayed can be selected. Two methods are available for

switching the screen display.

One method uses the overview menu. The procedure is:

<1> From the overview menu, select a machine to be displayed.

<2> When a machine is selected, the screen list buttons appear. Choose

a desired one from the screen list buttons.

The other method uses the function selection tabs. The procedure is:

<1> Select the tab of a desired function.

<2> On the displayed screen, select a machine to be displayed.

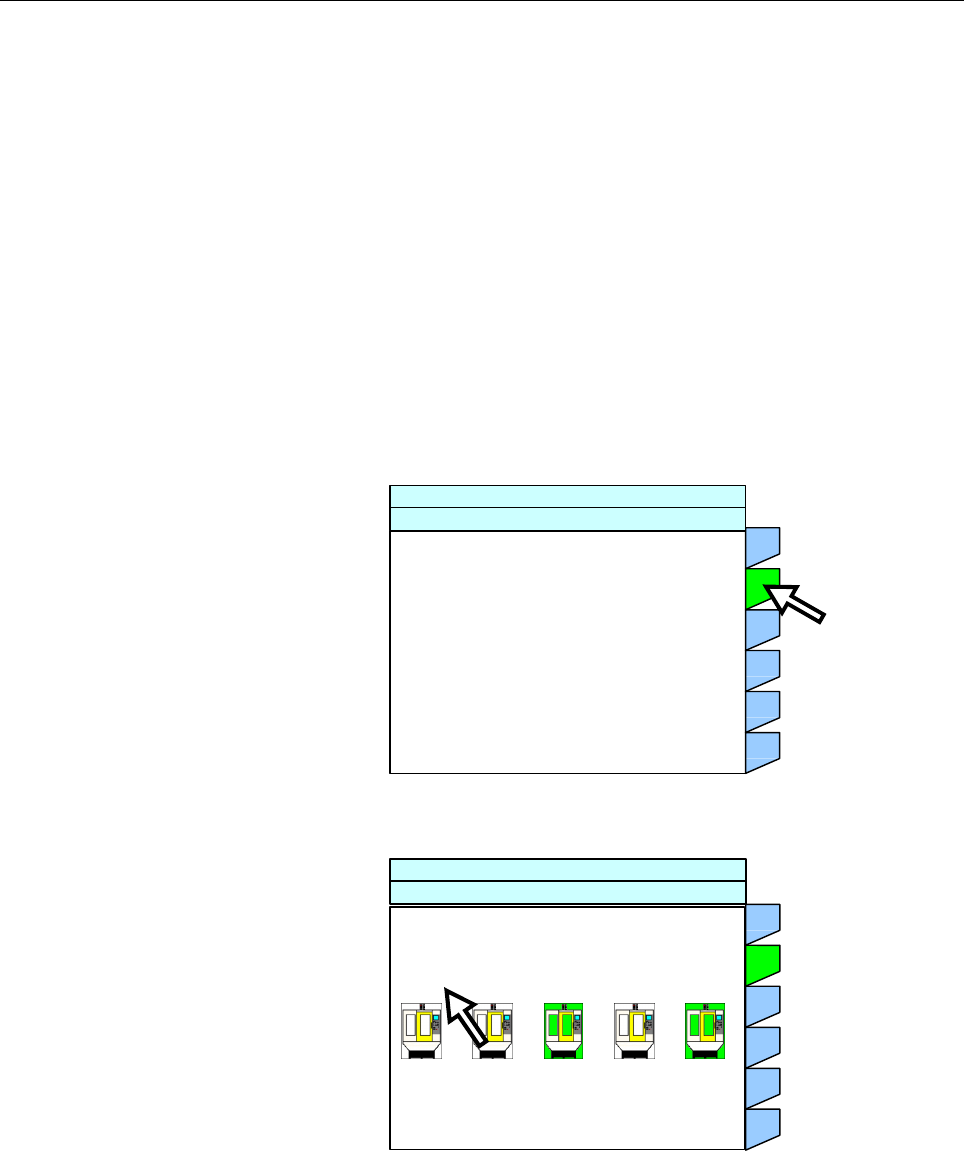

Switching using the overview menu

By using an example of displaying the workpiece process result screen,

the screen switching method is described below.

<1> Select the overview tab.

rbitrary screen

XXXXX screen

XXXXXXXX

<2> The overview screen appears. Click the status display indicating

the path number of a machine to be displayed.

MCN001 MCN002 MCN003 MCN004 MCN005

Overview Screen

Select a desired machine.
