FANUC i-Cell Operators manual Page 81

Operators manual

Page of 739

/ 739

B-75074EN/04 GENERAL 5.OPERATION MONITOR

- 55 -

5.3 TOOL LIFE MANAGEMENT

This screen has the same effect as the tool life screen of the NC. Two

types of display are available: tool group list display and tool group

detail display.

NOTE

1 The NC must have the tool life management option

selected. With Series 0i-MODEL B/C, the tool life

management function can be used by setting bit 0 of

parameter No. 8132 to 1.

2 There are not the tool life management function and

option for that in Power Mate i.

3 The FOCAS2/Ethernet function is required.

4 This function for Series 30i /31i /32i is under

development.

5.3.1 Display Information

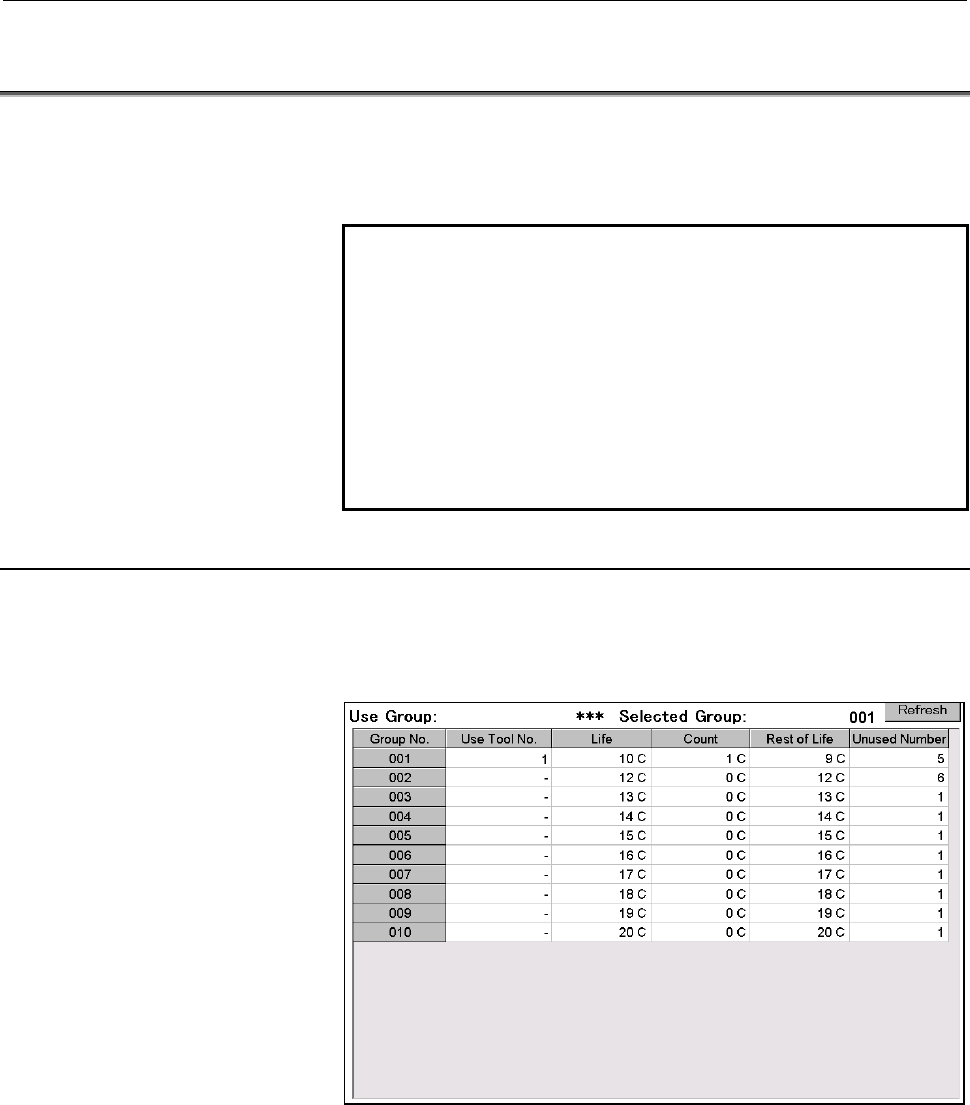

Tool group list display

A list of tool groups registered with a specified machine and path is

displayed.

The details of a tool group number selected on this display screen can

be viewed on the tool group detail display screen.
