B-75074EN/04 OPERATION 7.WORKPIECE PROCESS RESULTS

- 325 -

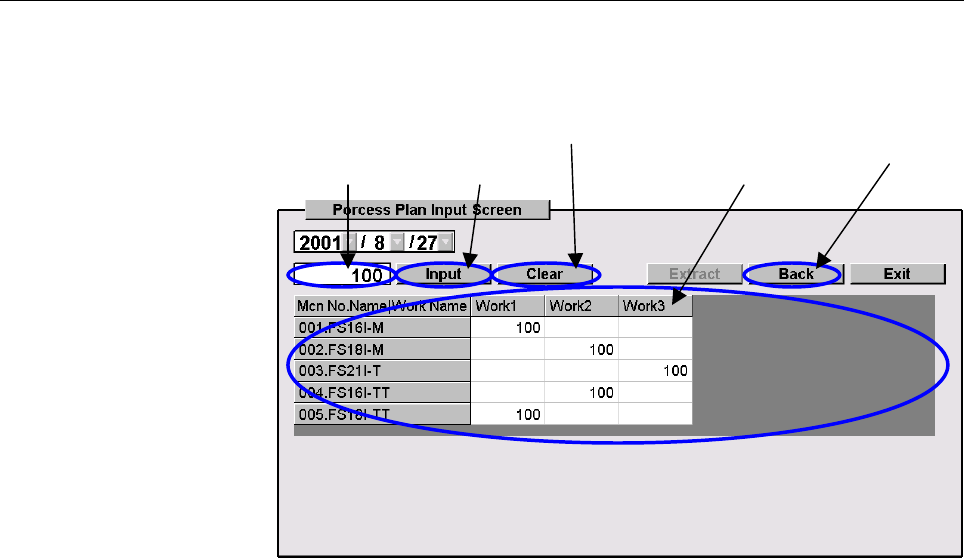

- Process plan input screen

Input planned counts for extracted machines and workpieces.

A. Planned process count input box

Input a planned count. After inputting a value, be sure to press the

Enter key.

B. Planned process count input button

This button inputs a planned count into a cell selected from the

process plan selection table.

C. Planned process count clear button

This button clears the planned count of a cell selected from the

process plan selection table.

D. Process plan selection table

This table displays a selection table of extracted machines and

workpieces. If planned process counts are already input, their

values are displayed. Select a cell from this table. Multiple cells

can be selected. Moreover, multiple rows and columns can be

selected at a time by selecting the fixed cell.

E. Button for returning to the extraction screen

This button returns the screen display to the machine/workpiece

extraction screen.

. Planned process

count input box

B. Planned process

count input button

C. Planned process count clear button

E. Button for returning to

the extraction screen

D. Process plan selection table
