B-75074EN/04 APPENDIX B.NC SETTING

- 515 -

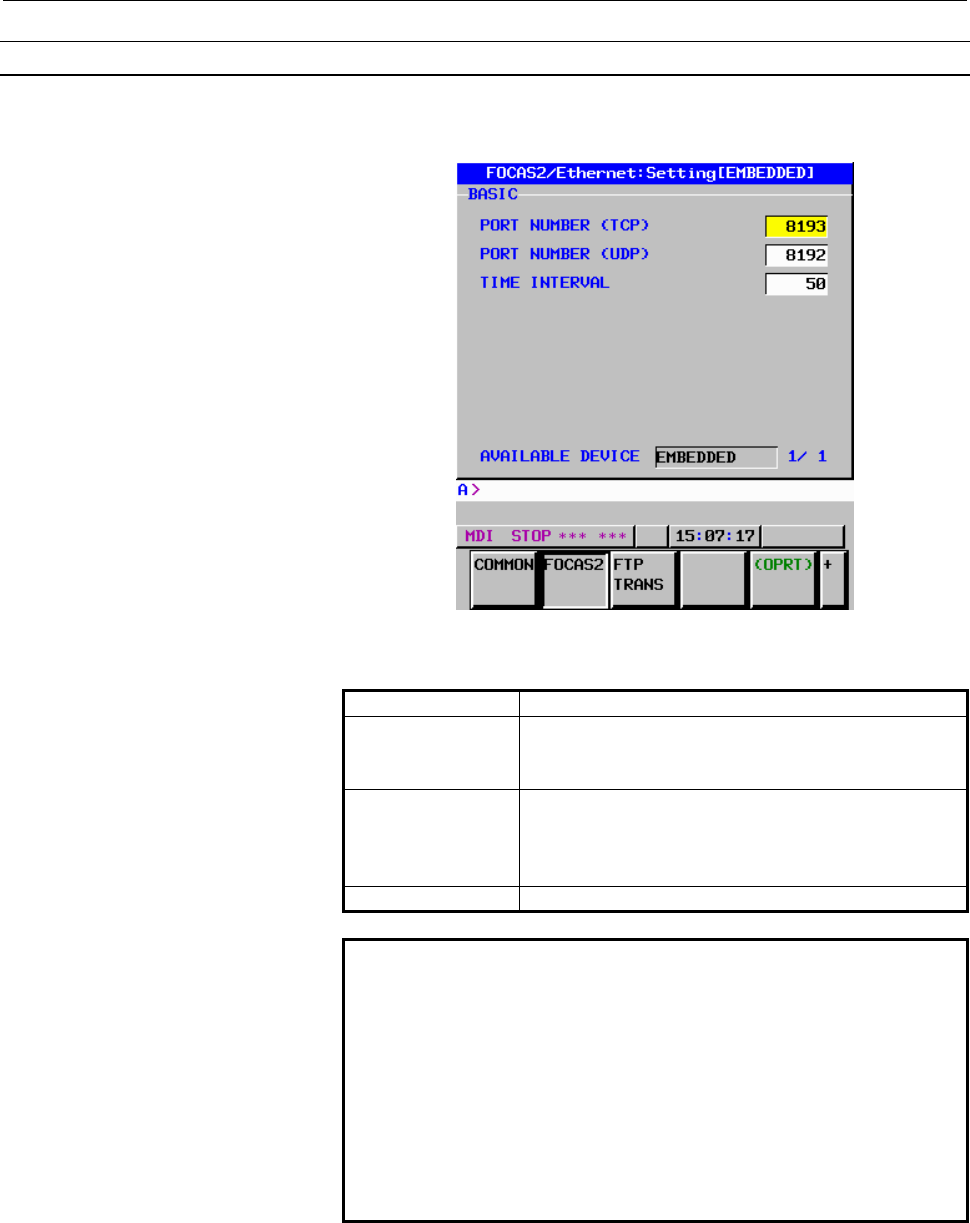

FOCAS2 screen

Press soft key [FOCAS2] to display the FOCAS2 screen.

FOCAS2 screen

Setting item

Item Description

PORT NUMBER

(TCP)

Specifies the port No. to be used by the

FOCAS2/Ethernet functions, within a range of 5001 to

65535.

PORT NUMBER

(UDP)

Enter the value that is indicated in the [UPD number

for C4 service] dialog box displayed during installation.

Refer to Item "UDP number for C4 service," in Section

3.2 of Part II for details.

TIME INTERVAL Set 50.

NOTE

1 The unit of TIME INTERVAL is 10 ms. The

allowable input range is 10 to 65535. Values less

than 100 ms cannot be set.

2 If a smaller value is set in TIME INTERVAL, the

communication load can increase to adversely

affect the performance of the network.

Example) If 100 is set, broadcast data is

transmitted at intervals of 1 second (1000

ms) (= 100 × 10).
