FANUC i-Cell Operators manual Page 638

Operators manual

Page of 739

/ 739

6/9

SHEET

DESCRIPTION

DESIGN

DATE

EDIT

FANUC LTD.

DRAW.NO.

Matsukura

Newl

istered

TITLE:

FANUC CIMPLICITY i CELL

OPERATOR’S MANUAL

05.05.19

B-75074EN/04-1

2 BASIC FUNCTIONS

(--- 3rd paragraph

---)

It is necessary to make it a development server temporarily by using OEM

Key when a setting is changed when run time server of CIMPLICITY is

used.

Refer to the chapter "System management", in the CIMPLICITY HMI Plant

Edition online help for the details of OEM Key.

2.2.1 Opening the Configuration Dialog Box

To open the Configuration dialog box of i CELL, from the Windows Start

menu, select Start, Program, CIMPLICITY i CELL, and Configuration.

NOTE

Please don't operate points or edit scripts on the CIMPLICITY

workbench during iCELL setting screen is running.

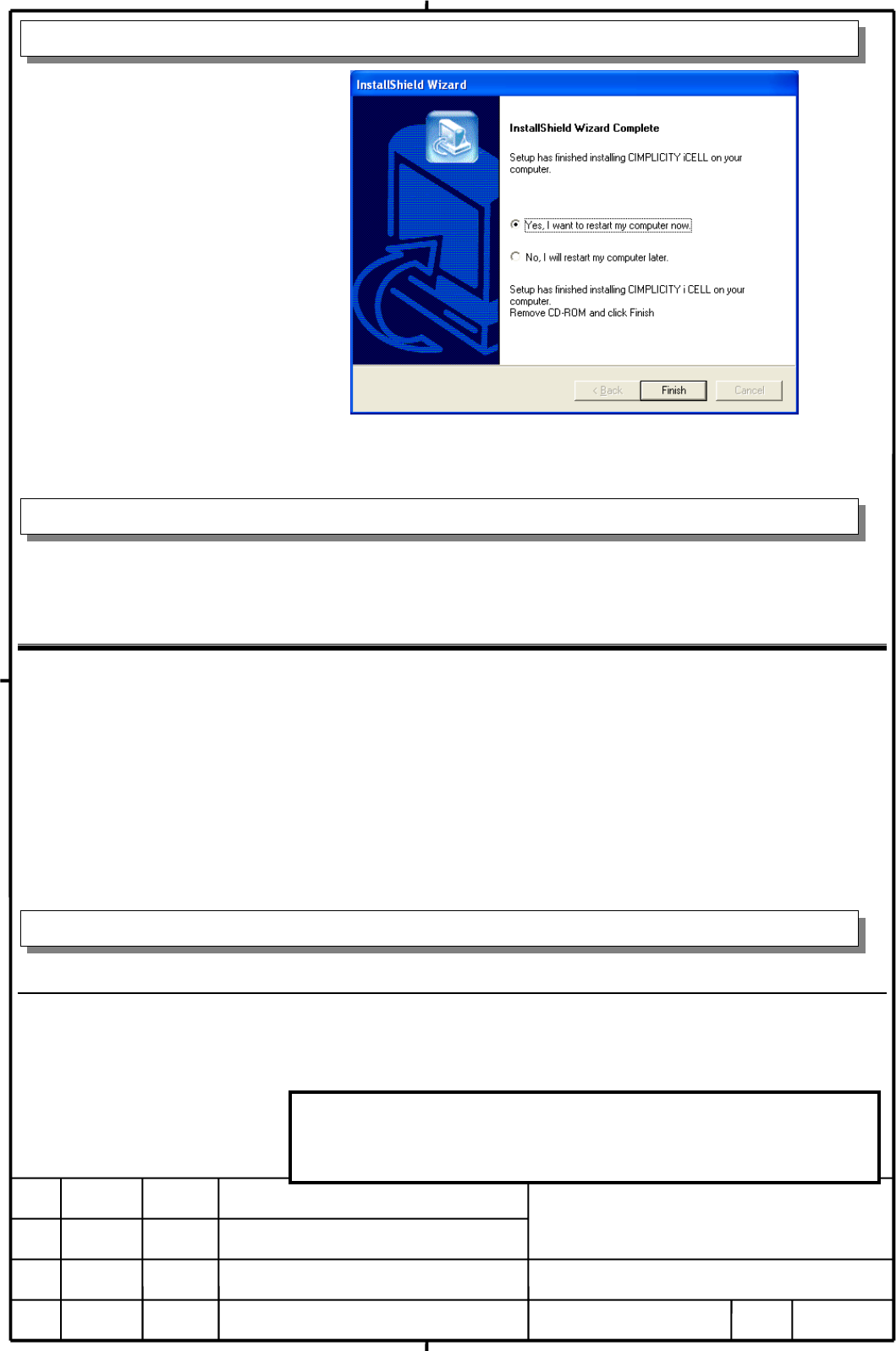

(10) Replace the following bitmap in item 7 of the "II.INSTALLATION 3.1 INSTALLATION"

(12) Add the following NOTE to the "III.SETTING 2.2.1 Opening the Configuration Dialog Box"

(11) Replace the following explanation of the "III. SETTING 2. BASIC FUNCTIONS"
