B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 269 -

5.2.4 Browsing, Editing and Creating New Files in the PC

Browsing Files in the PC

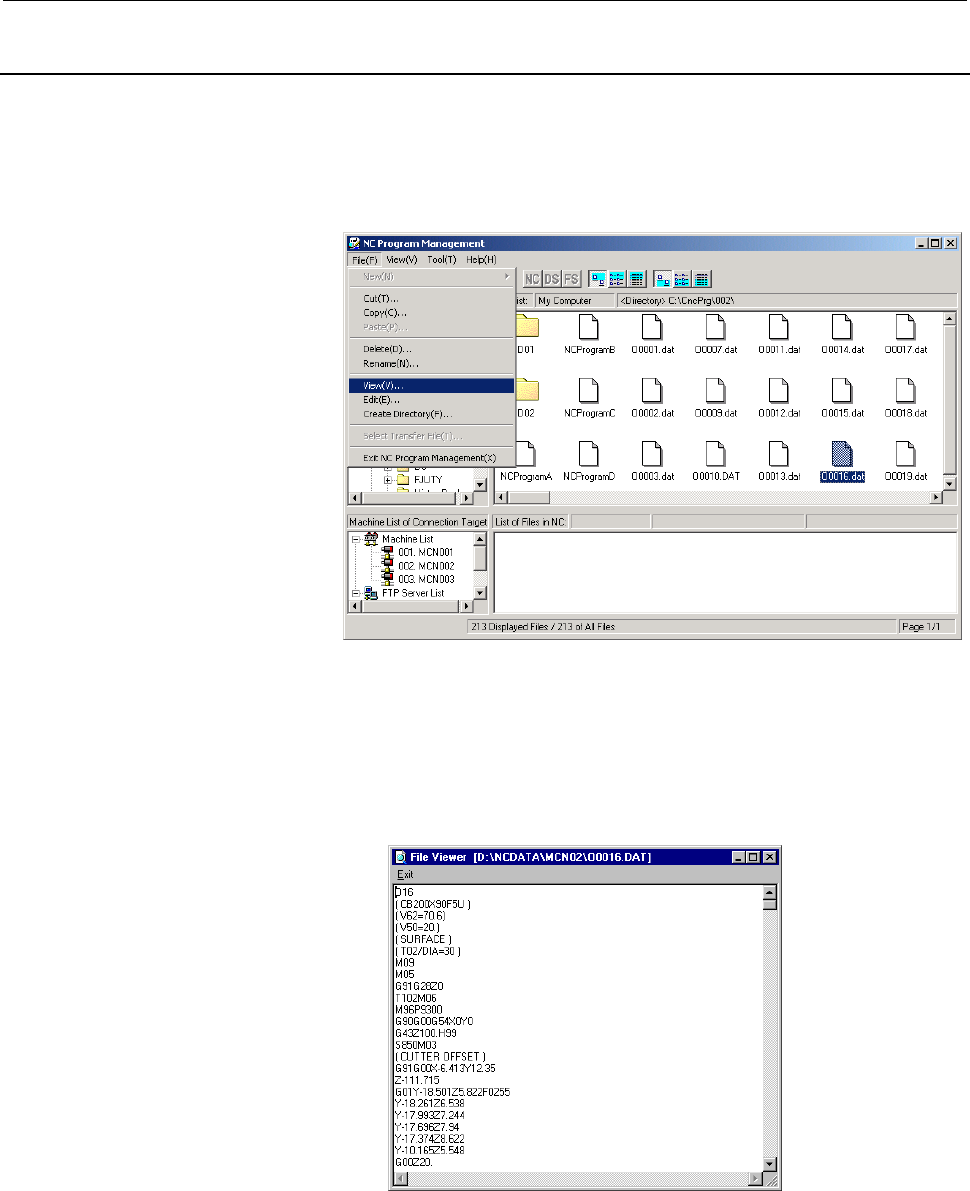

1 Choose the file you want to browse in the PC side File List.

2 In the [File] menu or the menu displayed by right-clicking on the

selected file, click the [View] command. Then, the viewer set for

the selected file is activated.

• When the file is selected in the File List, the Edit File List

screen is started. Refer to 5.3 “EDIT LIST FILE SCREEN

OPERATIONS” for details of operations in the Edit File List

screen.

• If an item other than the list file is selected, the viewer set in

the [Option] dialog box is activated.

To terminate reference operation, click [Exit] on the menu.
