5.BACKUP AND RESTORATION INSTALLATION B-75074EN/04

- 108 -

5.2 RESTORATION

To restore data from the backup file, follow the procedure described

below.

5.2.1 Installing i CELL

If the PC is repaired, and Windows is re-installed in it, i CELL must

also be re-installed.

If you have not re-installed i CELL, start with the following

subsection.

5.2.2 Copying the Backup Archive File

Copy the backup archive file created as described in Section 5.1,

"BACKUP", back to the place where the file was initially stored.

If the file has been divided and saved to more than one floppy disk,

follow this procedure to copy it from the floppy disks to the hard disk.

Restoring the backup archive file divided and saved to more than one floppy

disk

(1) Set the first of the floppy disks that hold the backup archive file

into the floppy disk drive of the PC, and clock the <Restore to

HDD> button.

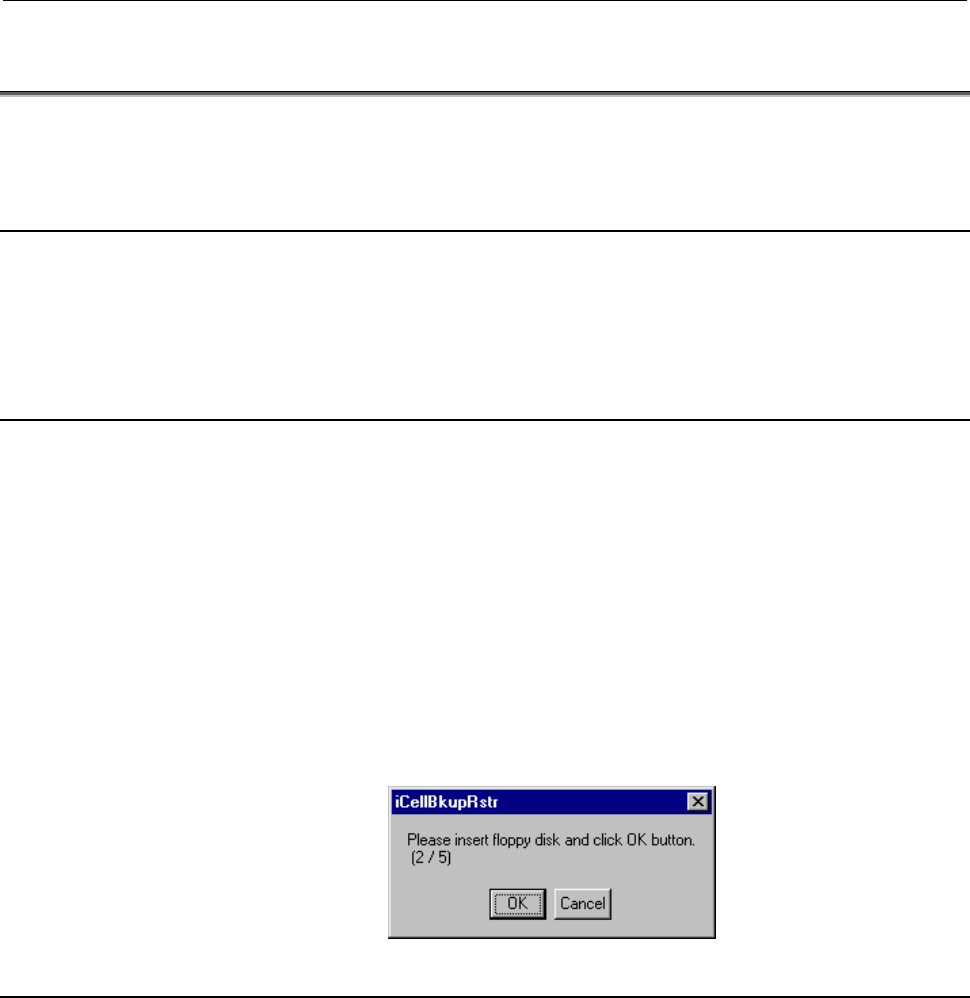

(2) When you are prompted to insert another floppy disk, set the

floppy disk with the correct sequence number, and click the

<OK> button.

5.2.3 Selecting Information to be Restored

In the "Select Backup/Restore Directory" frame, select a desired

option button.
