B-75074EN/04 USER CUSTOMIZE 3.DATABASE SPECIFICATIONS

- 425 -

3 DATABASE SPECIFICATIONS

This chapter describes the specifications of the database (file name:

iCELL.mdb) used with the

i CELL.

3.1 OVERVIEW

The

i CELL database stores data used for the Machining Result screen

and Workpieces Process Result screen. By operating this database, a

display screen different from the one used with the

i CELL can be

created. Note, however, that this database allows only read operation.

When the NC is to collect information not available from the

i CELL by

using the CIMPLICITY function, the user should create a database

separate from the

i CELL database.

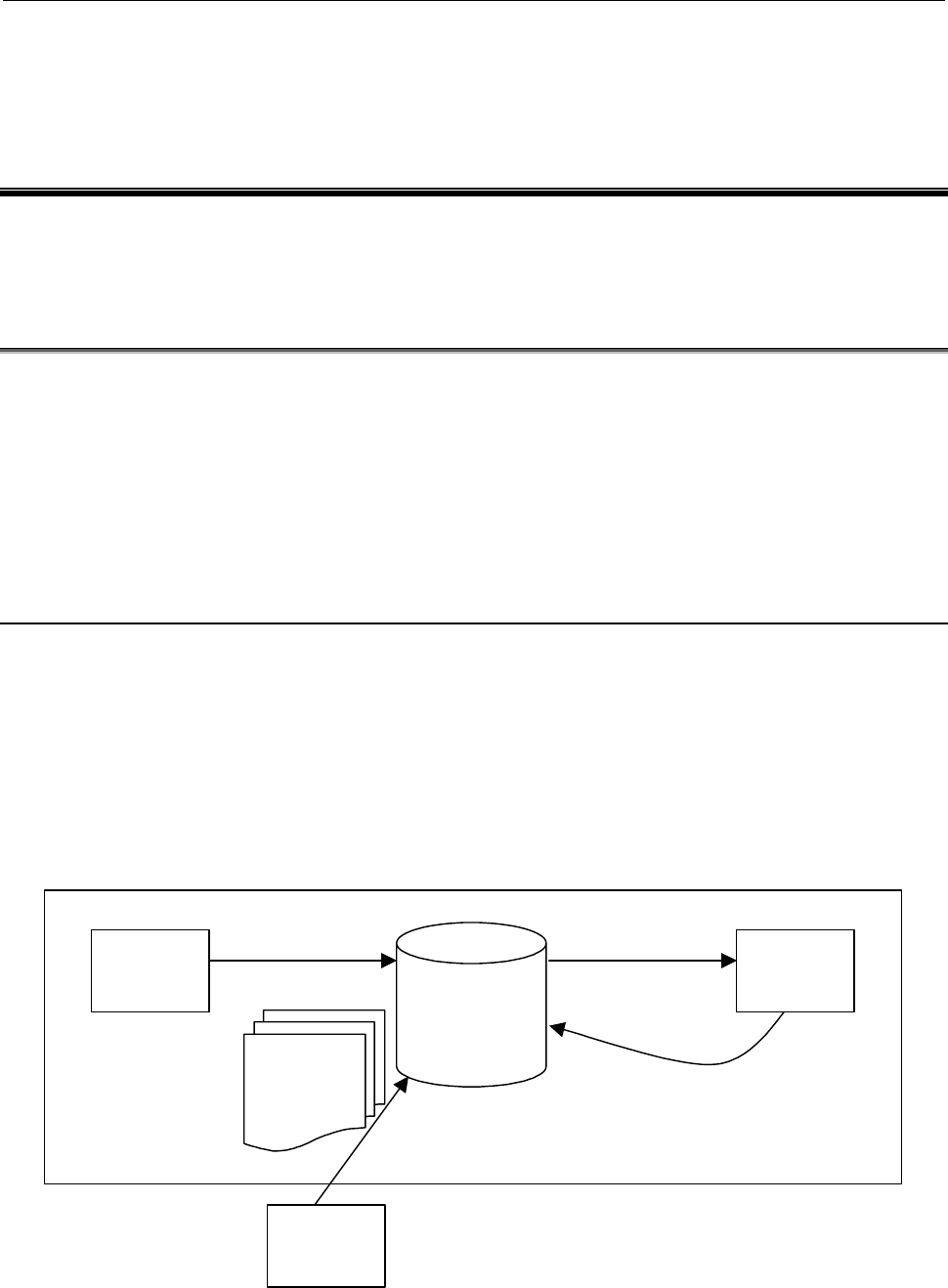

3.1.1 Operating the Database with the i CELL

With the

i CELL, the database is operated as described below.

<1> On the

i CELL setting screen, information to be stored from the

NC in the database is set.

<2> When the

i CELL is started, information is acquired from the NC

with background scripts then is stored in the database.

<3> When the i CELL is started, data is acquired from the database,

then is processed and displayed on the screen.

<4> Some

i CELL screens write to the database.

CELL

setting

screen

<1> <3>

<2>

Database

iCELL.MDB

CELL

screen

<4>

Back

ground

script
