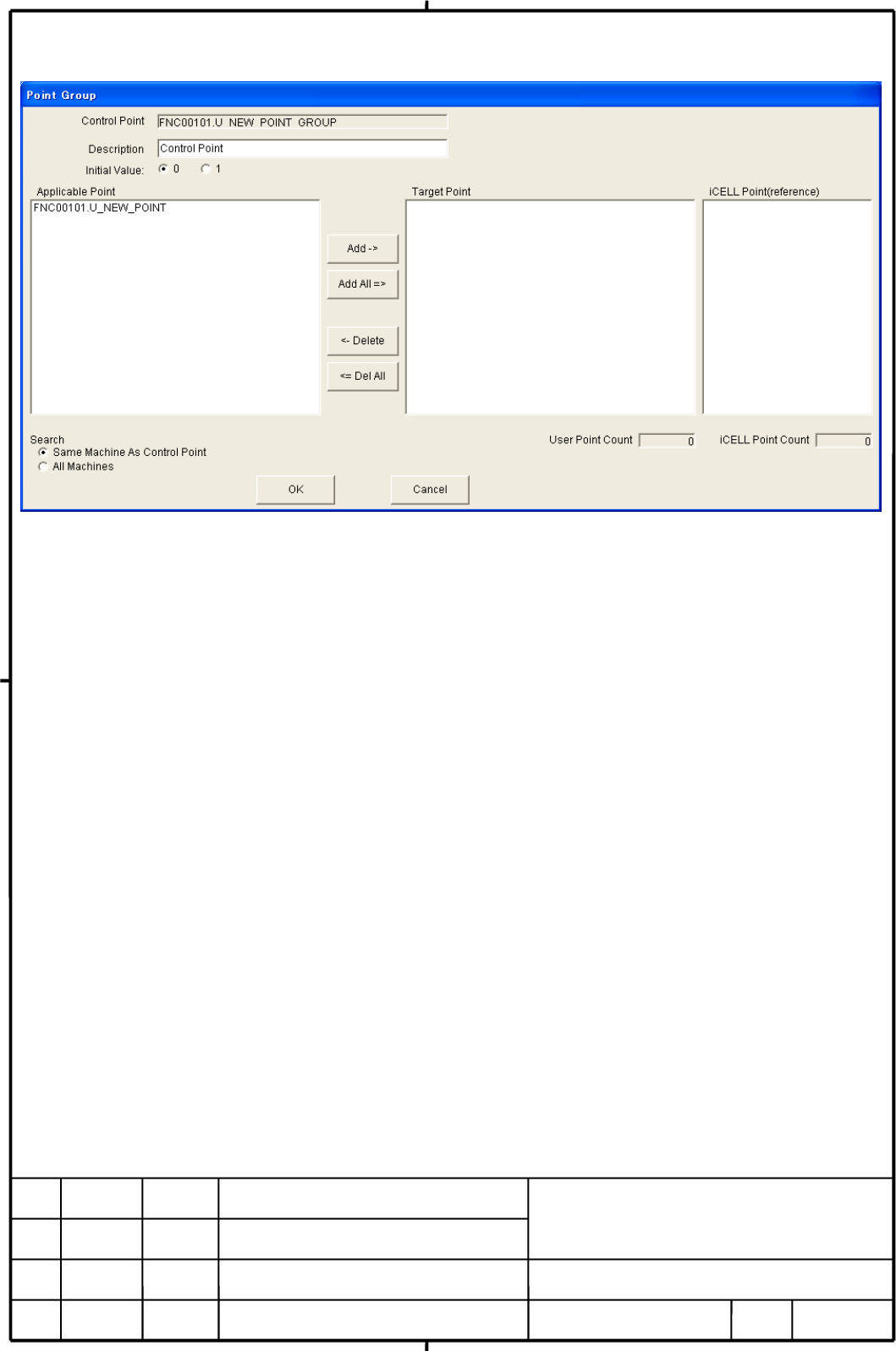

[Point Group]

Control Point

Name of the control point.

The name set in the Create Point Group Control

Point dialog box is displayed.

Description

Allows description of the point to be created.

Initial Value

Initial value of the control point.

Specify 0 or 1. If the value of the control

point is 1 (True), reading from the points in the

group with the control point is performed. If

the value is 0 (False), reading from the points

in the group is not performed.

Applicable Point

Displays a list of points that can be set with the

control point.

Those points that have already been set with

other control points are not displayed.

Specify the condition for the points that can be

displayed in the Applicable Point area.

Target Point

Displays a list of points to be set with the

control point.

User Point Count

Number of points to be set with the control

point.
