B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 133 -

2.6 COMMUNICATION

2.6.1 Setting up Communication

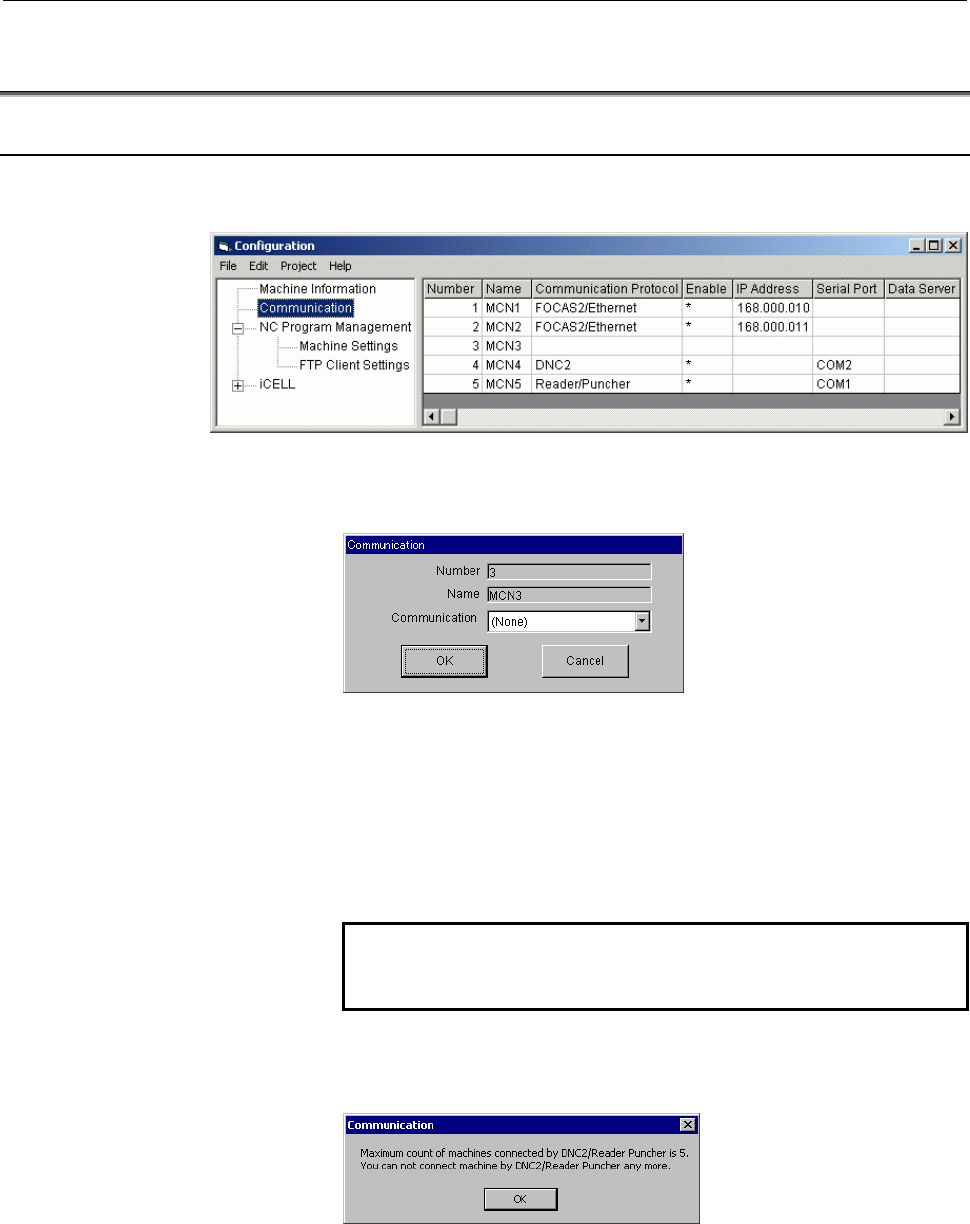

Selecting “Communication” from the tree lists, in the grid, the

communication settings for the machines that have been set up.

If you double-click the row of a machine in the grid, or if you click the

row of a machine in the grid and select Edit from the menu bar, then

Property from the Edit menu, the Communication dialog box appears.

Shown above is an example of selecting a machine for which no

communication protocol has been set. In this dialog box, select a

communication protocol to be used. Selecting a communication

protocol displays a setting screen specific to the selected

communication protocol. A setting screen specific to a communication

protocol appears also if you select a machine for which the

communication protocol has been set.

NOTE

If no machine name is set up, it is impossible to set

up communication.

If the selected DNC2 or Reader/Puncher communication protocol does

not match the number of machines you tried to connect, the following

dialog box appears.

Set up the communication protocol within a range of the number of

machines connected using DNC2 or Reader/Puncher. Alternatively,

add an option for connecting additional CNCs to increase the number of

machines that can be connected using DNC2 or Reader/Puncher.
