B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 125 -

2.2.7 Stopping and Updating the i CELL Project

Stopping

To stop the i CELL project, follow this procedure.

<1> From the Windows Start menu, select Start, and Program,

CIMPLICITY i CELL, then i CELL Project. The CIMPLICITY

workbench appears.

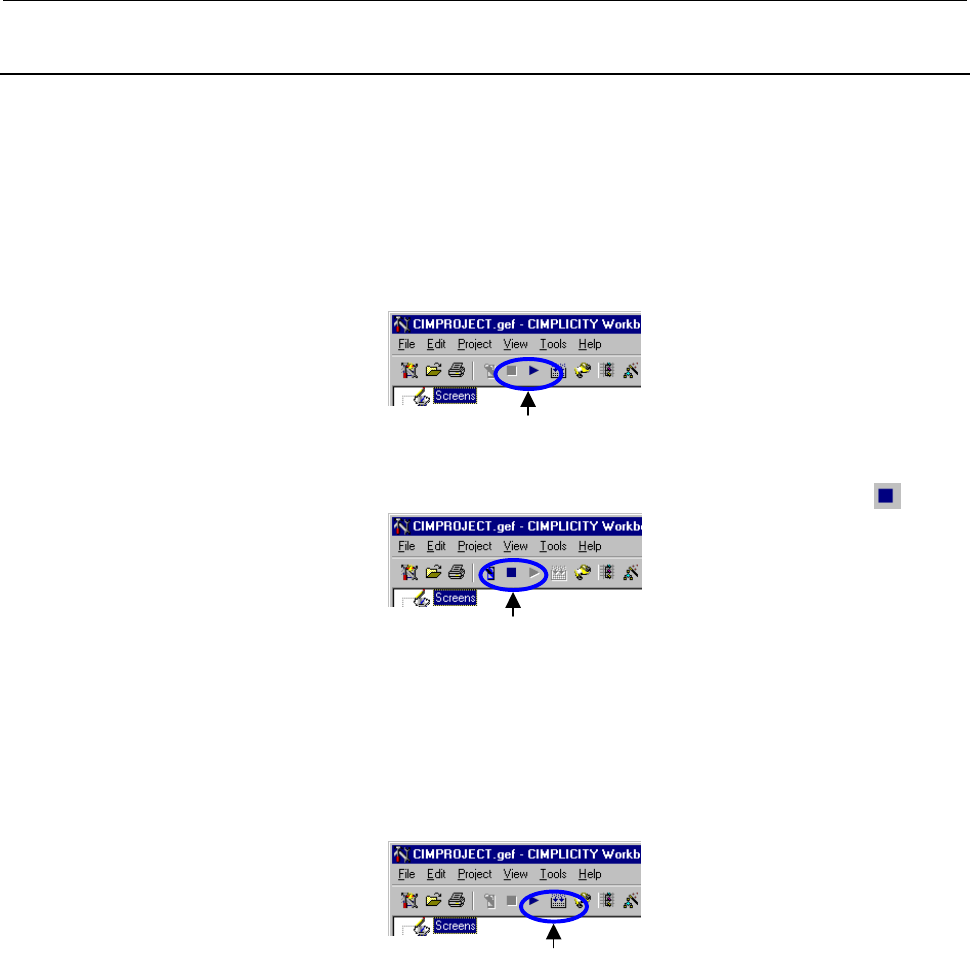

<2> On the CIMPLICITY workbench, check the status of the toolbar.

If the toolbar appears as shown below, it means that the i CELL

project is at a stop. Nothing need be done.

If the toolbar appears as shown below, it means that the i CELL

project is running. To stop the project, click the button

<3> Exit the CIMPLICITY workbench.

Updating

To update the i CELL project, follow this procedure.

<1> Start the CIMPLICITY workbench.

<2> On the toolbar of the CIMPLICITY workbench, click the setting

update button.

<3> Exit the CIMPLICITY workbench.

If the project is not running when you attempt to open the Configuration

dialog box of i CELL, it is started automatically.

Check these icons.

Update button
