B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 161 -

2.9 i CELL MACHINE

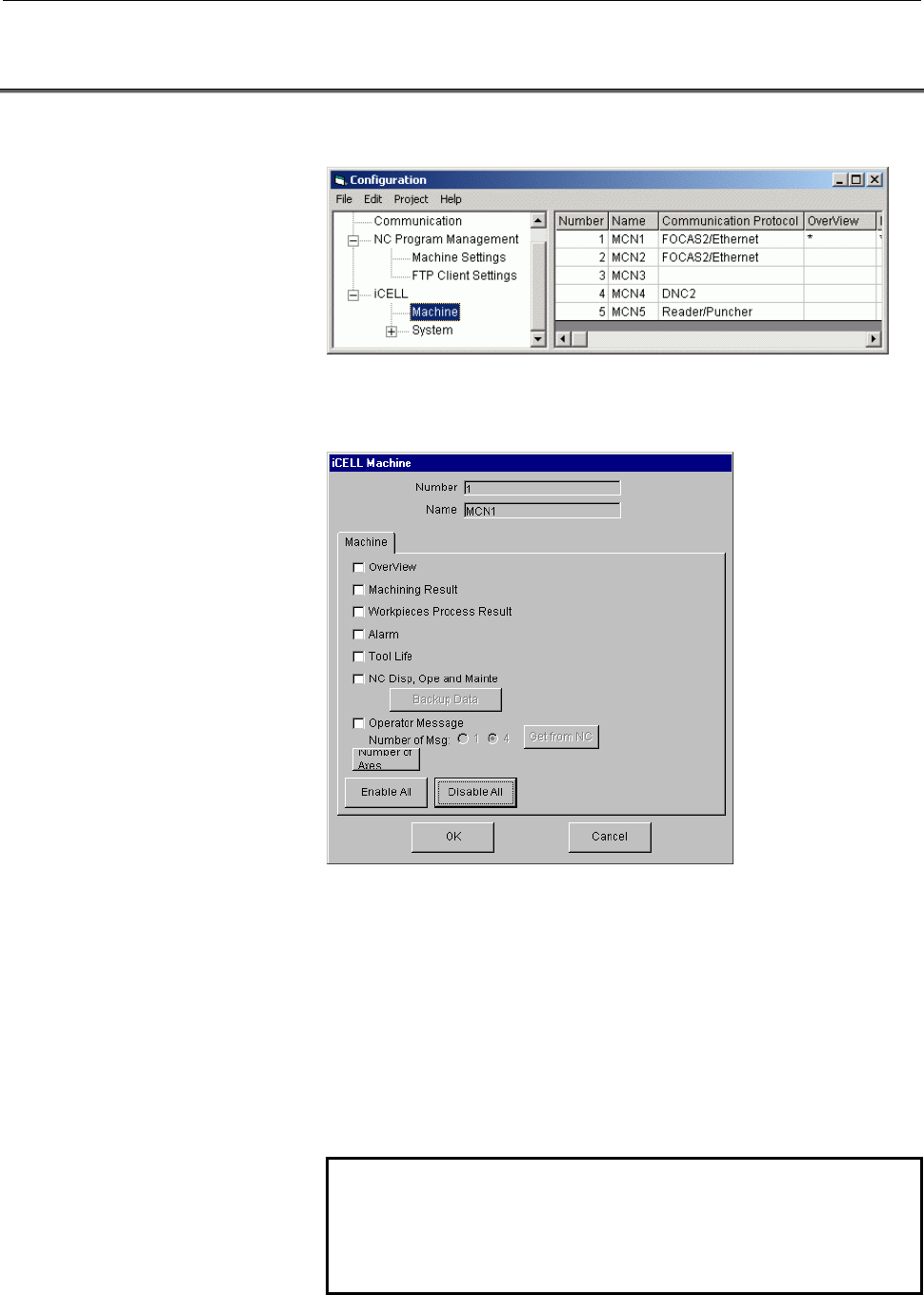

Selecting i CELL and Machine from the tree lists, in the grid, the i

CELL machine settings for the machines that have been set up.

If you double-click the row of a machine in the grid, or if you click the

row of a machine in the grid and select Edit from the menu bar, then

Property from the Edit menu, the i CELL Machine dialog box appears.

This dialog box displays the settings for the machine selected from the

grid. Turn on the i CELL functions used for that machine. The overview,

machining result, workpiece process result, alarm, tool life functions,

NC Disp, Ope and Mainte and Operator Message correspond to the

respective i CELL screens.

Clicking the Enable All button enables all the functions. Clicking the

Disable All button disables all the functions.

The overview and alarm functions are turned on automatically when

any other function is turned on because they are basic functions.

NOTE

The functions that can be selected depend on the

types of the communication protocol and NC that

are in use. See Chapter 3, "OPERATING

ENVIRONMENT", in Part I, "GENERAL".
