B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 275 -

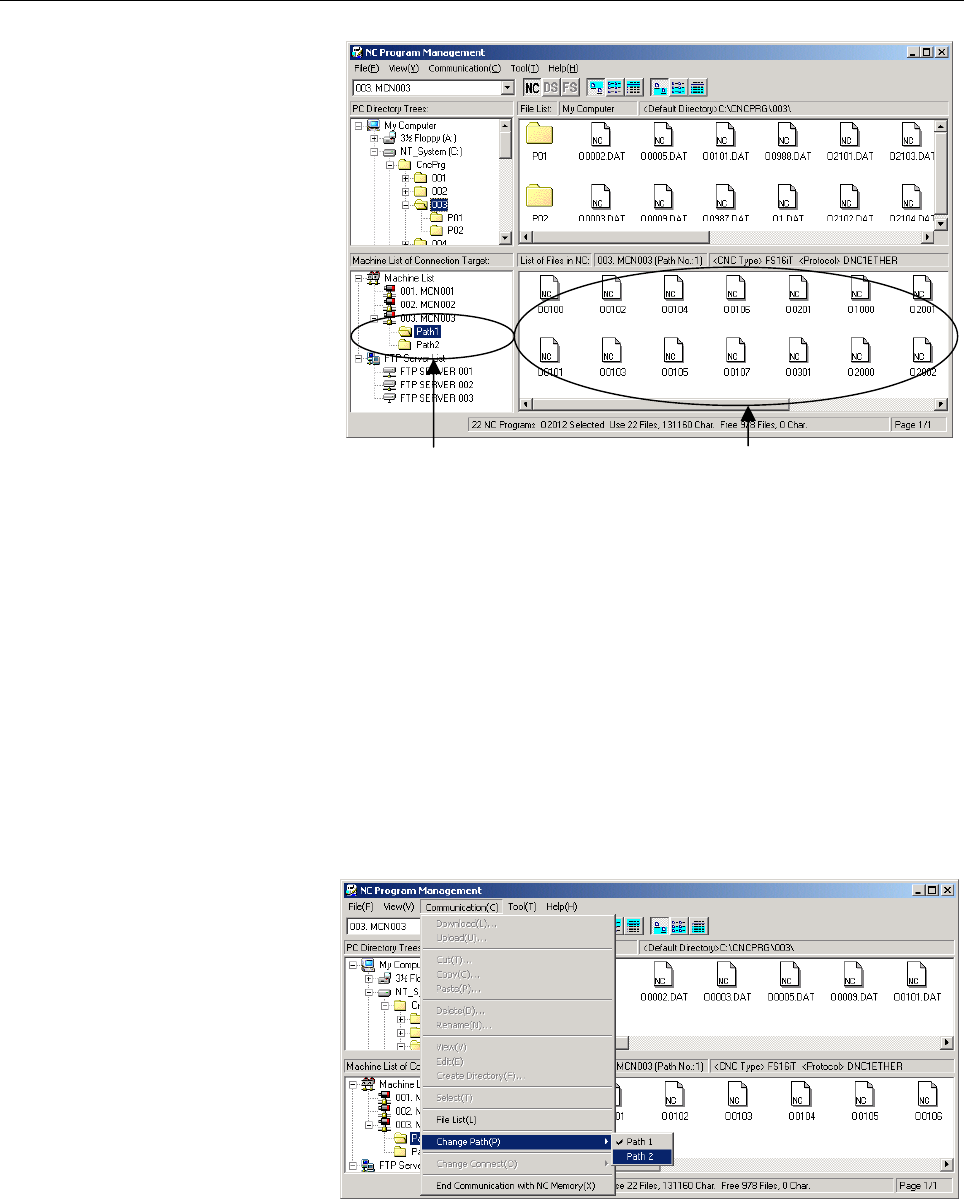

Displays path information o

machine MCN003.

Displays NC programs stored in NC

memor

of machine MCN003.

• When the [File List] command of the [Communication] menu

is clicked, the File List of the NC memory is updated.

Changing the NC path engaged in communication

When the number of paths of the connection destination machine is set

to two or more on the i CELL setup screen, the path to communicate

with can be changed. When connection to multiple paths is disabled by

option setting, however, the path cannot be changed. For details, see the

description of the communication tab in Subsection 5.2.10, "Setting

Options".

1 When the [Change Path] command in the [Communication] menu

is pointed to, a list of paths is displayed. Click the path with which

you want to communicate.
