B-75074EN/04 APPENDIX A.HOW TO INSTALL AND REGISTER CIMPLICITY

- 473 -

If you want to cancel your request for installation, select Cancel.

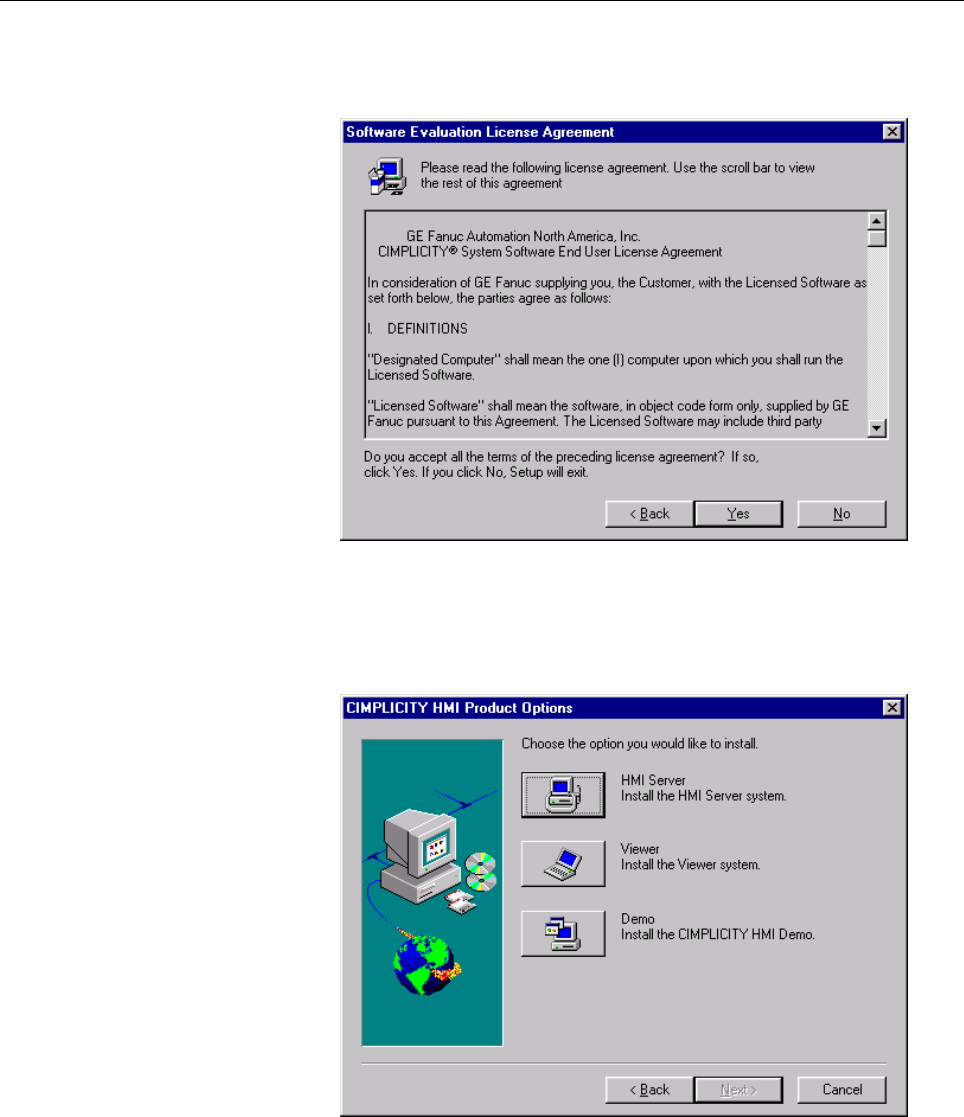

Otherwise, select Next to go to the Software Evaluation License

Agreement dialog box.

Read the software license agreement terms carefully. If you agree with

the terms, select Yes. If not, select No. Selecting No stops the

installation procedure.

Selecting Yes brings you to the CIMPLICITY HMI Product Options

dialog box.
