FANUC i-Cell Operators manual Page 666

Operators manual

Page of 739

/ 739

25/98

SHEET

DESCRIPTION

DESIGN

DATE

EDIT

FANUC LTD.

DRAW.NO.

Matsukura

Newl

istered

TITLE:

FANUC CIMPLICITY i CELL

OPERATOR’S MANUAL

05.05.19

B-75074EN/04-2

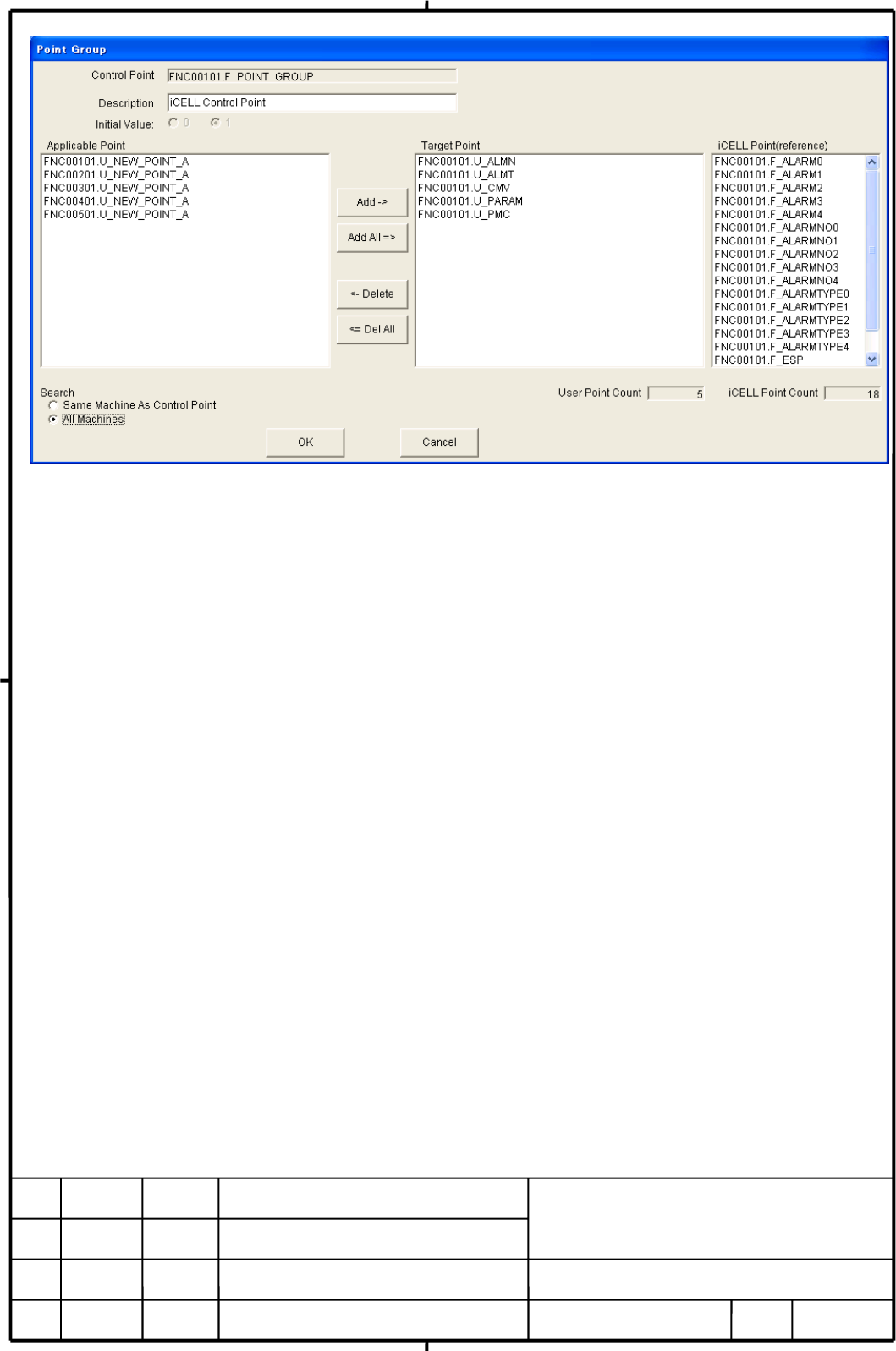

Control Point

Name of the control point.

Description

Allows description of the control point.

Initial Value

Initial value of the control point.

Specify 0 or 1. If the value of the control

point is 1 (True), reading from the points in the

group with the control point is performed. If

the value is 0 (False), reading from the points

in the group is not performed.

Applicable Point

Displays a list of points that can be set with the

control point.

Those points that have already been set with

other control points are not displayed.

Specify the condition for the points that can be

displayed in the Applicable Point area.

Target Point

Displays a list of points to be set with the

control point.

Those points that have already been set are also

displayed.

User Point Count

Number of points to be set with the control

point.

i CELL Point Displays a list of i CELL points currently set
