B-75074EN/04 APPENDIX F.SETTING UP PC

- 573 -

F.1 SETTING UP IIS

This appendix explains how to set up IIS for use by the i CELL Web

function. Once you are finished with installing i CELL, you set up IIS.

NOTE

If the OS is Windows NT, see subsections F.1.1 and

F.1.2 written for Windows NT. If the OS is Windows

2000, see subsections F.1.3 and F.1.4 written for

Windows 2000.

F.1.1 Adding the Access Permission for Directories for Windows NT

The WEB directory is in the directory where i CELL is installed. The

access permission for this directory is given to the "IUSR_ICELL" user

created according to Subsection 2.2.6, "Registering the New User

"IUSR_ICELL" (Web Function) for Windows NT," in Part II,

"Installation."

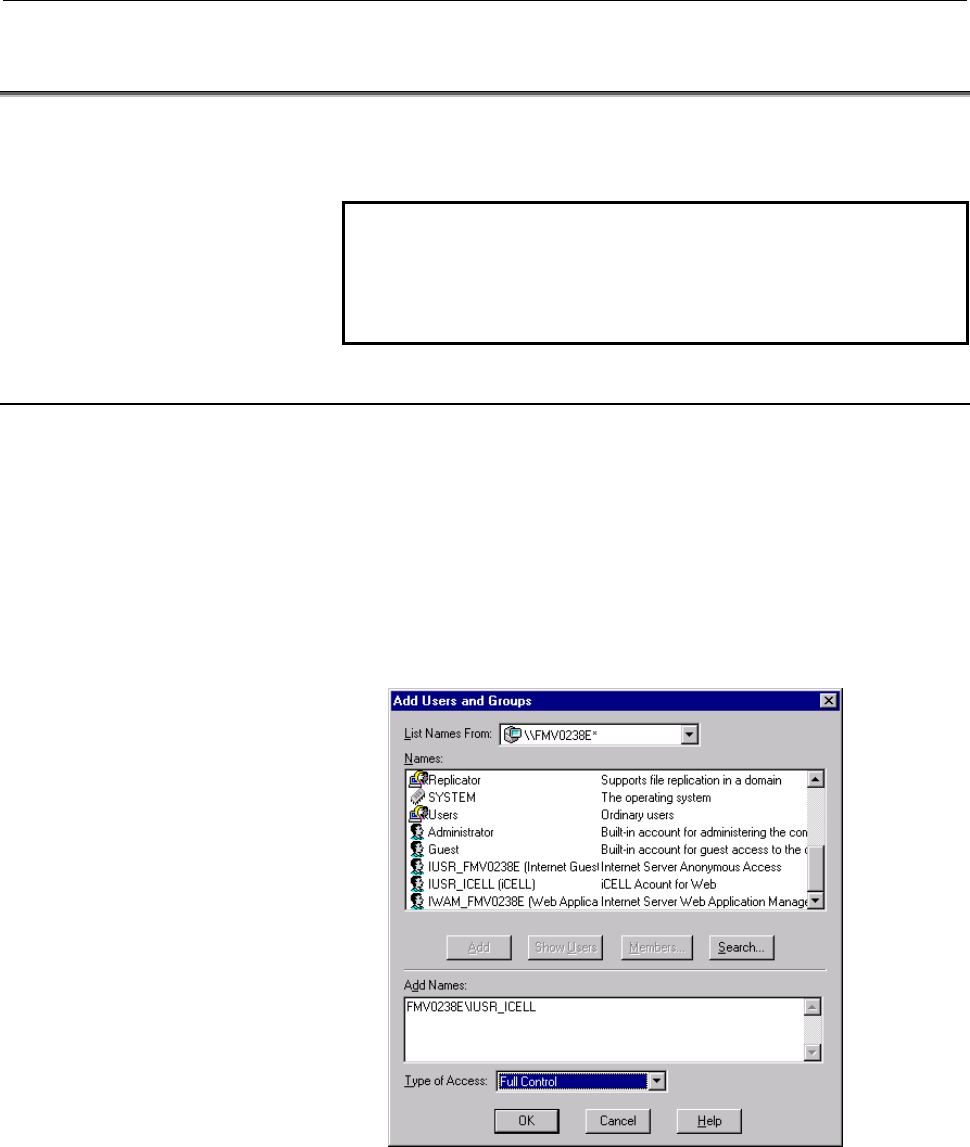

1. Select [Properties] of [WEB Directory] → [Access Permission] of

[Security] → [Add] → [Show Users], and add the "IUSR_ICELL"

user by specifying the type of the access permission as [Full

Control].
