5.BACKUP AND RESTORATION INSTALLATION B-75074EN/04

- 106 -

5.1.4 Starting Backup

Clicking the <Backup> button starts backup.

If a backup file having the same name as specified now already exists,

a prompt message appears to ask whether you want to delete the

existing backup file and create a new one under the specified name.

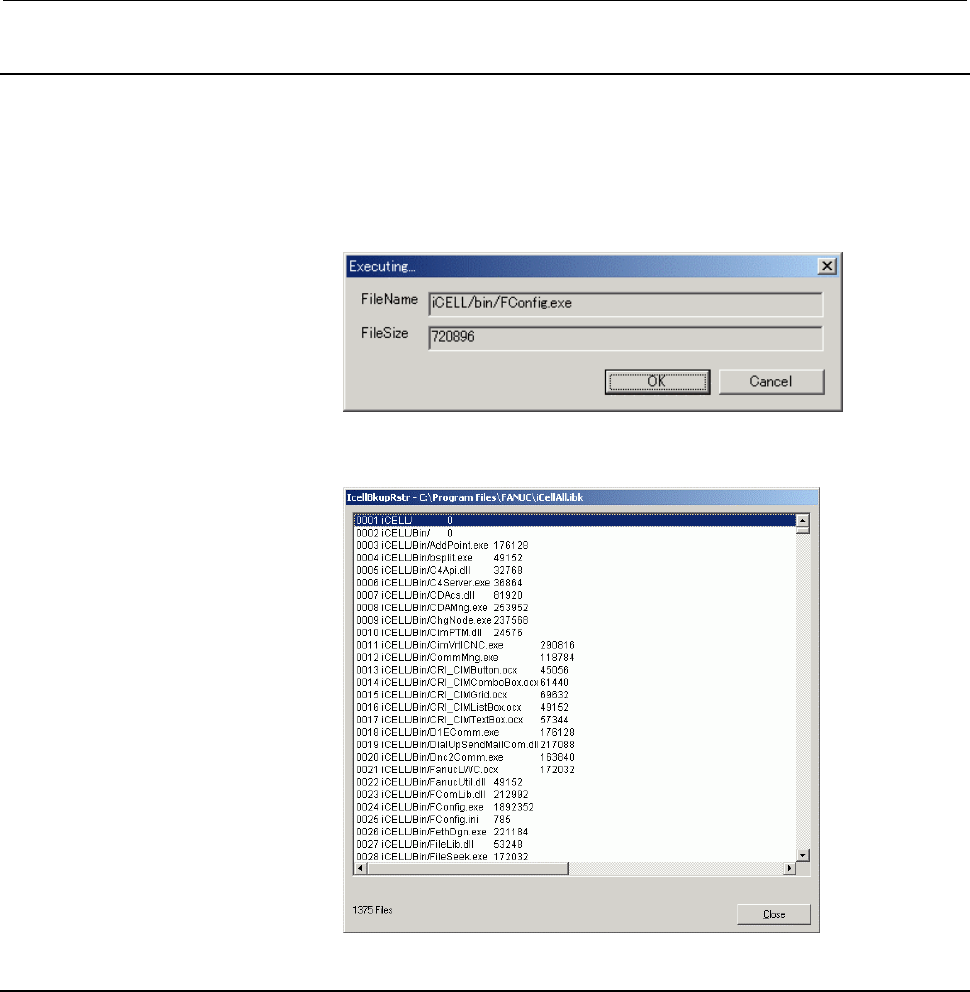

During backup, the following window for indicating the backup file

name appears.

When backup is completed, the following window appears to display

a list of files backed up. Click the <Close> button.

5.1.5 Confirming the Contents of the Backup Archive File

After entering a backup archive file name in the [File Path] text box,

clicking the <Backup File List> button lists the information backed

up.
