FANUC i-Cell Operators manual Page 654

Operators manual

Page of 739

/ 739

13/98

SHEET

DESCRIPTION

DESIGN

DATE

EDIT

FANUC LTD.

DRAW.NO.

Matsukura

Newl

istered

TITLE:

FANUC CIMPLICITY i CELL

OPERATOR’S MANUAL

05.05.19

B-75074EN/04-2

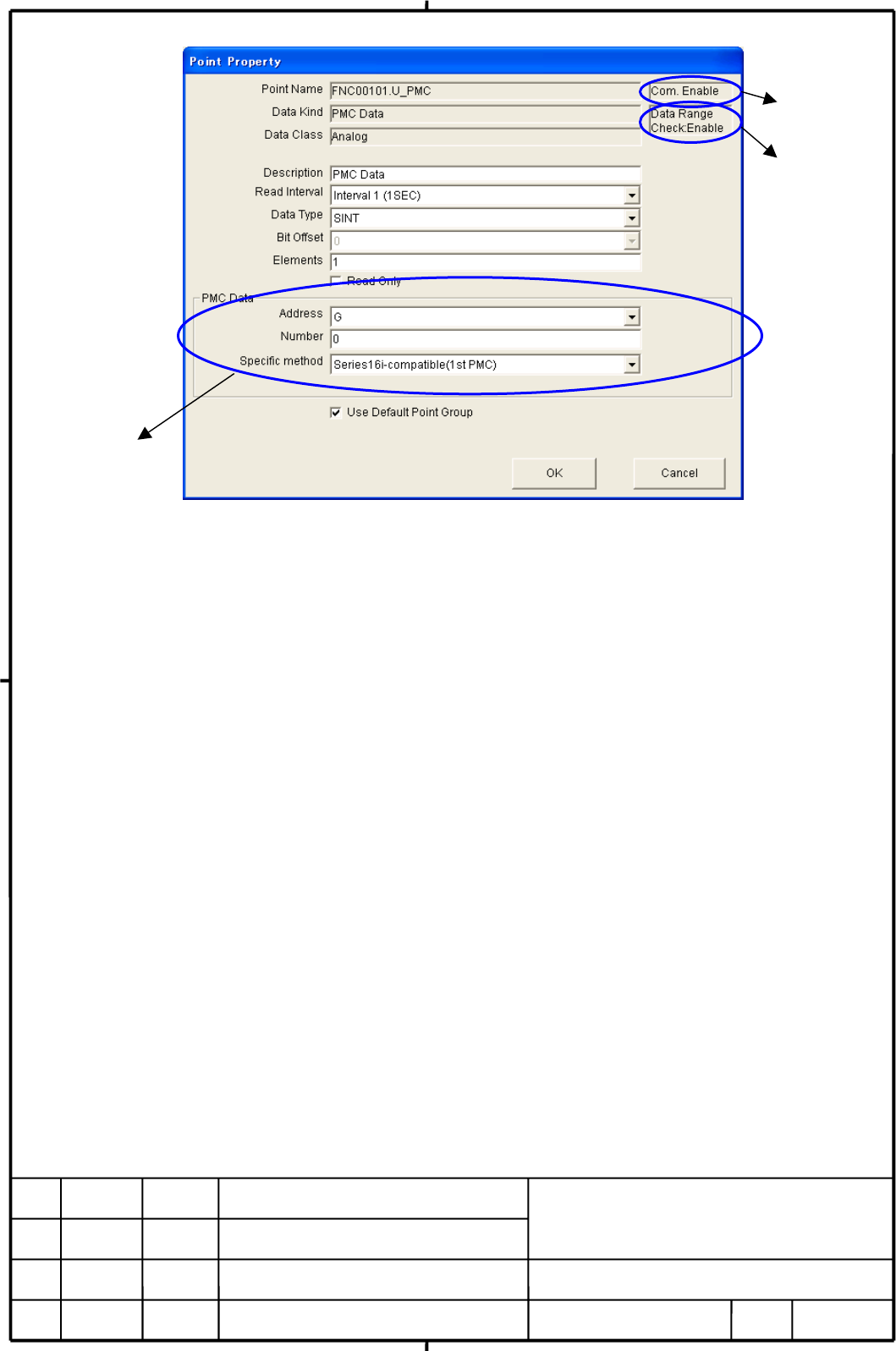

[Point Property]

Point Name

Name of the point to create.

The value set in the Create Point dialog box is

displayed.

Data Kind

Data kind of the point to create.

The value set in the Create Point dialog box is

displayed.

Data Class

Data class of the point to create.

The value set in the Create Point dialog box is

displayed.

Description

Allows description of the point to create.

Read Interval

Select from Interval 1, Interval 2, and Interval 3.

For an explanation of setting each interval, see

Subsection 5.2.1.2, "Setting".

Data Type

Data type of the point to create.

Selectable data types are BOOL, SINT,

USINT, INT, UINT, DINT, UDINT, and

REAL. Depending on the data class selected,

some data types may not be selectable.

Bit Offset

For the BOOL type only, allows specification

of the bit to be referenced with a number

between 0 and 7. For other types, set the bit

Communication

Data range check

Detailed setting

area
