B-75074EN/04 OPERATION 2.SCREEN OPERATION

- 237 -

2.1 ACTIVATING THE i CELL PROJECT

The i CELL screens are created on CIMPLICITY.

Before the i CELL screens can be displayed and executed, the i CELL

project created by FANUC must be operating on CIMPLICITY.

The method of activating the i CELL project is described below.

<1> Choose the [Start] button on the menu of Windows. Next, choose

[Programs], then activate the [iCELL Project] icon of

[CIMPLICITY iCELL].

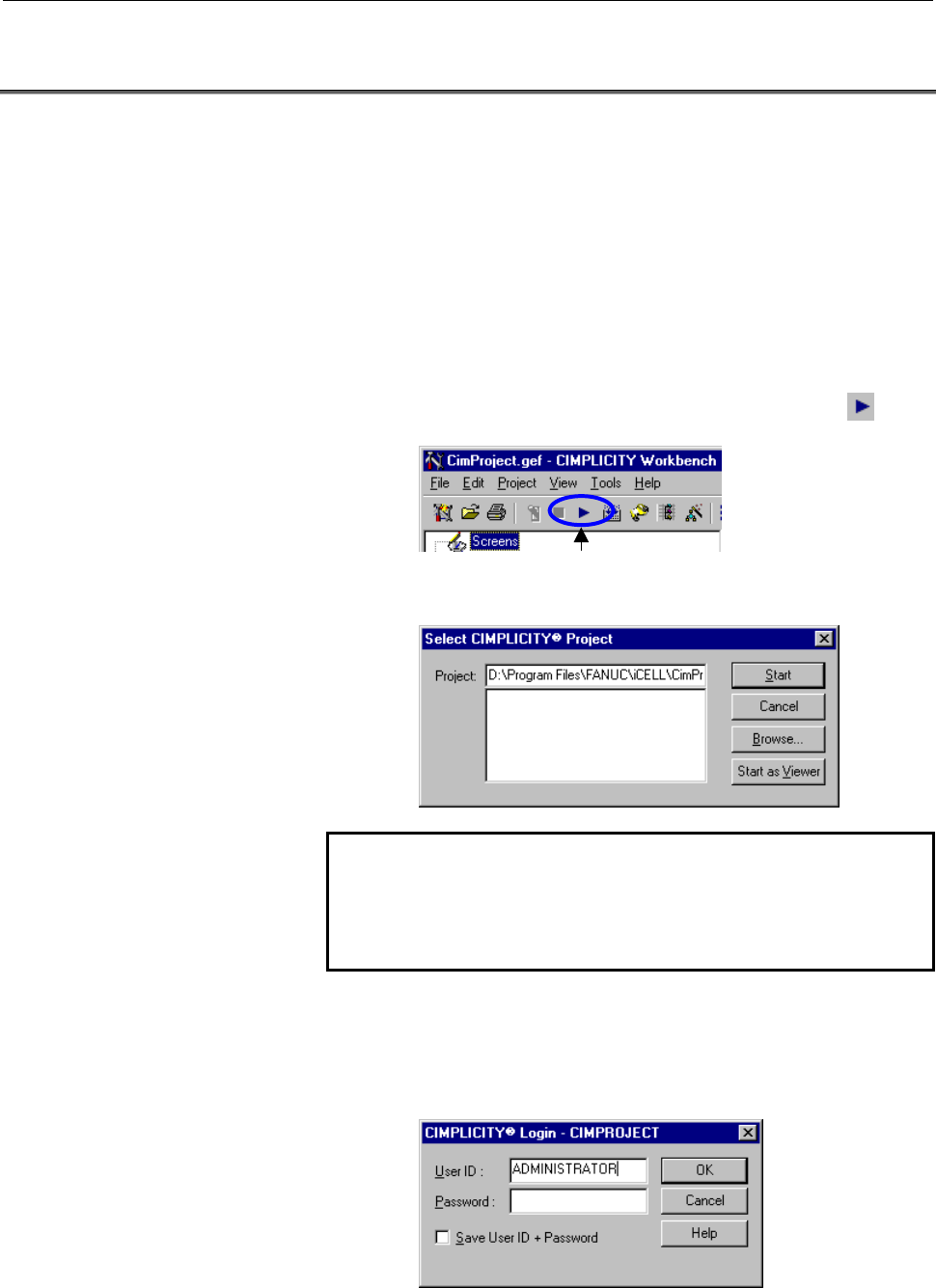

The CIMPLICITY workbench shown below appears.

<2> Check the state of the toolbar on the CIMPLICITY workbench.

(1) When the CIMPLICITY workbench is displayed as shown

below, the

CELL project is terminated. Click the

button

to execute the

CELL project.

When the project selection dialog box appears, click the

<Start> button to start the project.

NOTE

Clicking the Cancel button also displays the main

menu. In this case, however, the CIMPLICITY

project is not started, so that the screen does not

operate normally.

When the i CELL project is activated, the login dialog box

appears. Enter the following information:

User ID: ADMINISTRATOR

Password: None

After user ID and password input, click the <OK> button.

Check here.
