<4> Control point name rule (3) Point-group point

Under [Control point name rule (3) Point-group point], set the point name

rule for Point Group Control Points. The settings cannot be changed if

[Communication setting] is performed. Those items whose settings cannot

be changed are displayed gray.

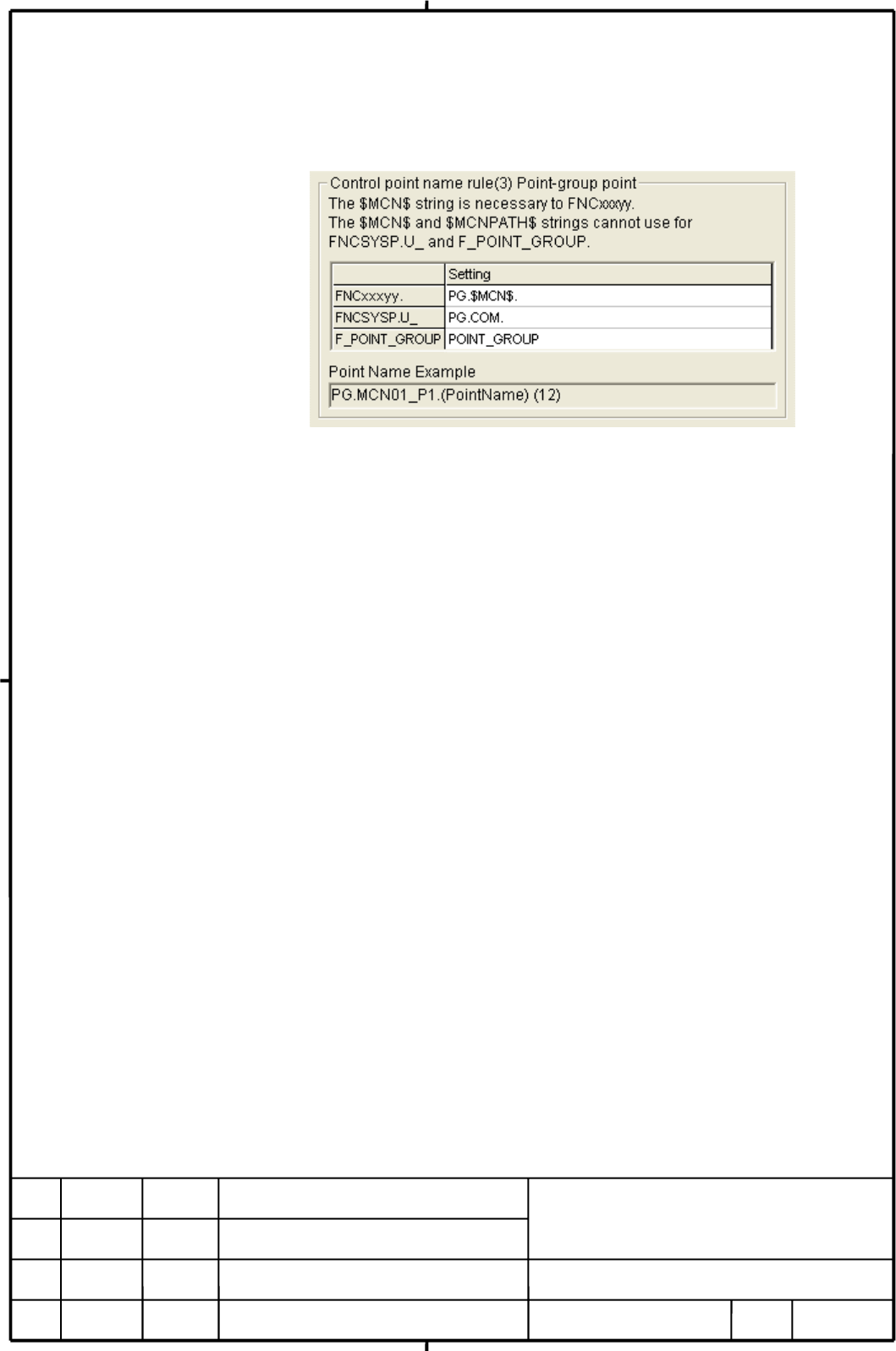

A point name example to be created with the settings is displayed In the

"Point Name Example" area.

In the "Point Name Example" area, the point name resulting from combining

the setting in a cell selected from the "Setting" area with the setting of a path

selected from the "Setting" area for item B under [Rule for data

communication point name] is displayed. Enclosed in parentheses () is the

number of characters of the point name. If the number of characters

permitted for a point name is exceeded, the number is displayed red. If the

<Save> button is clicked in this state, an error message appears, and storage

is canceled; correct the point name rule.
