2.BASIC FUNCTIONS SETTING B-75074EN/04

- 156 -

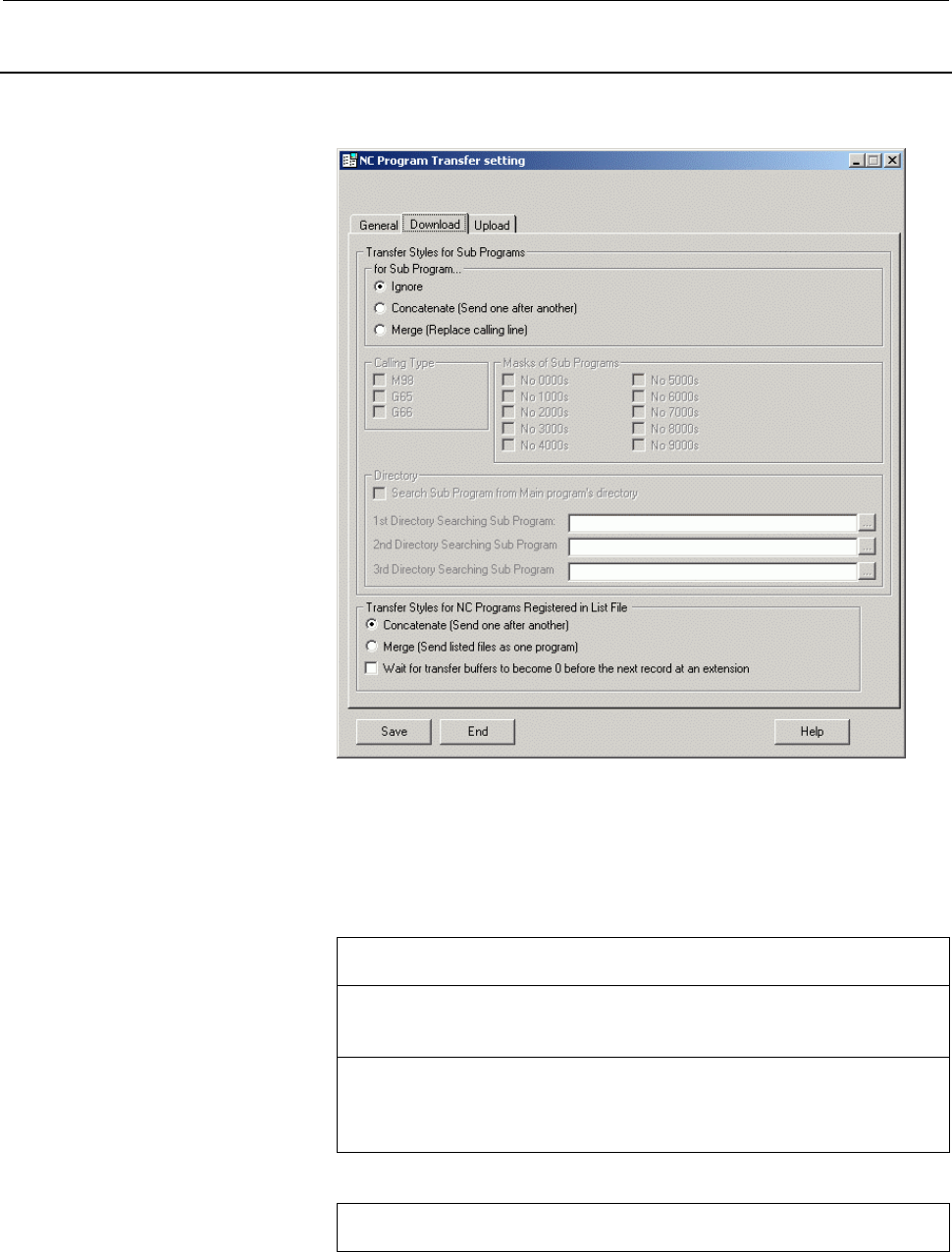

2.7.3 Download Tab

Download tab is displayed only if Reader/Puncher or

FOCAS2/Ethernet is used for communication protocol.

The Download tab lets you specify downloading. The setting items of

this tab are explained below:

Transfer Styles for Sub Programs frame

The “for Sub Program...” frame lets you specify a transmission method

for subprograms.

Ignore

Subprograms are not sent. Only specified NC programs

are downloaded.

Concatenate

(Send one

after another)

The main program is searched for subprogram calls.

Subprograms are sent after the main program is sent.

Merge

(Replace

calling line)

The main program is searched for subprogram calls. When

the main program is being sent, subprograms are

embedded in the main program so that they can be sent

together with the main program.

Next, subprogram transmission is set up.

Calling Type

The code to be used for subprogram calling can be set up.

M98, G65, and G66 can be combined for setting.
